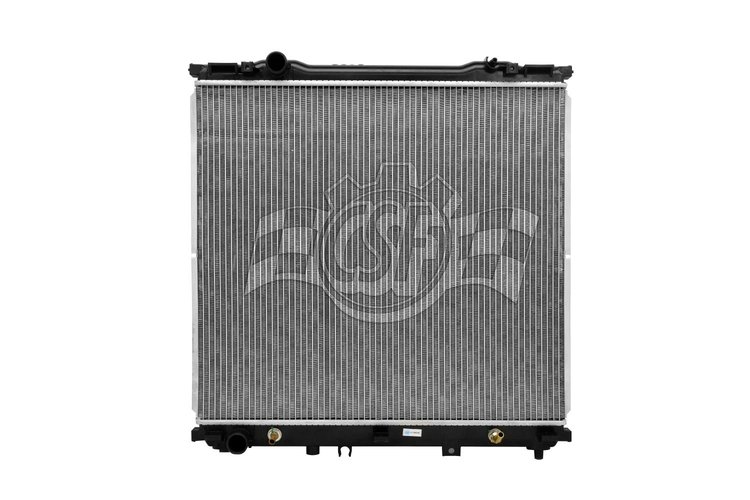

CSF Radiators 3191 Features:

• OEM specified Plastic Tank-Aluminum Core Construction
• Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability
• Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F
• Tubes - Welded Type or Latest Generation "B-Tube" Design
• Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
• 100% leak tested before leaving factory at 150% of operating pressure
• Industry Best Packaging - "10 Foot Drop Test" Standard
• Drop-in Fit
• High Performance Transmission Cooler with special Built-in Turburlator, when applicable
• All components are installed, torqued, & tested on Radiator during assembly
• Tech Note: O.E.M. style Plastic tanks & Aluminum core.
• Cap Included: No
• Down Flow Or Cross Flow Type: Down Flow
• Tank Material: Plastic
• Core Material: Aluminum
• Oil Cooler (in): 15 1/16 (high-effeciency Concentric Type)
• Radiator Core Row Quantity: 1
• Outlet Diameter: 1 3/8 Left in.
• Inlet Diameter: 1 3/8 Left in.
• Outlet Width (in): 1 5/8
• Outlet Length (in): 24 15/16
• Inlet Width (in): 1 5/8
• Inlet Length (in): 24 15/16
• Core Thickness: 7/8 in.
• Core Width: 25 1/8 in.
• Core Length: 22 11/16 in.
