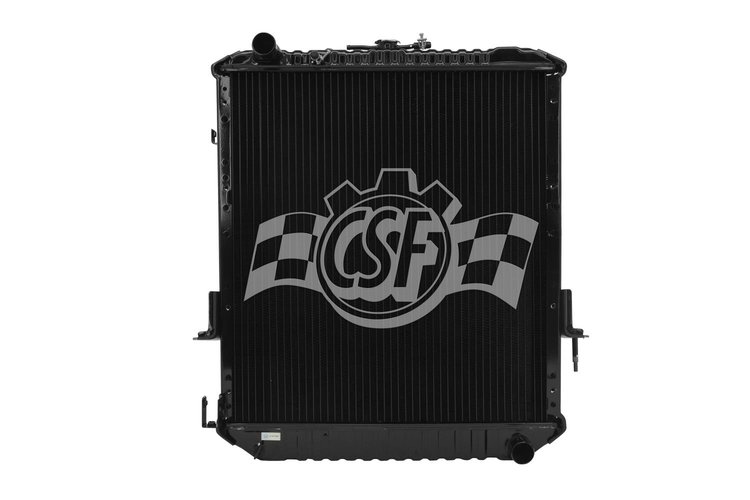

CSF Radiators 3243 Features:

• OEM specified Copper-Brass Construction
• Easy to recore & repair
• No risk for coolant contamination and damage to sensitive seals, water pump & thermostat
• OEM specified "Single Piece - Deep Drawn" Brass Tanks with Ribs for added Strength & Durability
• Tubes - Special coated OEM specified "Double Lock Seam Joints" for Long Life
• Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
• Side Channels - Coated Steel for Strength & Durability
• Reinforced Inlet & Outlet Connections with "Thru Pipe Design"
• 100% leak tested before leaving factory at 150% of operating pressure
• Industry Best Packaging - "10 Foot Drop Test" Standard
• Drop-in Fit
• Built for OEM Cooling - High Performance Transmission Cooler with special Built-in Turbulators
• All components are installed, torqued & tested on Radiator during assembly
• Tech Note: ALL METAL Heavy Duty Multifit model with heater pipe & sensor port on top tank.
• CSF Cap Number: 4503
• Cap Included: No
• Down Flow Or Cross Flow Type: Down Flow
• Tank Material: Brass
• Core Material: Copper
• Oil Cooler (in): 14 3/8 (high-effeciency Concentric Type)
• Radiator Core Row Quantity: 3
• Outlet Diameter: 1 1/2 Right in.
• Inlet Diameter: 1 1/2 Left in.
• Outlet Width (in): 2
• Outlet Length (in): 22 3/16
• Inlet Width (in): 2
• Inlet Length (in): 22 3/16
• Core Thickness: 1 11/16 in.
• Core Width: 21 5/8 in.
• Core Length: 23 1/4 in.
