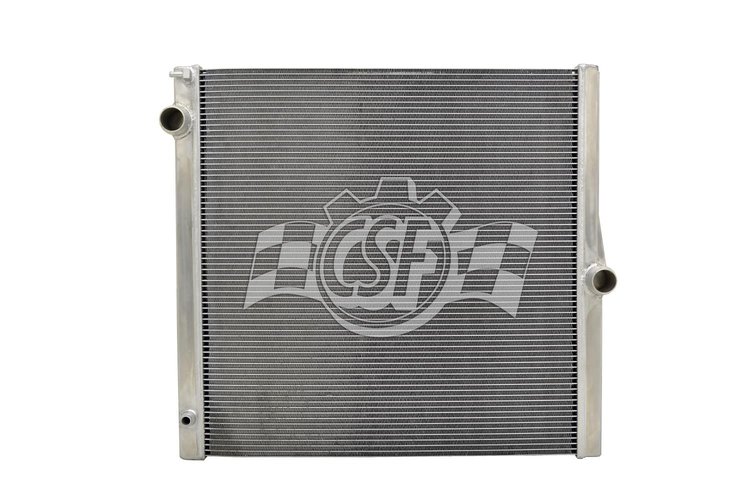

CSF Radiators 3522 Features:

• 100% OE style & OE specs for "Dop-in fit"
• Pre-installed & tested drain plug
• 100% Hydrostatic tested at 1.5 times operating pressure
• Tech Note: O.E.M. style All Aluminum tanks & core model;with quick-connect inlet & outlet pipe.
• Cap Included: No
• Down Flow Or Cross Flow Type: Cross Flow
• Tank Material: Aluminum
• Core Material: Aluminum
• Radiator Core Row Quantity: 1
• Outlet Diameter: 1 1/2 Right in.
• Inlet Diameter: 1 1/2 Left in.
• Outlet Width (in): 1 7/16
• Outlet Length (in): 23 15/16
• Inlet Width (in): 1 7/16
• Inlet Length (in): 23 15/16
• Core Thickness: 1 1/4 in.
• Core Width: 23 3/8 in.
• Core Length: 22 5/8 in.
