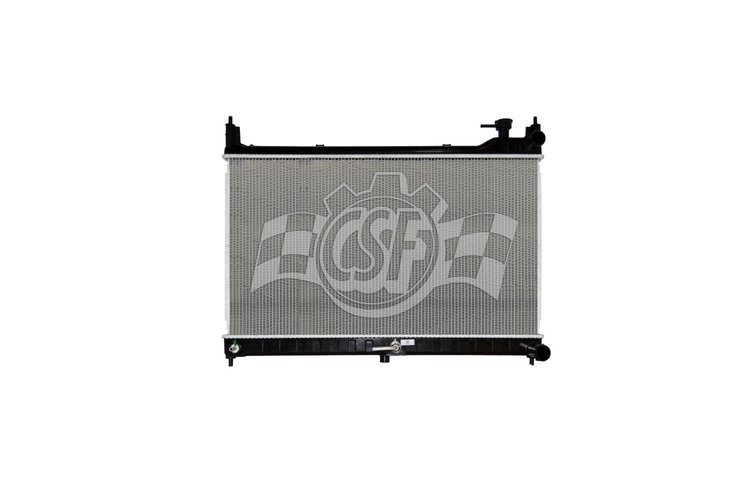

CSF Radiators 3886 Features:

• OEM specified Plastic Tank-Aluminum Core Construction
• Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability
• Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120°F
• Tubes - Welded Type or Latest Generation "B-Tube" Design
• Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
• 100% leak tested before leaving factory at 150% of operating pressure
• Industry Best Packaging - "10 Foot Drop Test" Standard
• Drop-in Fit
• High Performance Transmission Cooler with special Built-in Turburlator, when applicable
• All components are installed, torqued, & tested on Radiator during assembly
• Inlet Diameter: 1 3/8 Right in.
• Tech Note: O.E.M. style Plastic tank & Aluminum core.
• Tank Material: Plastic
• Cap Included: No
• Outlet Width (in): 1 5/8
• Outlet Length (in): 29 1/2
• Oil Cooler (in): 14 3/4 (high-efficiency Plate Type)
• Radiator Core Row Quantity: 1
• Inlet Width (in): 1 5/8
• Inlet Length (in): 29 1/2
• Down Flow Or Cross Flow Type: Down Flow
• Core Width: 28 11/16 in.
• Core Thickness: 5/8 in.
• Core Material: Aluminum
• Core Length: 16 1/8 in.
• Outlet Diameter: 1 3/8 Right in.
