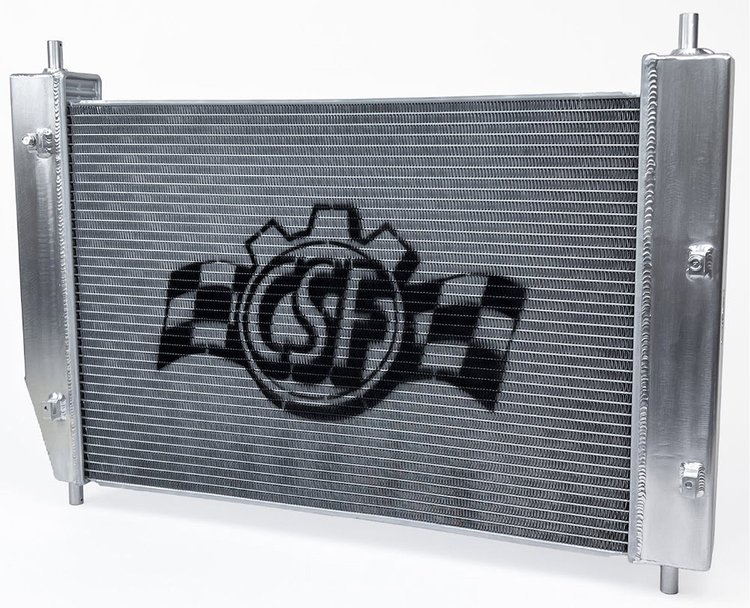

7223 High-Performance All-Aluminum Radiator for 2006-2013 Chevy C6 Corvette
Items You Need
CSF Radiators 7223 High-Performance All-Aluminum Radiator Features:
- 193% larger 2-Row 52 mm Ultra-High-Performance Core
- Cooling Tubes with B-Tube Technology
- Design improves the core's ability to dissipate heat by approximately 15% over regular oval welded tubes
- Same specifications as the factory radiator, allowing for a simple plug-and-play installation
- Built-in engine oil cooler is a high-flow 4-plate design with low-pressure drop characteristics
- Automatic transmission cooler is a super high-efficiency 6-plate design for maximum heat dissipation suitable for all motorsports applications
- Shorter core height provides clearance for supercharger installations
- No need to modify the radiator core support or trim the radiator
- Fits all OEM and Aftermarket Intake Systems
- 100% All Aluminum TIG-Welded Construction
- Individually Leak and Pressure Tested
- Hand Brushed Satin Finish
CSF Radiators 7223 High-Performance All-Aluminum Radiator Replaces OEM Numbers:
- 10353889, 15145946, 21996495, 10353890, 20873508, 25861236
High Performing, High-Efficiency Aluminum Radiators
CSF High-Performance Radiators are 100-percent all-aluminum TIG-welded construction for weight savings and premium cooling, suitable for street and race-oriented applications. These radiators feature a large surface area, ultra-efficient fins, and optimum flowing cores delivering significantly increased cooling capacity. They have true drop-in fitment per specific application, so no modifications are required for installation. Available for popular domestic and foreign vehicles.
