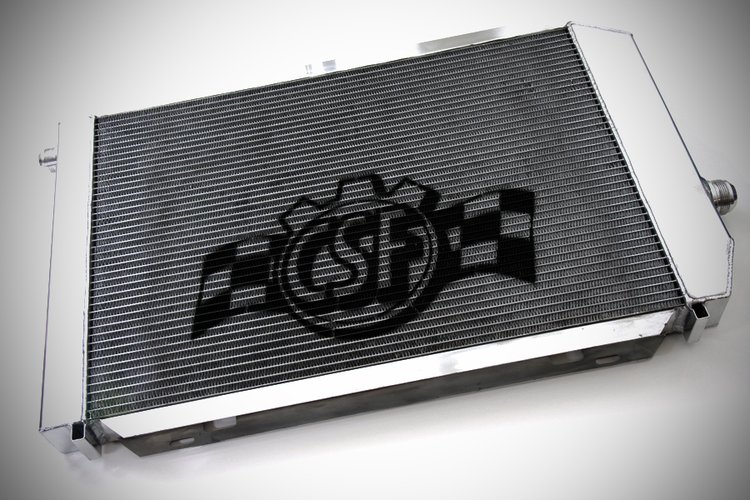

CSF Radiators 8023 Features:

CSF manufactures the most advanced and efficient radiator in the industry for your Vehicle. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

• CNC Machined Mounting Brackets
• Triple-Pass Flow Configuration Allows Coolant to Flow Across the Core Three Times Before Exiting for Lowest Outlet Temperatures Possible
• 2-Row 52mm Ultra High-Performance Core
• 8mm Tall Multi-Louvered Fins with CSF's Exclusive B-Tube Technology
• Track Tested and Proven by Formula Drift Champion, Michael Essa
• Individually Leak Tested
• All CSF High-Performance Radiators Undergo a Rigorous Testing Process During Development, Including Burst Pressure, Thermal Cycle, Vibration Testing, and Salt Spray Testing
• 100% All Aluminum TIG-Welded Construction
• -AN Fittings
• True "Drop-in" Fit With No Modifications Necessary for Installation
• Smooth Satin Finish
• Black Powder-Coated Core for Thermal Rejection
• 29.3"L x 19.1"H x 2.55"W (not including an fittings)
• Universal Fit Allows for Mounting in Multiple Different Configurations
• Perfect for V-Mount Turbocharged Setups
• Core Material: Aluminum
