CSF Radiators 8233B Features:

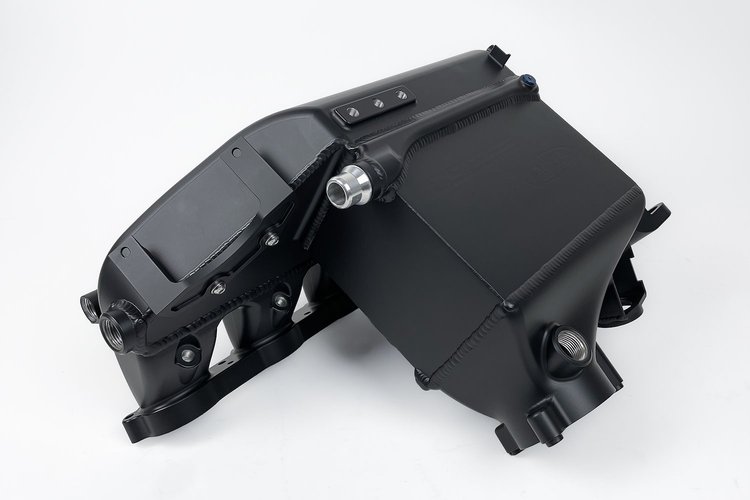

With the larger and more efficient intercooler performance, lower pressure drop, included fuel rail & kit for top feed port injection, and other industry-leading features, the CSF Level-Up Manifold allows S58 owners to maximize performance.

• Reduced Intake Air Temperatures (IATs) compared to OEM
• Integrated port injection with fuel rail (provided with block-off bungs if not running port injection)
• Integrated nitrous ports (provided with block-off bungs if not running nitrous)
• Integrated hose stand-offs for proper routing of EVAP hoses across manifold
• Integrated coolant reservoir mounting locations on rear of manifold for perfect fitment
• Various wire harness provisions for perfect routing of wiring harness around manifold
• Integrated bleeder screw
• OEM teeth on intake manifold flange for secure seating of gaskets
• Machined coolant hose quick connects
• Removable machined engine cover pin for perfect fitment with engine cover
• Thermal Black Heat Dispersion Powder-Coating Finish
• Less pressure drop compared to OEM core
• All necessary brackets, hardware, and instructions to install
• Limited
• Ultra strong CNC Billet construction replaces weak plastic tanks with crimped-on gasket sealing core
• High performance bar/plate intercooler core by PWR pressure tested to 120psi
• KYLEX thermal spacer for the best resistance to heat soak of the manifold.
• Perimeter pad machined into top of intake manifold for up to 3 additional sensors
• Rear of the intake manifold has been clearance for easy access to the engine oil filter
• CNC front wire harness bracket for OEM fitment and slotted easy installation
• Upper crank case ventilation adapter and Lower crank case ventilation adapter
• Core Material: Aluminum

CSF Radiators 8233B Emissions:

This aftermarket intercooler does not require a CARB EO# because:

1. It is functionally identical to the original equipment part it is replacing
2. It does not degrade the emissions performance of the vehicle
3. It will be installed in accordance with the manufacturer's instructions
4. It does not modify or alter any emissions control system components

It does not result in the vehicle exceeding applicable emissions standards. It is still the responsibility of the vehicle owner to ensure that the replacement intercooler is compliant with all applicable emissions regulations. It is also their responsibility to ensure that it is installed in accordance with the manufacturer’s instructions.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
