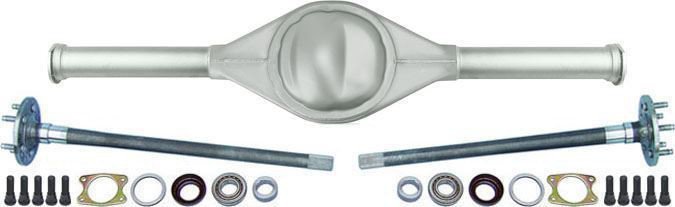

Currie Enterprises CE-UHD58INX Ford 9 in. Housing and Axle Package Features:

• Pinion centered Centurion notchback housing with flush-mount drain plug
• .188 in. thick, 3 in. diameter axle tubes
• CNC machined billet steel housing ends are late model Ford Torino large bearing and can be used with internal or external axle seals
• 1541 Alloy axles are 31-spline with 2 1/2 in. brake space (axle offset)
• Drilled for 5 on 4 1/2 in. and 5 on 4 3/4 in. bolt pattern with 7/16 in. and 1/2 in. wheel studs included (shipped loose)
• Tapered axle bearings (shipped loose)
• Full-circle heavy-duty bearing retainers provide positive bearing retention and full axle seal engagement

Currie Enterprises CE-UHD58INX Ford 9 in. Housing and Axle Package Notes:

• Requires Assembly of Components
• Universal 9-inch rearends do not include vehicle specific suspension or shock mounting brackets
• Currie crate rearends conform to the ABCS (Aftermarket Brake Configuration Standard)  ABCS brakes use a 2.5 in. brake space, late-model big bearing Ford housing ends, and a 2.80 in. center hole in the drum or rotor
• Uses a 9 in. Ford Center Section (sold separately) or equivalent
