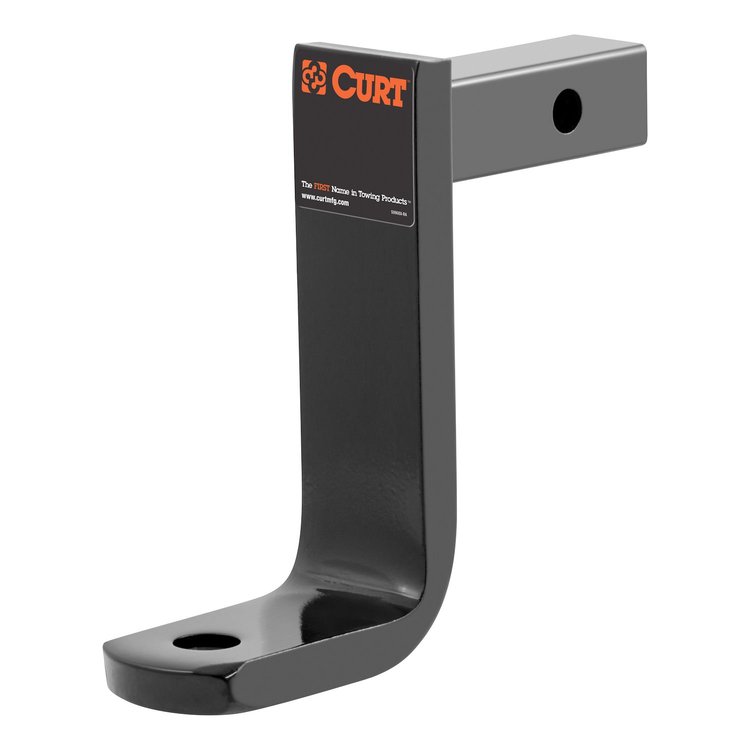

Lowest Price GuaranteeClass 1 Ball Mount
Class 1 Ball Mount6" Drop 4-5/8" Rise 1-1/4" Receiver 5-9/16" Length 3/4" Ball Hole 2000lbs Gross Trailer Weight 200lbs Tongue Weight
CURT HITCHES 45028 Features:
CURT class 1 ball mounts are designed for a variety of lightweight towing applications. For basic utility trailers, canoe haulers and other light-duty trailers, a class 1 ball mount gets the job done. CURT class 1 ball mounts are designed to complement our class 1 trailer hitches and come in several different styles, offering a range of shank lengths and drop and rise options. A class 1 ball mount is typically used on compact cars, full-size cars, minivans and crossover SUVs, but it can be used on virtually any trailer hitch with a 1-1/4" x 1-1/4" receiver tube (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This class 1 ball mount features a gross trailer weight capacity of 2,000 lbs. and a tongue weight capacity of 200 lbs. It has a length of 5-9/16", a drop of 6" and a rise of 4-5/8". CURT ball mounts, like our trailer hitches, are built to last. They are made from quality steel that is CNC-formed and robotically welded to be an exact fit for your receiver hitch. To protect our class 1 ball mounts from corrosion, UV damage and scratches, we coat each one in a powder coat of high-gloss black for a sharp finish.- Curt Black Powdercoated Ball Mounts fit ALL matching receiver hitches and accept ALL hitch balls with a matching shank. Almost every ball mount is reversible and will raise or lower the ball to the level you need for towing. They are CNC-formed with robotic welds, mechanically descaled, and powdercoated black.
- Ball Mounts Are Reversible (Not Recommended On Some Applications Due To Ground Clearance Issues)
- CNC Construction With Robotic Welds
- Durable Black Powder Coating
Features
Part TypeTrailer Hitch Ball Mount
Product LineCurt Black Powder Coated Ball Mounts
BrandCURT
Package Height2.3
Package Width4.4
Package Length10.2
Weight5.08 PG
Part CategoryAccessories
StyleFixed
Overall Length5.563 in (141.3 mm)
Part FitmentUniversal
Rise4.625 in (117.5 mm)
Drop6 in (152.4 mm)
Vendor Part Number45028
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
