Vehicle Info NeededCURTPART NUMBER: 229-45030

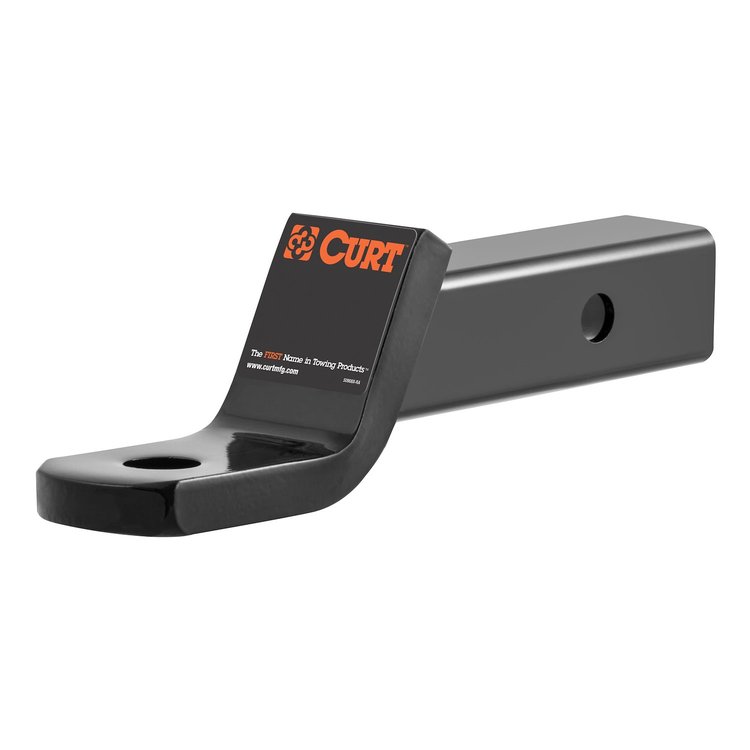

Class 3 Ball Mount 2" Drop
$1574
Ships on Sep 14, 2026
Lowest Price GuaranteeClass 3 Ball Mount
Class 3 Ball Mount2" Drop 3/4" Rise 2" Receiver 8-1/4" Length 1" Ball Hole 7500lbs Gross Trailer Weight 750lbs Tongue Weight
CURT HITCHES 45030 Features:
CURT class 3, or standard-duty, ball mounts are a step up from classes 1 and 2. They feature a 2" x 2" shank and have a higher weight capacity for towing heavy-duty trailers, including utility trailers, boat trailers, campers, single-horse livestock trailers and most recreational vehicle trailers. With class 3 trailer hitches being the most common type of trailer hitch for pickup trucks and SUVs, the class 3 ball mount, by association, is an excellent complement to this trailer hitch and these larger vehicles (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This particular class 3 ball mount has a gross trailer weight capacity of 7,500 lbs. and a tongue weight capacity of 750 lbs. It features a length of 7-1/2", a drop of 2" and a possible rise of 3/4". Class 3 ball mounts are CNC-formed and robotically welded to ensure unwavering precision and dependable strength in each and every unit. We mechanically descale each one to provide a smooth surface for a long-lasting finish. This class 3 ball mount comes with a durable gloss black powder coat finish to protect against corrosion, scratches, UV damage and more to give it the thick skin it needs to face the road ahead.- Curt Black Powdercoated Ball Mounts fit ALL matching receiver hitches and accept ALL hitch balls with a matching shank. Almost every ball mount is reversible and will raise or lower the ball to the level you need for towing. They are CNC-formed with robotic welds, mechanically descaled, and powdercoated black.
- Ball Mounts Are Reversible (Not Recommended On Some Applications Due To Ground Clearance Issues)
- CNC Construction With Robotic Welds
- Durable Black Powder Coating
Features
Part TypeTrailer Hitch Ball Mount
Product LineCurt Black Powder Coated Ball Mounts
BrandCURT
Package Height2.0
Package Width2.3
Package Length11.6
Weight5.89 PG
Part CategoryAccessories
StyleFixed
Overall Length8.125 in (206.4 mm)
Part FitmentUniversal
Rise2 in (50.8 mm)
Drop2 in (50.8 mm)
Vendor Part Number45030
Package Qty1
Package TypeEA
No Questions
No Reviews
Items You Need
Some parts are not legal for use in California or other states with similar laws / regulations
