Vehicle Info NeededCURTPART NUMBER: 229-45070

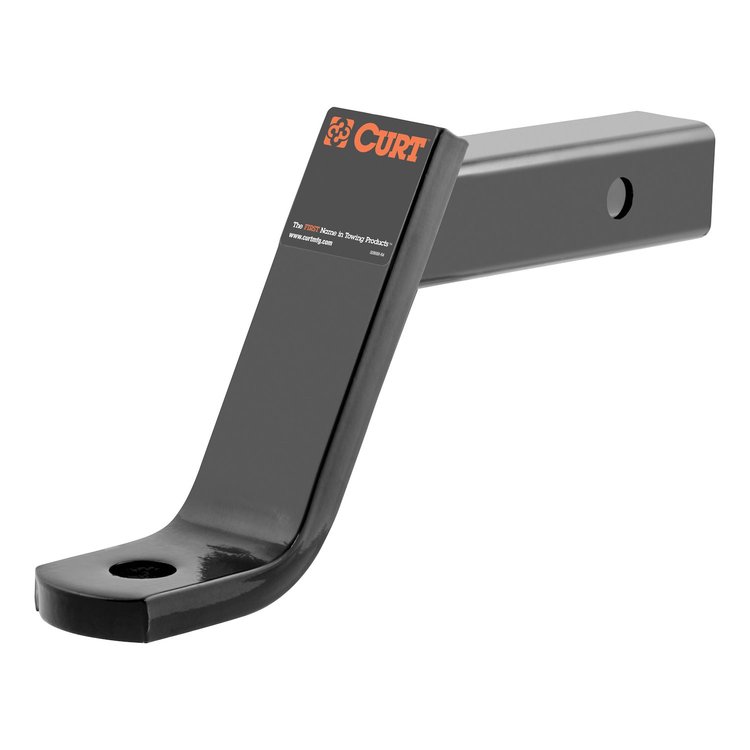

Class 3 Ball Mount 6" Drop
$2793
Ships on Sep 15, 2026
Lowest Price GuaranteeClass 3 Ball Mount
Class 3 Ball Mount6" Drop 4" Rise 2" Receiver 9-1/4" Length 1" Ball Hole 7500lbs Gross Trailer Weight 750lbs Tongue Weight
CURT HITCHES 45070 Features:
CURT class 3, or standard-duty, ball mounts are a step up from classes 1 and 2. They feature a 2" x 2" shank and have a higher weight capacity for towing heavy-duty trailers, including utility trailers, boat trailers, campers, single-horse livestock trailers and most recreational vehicle trailers. With class 3 trailer hitches being the most common type of trailer hitch for pickup trucks and SUVs, the class 3 ball mount, by association, is an excellent complement to this trailer hitch and these larger vehicles (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This particular class 3 ball mount can be used in the drop position to provide a drop of 6", a gross trailer weight capacity of 7,500 lbs. and a tongue weight capacity of 750 lbs. It can also be flipped to provide a rise of 4", a gross trailer weight capacity of 6,000 lbs. and a tongue weight capacity of 600 lbs. It features a length of 9-1/4". Class 3 ball mounts are CNC-formed and robotically welded to ensure unwavering precision and dependable strength in each and every unit. We mechanically descale each one to provide a smooth surface for a long-lasting finish. This class 3 ball mount comes with a durable gloss black powder coat finish to protect against corrosion, scratches, UV damage and more to give it the thick skin it needs to face the road ahead.Part TypeTrailer Hitch Ball Mount
BrandCURT
Package Height3.2
Package Width10.6
Package Length14.2
Weight8.26 PG
Part CategoryAccessories
StyleFixed
Overall Length8.25 in (209.6 mm)
Part FitmentUniversal
Rise4 in (101.6 mm)
Drop6 in (152.4 mm)
Vendor Part Number45070
Package Qty1
Package TypeEA
