Vehicle Info NeededCURTPART NUMBER: 229-45112

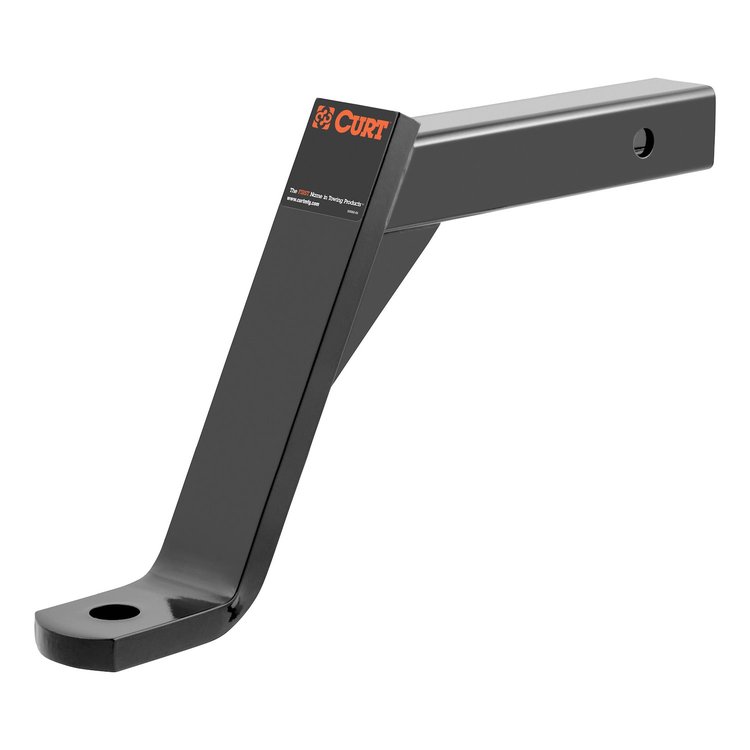

Class 3 Ball Mount 10" Drop
$5299
More than 10 available
Ships Today
Lowest Price GuaranteeClass 3 Ball Mount
Class 3 Ball Mount10" Drop 8" Rise 2" Receiver 14" Length 1" Ball Hole 5000lbs Gross Trailer Weight 500lbs Tongue Weight
CURT HITCHES 45112 Features:
CURT class 3, or standard-duty, ball mounts are a step up from classes 1 and 2. They feature a 2" x 2" shank and have a higher weight capacity for towing heavy-duty trailers, including utility trailers, boat trailers, campers, single-horse livestock trailers and most recreational vehicle trailers. With class 3 trailer hitches being the most common type of trailer hitch for pickup trucks and SUVs, the class 3 ball mount, by association, is an excellent complement to this trailer hitch and these larger vehicles (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This particular class 3 ball mount can be used in the drop position to provide a drop of 10", a gross trailer weight capacity of 5,000 lbs. and a tongue weight capacity of 500 lbs. It can also be flipped to provide a rise of 8", a gross trailer weight capacity of 3,500 lbs. and a tongue weight capacity of 350 lbs. It features a length of 14". Class 3 ball mounts are CNC-formed and robotically welded to ensure unwavering precision and dependable strength in each and every unit. We mechanically descale each one to provide a smooth surface for a long-lasting finish. This class 3 ball mount comes with a durable gloss black powder coat finish to protect against corrosion, scratches, UV damage and more to give it the thick skin it needs to face the road ahead.- Curt Black Powdercoated Ball Mounts fit ALL matching receiver hitches and accept ALL hitch balls with a matching shank. Almost every ball mount is reversible and will raise or lower the ball to the level you need for towing. They are CNC-formed with robotic welds, mechanically descaled, and powdercoated black.
- Ball Mounts Are Reversible (Not Recommended On Some Applications Due To Ground Clearance Issues)
- CNC Construction With Robotic Welds
- Durable Black Powder Coating
Features
Part TypeTrailer Hitch Ball Mount
Product LineCurt Black Powder Coated Ball Mounts
BrandCURT
Package Height3.0
Package Width11.0
Package Length18.0
Weight14.0 PG
Part CategoryAccessories
StyleFixed
Overall Length10.25 in (260.4 mm)
Part FitmentUniversal
Rise8 in (203.2 mm)
Drop10 in (254 mm)
Vendor Part Number45112
Package Qty1
Package TypeEA
