Vehicle Info NeededCURTPART NUMBER: 229-45134

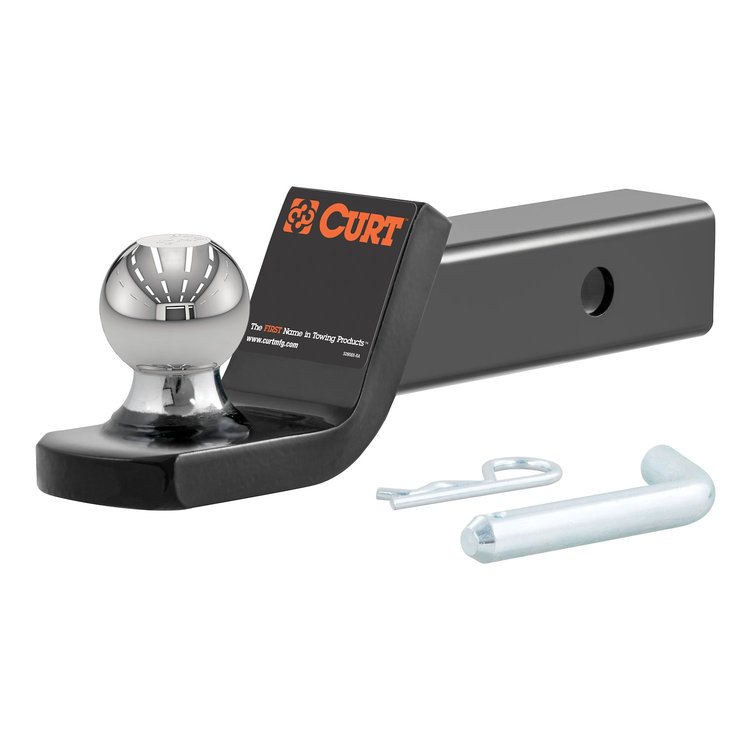

Class 3 Fusion Ball Mount 2" Welded-On Ball
$2801
More than 10 available
Ships on Sep 08, 2026
Lowest Price Guarantee2" Drop
Class 3 Fusion Ball Mount2" Welded-On Ball 2" Drop 7-1/2" Length 7,500lbs Gross Trailer Weight 750lbs Tongue Weight
CURT HITCHES 45134 Features:
Arm yourself with confidence with a CURT Fusion ball mount. Much like our loaded ball mounts, CURT Fusion mounts come with a trailer ball pre-attached to the mounting platform to provide a ready-to-tow solution right out the package. Unlike a loaded ball mount, however, a Fusion ball mount features a trailer ball that is permanently fixed to the shank structure, making it stronger than a traditional non-welded ball mount. With their fixed tow ball, Fusion ball mounts are also very similar to our Euro Mount ball mounts. Besides increased strength, one advantage of a permanently attached trailer ball is that it can never be loosened or stolen from your vehicle. CURT Fusion ball mounts come with 2" x 2" shanks and include a pin and clip with each unit. This particular Fusion mount features a gross trailer weight capacity of 7,500 lbs. and a tongue weight rating of 750 lbs. It measures 7-1/2" long, has 2" of drop and comes with a 2" diameter trailer ball. CURT Fusion ball mounts are great for towing most standard size trailers, including utility trailers, livestock trailers, boat trailers and campers (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Each unit is robotically welded to ensure accurate, consistent cuts and clean, strong weld lines. Once welded, these ball mounts undergo a cleaning process that creates a flawless surface for the application of our highly durable gloss black powder coat finish for long-lasting resistance to corrosion and chipping.Part TypeTrailer Hitch Ball Mount
BrandCURT
Package Height2.7
Package Width4.5
Package Length12.5
Weight8.29 PG
Part CategoryAccessories
StyleFixed
Overall Length7.5 in (190.5 mm)
Part FitmentUniversal
RiseN/A
Drop2 in (50.8 mm)
Vendor Part Number45134
Package Qty1
Package TypeEA
