Vehicle Info NeededCURTPART NUMBER: 229-45296

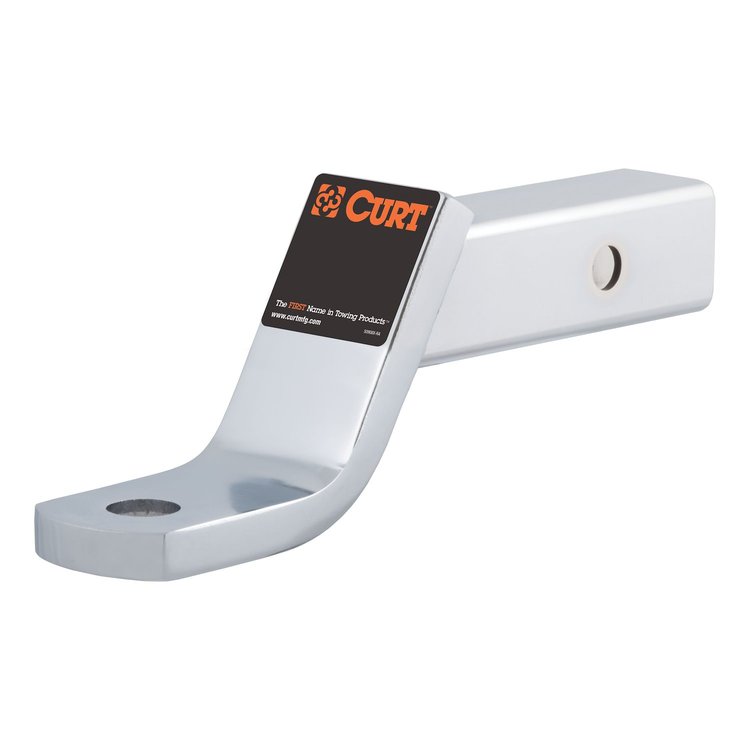

Class 3 Ball Mount 4" Drop
$4999
3 left in stock
Ships Today
Lowest Price GuaranteeClass III Chrome Ball Mounts
Class 3 Ball Mount4" Drop 2" Rise 8-1/4" Length 7500lb GTW 750 Tongue Weight Chrome Plated
CURT HITCHES 45296 Features:
CURT class 3, or standard-duty, ball mounts are a step up from classes 1 and 2. They feature a 2" x 2" shank and have a higher weight capacity for towing heavy-duty trailers, including utility trailers, boat trailers, campers, single-horse livestock trailers and most recreational vehicle trailers. With class 3 trailer hitches being the most common type of trailer hitch for pickup trucks and SUVs, the class 3 ball mount, by association, is an excellent complement to this trailer hitch and these larger vehicles (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This particular class 3 ball mount has a gross trailer weight capacity of 7,500 lbs. and a tongue weight capacity of 750 lbs. It features a length of 8-1/4", a drop of 4" and a possible rise of 2". Class 3 ball mounts are CNC-formed and robotically welded to ensure unwavering precision and dependable strength in each and every unit. We mechanically descale each one to provide a smooth surface for a long-lasting finish. This class 3 ball mount comes with a bright chrome-plated finish to protect against corrosion, scratches, UV damage and more to give it the thick skin it needs to face the road ahead.Part TypeTrailer Hitch Ball Mount
BrandCURT
Package Height3.0
Package Width5.0
Package Length13.0
Weight8.0 PG
Part CategoryAccessories
StyleFixed
Overall Length8.25 in (209.6 mm)
Part FitmentUniversal
Rise2 in (50.8 mm)
Drop4 in (101.6 mm)
Vendor Part Number45296
Package Qty1
Package TypeEA
