Vehicle Info NeededDANA SPICERPART NUMBER: 094-2015860

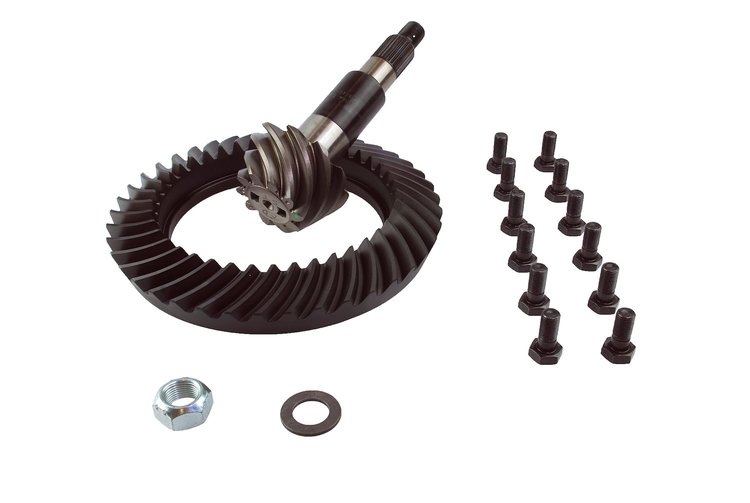

Dana 70 Ring & Pinion 4.10 Ratio
$1,10735
Ships on 09/15/2026
Lowest Price GuaranteeDana 70
Ring & PinionDana 70 4.10 Ratio .500 in.-20 Thread on Ring Gear Pinion Spline: 29 Spline Rear Standard Rotation
Dana Spicer 2015860 Dana 70 Ring & Pinion 4.10 Ratio Specifications:
- Ring Gear Diameter: 10.500 in.
- Ring Gear Bolts: (12) Bolts, .500 in.-20 Thread
- Cover Bolts: 10
- Pinion Spline: 29 Spline
Spicer offers two ring and pinion types. Spicer Premium Ring & Pinion Gears are the same as used in OE applications. Process-controlled machining, heat treatment, face hobbing, shot peening, and lapping operations provide a smoother, quieter ride and years of trouble-free service. Spicer SVL Ring & Pinion Gears deliver quality and performance that meets or exceeds most popular aftermarket products. SVL Gears are available for Dana, Chrysler, GM, and Ford axles.
Part TypeRing and Pinion
Product LineSpicer Ring & Pinion Sets
BrandDANA SPICER
Package Height6.0
Package Width11.7
Package Length11.9
Weight23.41 PG
Part CategoryReplacement Parts
Ring Gear RotationStandard
Ring Gear Tooth Quantity41
PositionRear
QuantitySold individually
Differential Carrier Break4.10 and Lower
Cover Bolt Quantity10
Pinion Spline Count29
Ring Gear Diameter10.5 in (266.7 mm)
Pinion Shaft Diameter1.75 in (44.5 mm)
Pinion Gear Tooth Quantity10
Axle TypeDana 70
Gear Ratio4.10
Ring Gear Bolt Quantity12
Part FitmentSemi Universal
Vendor Part Number2015860
Package Qty1
Package TypeEA
