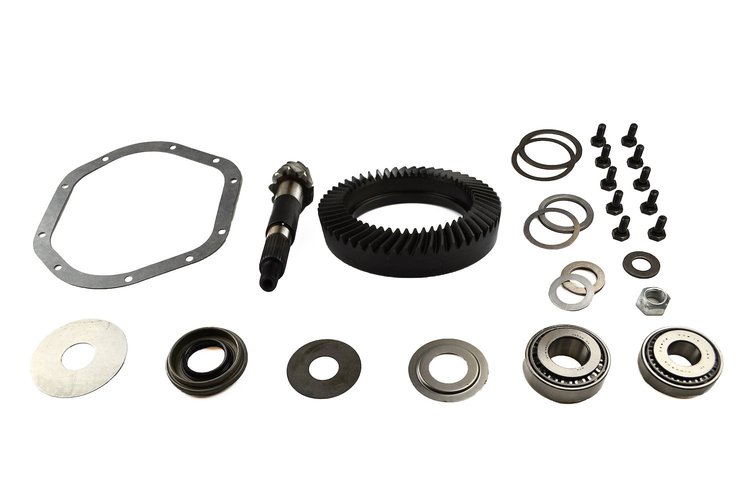

Ring & Pinion
Spicer 094-706017-9X Features:
- All Spicer ring gear and pinion sets are designed and tested to meet original equipment specifications.
- Lapped to reduce noise and heat. Lubrication process allows for no break in period.
- Precision heat-treating and shot-peening delivers consistent quality| enhanced life by reducing residual stress doubling the fatigue life of the gear.
- High-grade steel for maximum durability.
Part TypeRing and Pinion
BrandDANA SPICER
Package Height5.9
Package Width11.1
Package Length11.4
Weight17.1 PG
Part CategoryReplacement Parts
Ring Gear RotationStandard
Ring Teeth Count53
Pinion Gear IncludedYes
Axle ModelDana 44
Ring Gear Bolt Qty10
QuantitySold as a Kit
Include Installation KitYes
Cover Bolt Quantity10
Pinion Spline Count26
On Vehicle LocationRear
Ring Gear Diameter8.500 in
Pinion Nut IncludedYes
New Or RemanufacturedNew
Ring Gear Bolt Thread0.375-24
Pinion Shaft Diameter0.983 in
Pinion Gear Tooth Quantity9
Axle TypeSemi Floating
Gear Ratio5.89
Ring Gear IncludedYes
Carrier Breaks3.92 And Up
Part FitmentDirect Fit
Vendor Part Number706017-9X
Package Qty1
Package TypeEA
