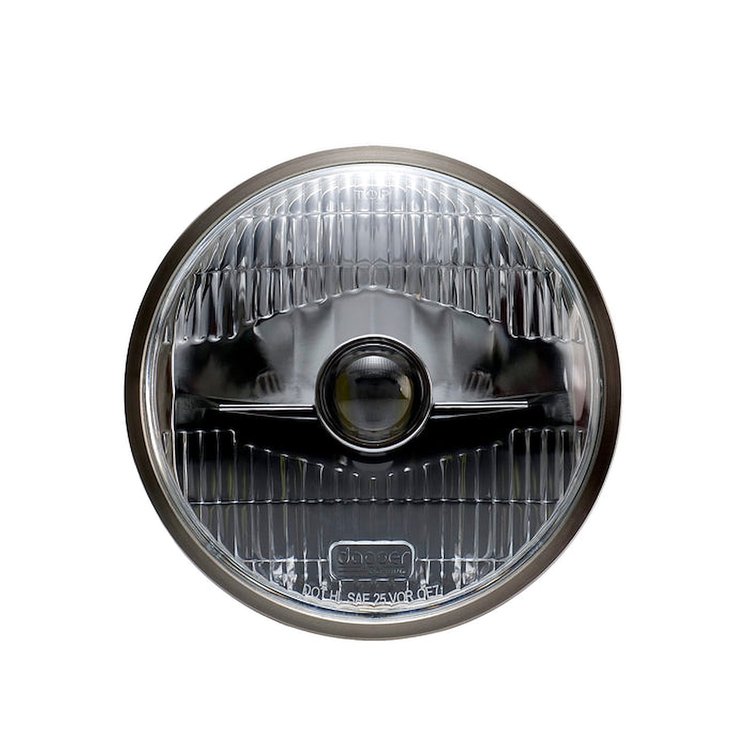

Dapper Lighting OE7-OE-D Features:

The OE7 is the world’s smallest DOT-compliant LED projector headlight—handcrafted in the USA for drivers who demand performance without compromising classic style.

Designed for tight engine bays and timeless builds, this 3-inch deep headlight packs a punch with high-performance OSRAM LEDs that deliver a precise, bright beam pattern. Whether you're cruising through backroads or city streets, the OE7 lights the way with clarity and confidence.

• Durable and Elegant: Built with mirror-plated aluminum housingsand solid glass semi-fluted lenses, the OE7 pairs strength with refined aesthetics. Each unit is engineered to withstand the elements while turning heads wherever you go.
• Customizable and Serviceable: Easily upgrade or personalize your headlight. The OE7 features removable glass lenses, modular accessories (like tinted covers and racing guards), and a replaceable projector unit, ensuring longevity and flexibility for future needs
• FMVSS 108 / DOT Certified: Fully compliant with U.S. road safety standards. Each unit is independently tested for legal street use, ensuring reliable road performance
• Plug-and-Play Installation: Equipped with an OEM-style H4 connector, which installs seamlessly into most classic car harnesses with no rewiring required
• Compact, High-Performance Optics: Delivers over 2.5x the usable light of standard sealed beams, utilizing advanced OSRAM LED projectors with a peak intensity of up to 45,000 candelas, providing superior clarity and focused lighting
• Glass Lens for Long-Term Clarity: Constructed with UV-resistant borosilicate glass to prevent yellowing, fading, and surface dulling over time — ensuring a lasting, clear view
• Sharp, Glare-Free Cutoff: Custom-designed beam pattern with a razor-sharp horizontal cutoff that maximizes road visibility while minimizing glare for oncoming drivers
• Stable Voltage, Reliable Output: The Power Control Unit (PCU) ensures voltage regulation across 9–16V systems, offering consistent performance and eliminating flicker under varying conditions
• Low Power Draw, High Output: Efficient design uses just 18W (Low Beam) and 30W (High Beam), providing bright, effective lighting with minimal power consumption — ideal for classic vehicles with limited electrical capacity
• Modular & Serviceable Design: Built for durability and flexibility with replaceable projector units, removable glass lenses, and support for optional tinted covers or racing guards — making it easy to upgrade or service
• Direct Fit for 7" Round Headlights: The new OE7 perfectly replaces standard sealed beam models, including PAR56, H6024, H6014, and other 7" round headlights
• Built to Withstand Harsh Conditions: Engineered to meet rigorous environmental tests, including vibration, corrosion, and humidity, ensuring long-lasting reliability in all conditions

NOTE: Bucket modifications may be required on some vehicles.

Specs:

• Measured Luminous Flux: 750 lm (Low) / 1030 lm (High)
• Peak Intensity: 31,000 cd (Low) / 45,110 cd (High)
• Color Temperature: 5400K
• Voltage: 12.8V (Tested)
• Ingress Rating: IP66
• Cooling: Passive heatsink—no fans, no noise
• Color Temperature (CCT): 5400K
• Power (Watts): 18W (Low Beam), 30W (High Beam)
• Operating Voltage: 9–16V
• Current Draw (@ 12.8V): 1.37A (Low Beam), 2.8A (High Beam)
• Polarity: Polarity Reversible
• Operating Temperature: -40°C to 85°C (-40°F to 185°F)
• LED Emitter: OSRAM OSLON® Black Flat KW H3L531.TE, Lextar PF09N01
• Connector(s): OEM H4
• Lens Materials: Removable Borosilicate Glass
• Cutoff & Reflector Materials: Polycarbonate
• Housing Materials: Mirror-Plated Aluminum
• Sealing Components: Rubber Gasket
• Cooling: Passive Heatsink (Fanless)
• Ingress Rating: IP66
