Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
180cc Intake Runner Kits
- SHP Top End Kit
- Small Block Chevy
- 180cc Intake Ports
- 72cc Combustion Chambers
- 2.02" Int/1.60" Exh Valves
- 1.250" Single Valve Springs
- 3/8" Rocker Studs
- 5/16" Guide Plates
- Straight Plugs
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

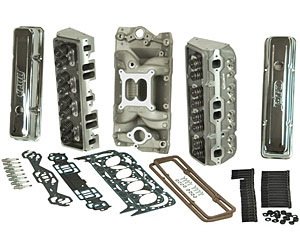

The Dart SHP Top End Kits for Small Block Chevy combine great performance, the weight savings of aluminum and incredible affordability. These kits are a fully tested combination of premium components that make great power for a reliable street engine!
Kits Include:
- Fully assembled SHP Cylinder Heads
- Stamped steel Dart Chrome Valve Covers
Show More
- SHP Dual Plane Intake, matched to compliment the cylinder heads
- Intake gaskets, head gaskets and exhaust gaskets
- Spark plugs
- ARP head bolts
Part TypeTop End Kit
Product LineDart SHP Top End Kits for Small Block Chevy
BrandDART
Package Height30.0
Package Width30.0
Package Length30.0
Weight96.75 PG
Intake Manifold Model (Descriptive)Dart
Intake Manifold IncludedYes
Retainers IncludedYes
Guideplates IncludedYes
Pushrods IncludedNo
Oiling StyleThrough pushrod
Cylinder Head Bolts IncludedYes
Valve Seats MachinedYes
Heat CrossoverNo
Number Of Springs Per ValveSingle
Spark Plug StyleStraight
Exhaust Port ShapeSquare
Damper Spring IncludedNo
Valve Stem Seals IncludedYes
Intake Valve Diameter2.02 in (51.308 mm)
Valve Guide MaterialManganese bronze
Outside Diameter Of Outer Spring1.25 in (31.8 mm)
Camshaft IncludedNo
Carburetor FlangeSquare bore
Steam Holes DrilledNo
Rocker Arm Studs IncludedYes
Retainer MaterialSteel
Cnc-Machined Combustion ChamberNo
Lifters IncludedNo
Exhaust Valve Diameter1.6 in (40.64 mm)
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake MaterialAluminum
Intake StyleDual plane
Intake Port LocationStandard
Valve Cover MaterialSteel
Intake FinishNatural
Exhaust Valves IncludedYes
Locks IncludedYes
Gaskets IncludedYes
Rocker Arms IncludedNo
Valve Covers IncludedYes
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seat MaterialPowdered metal
Valve Springs IncludedYes
Fuel Delivery StyleCarbureted
Valve Seat Machine Style5-angle intake/2-angle exhaust
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedYes
Combustion Chamber StyleHeart
QuantitySold as a kit
Accessory Bolt Holes DrilledYes
Exhaust Port LocationStandard
Combustion Chamber Volume (Cc)72
Machined For O-RingNo
Timing Chain And Gears IncludedNo
Cylinder Head StyleAssembled
Valve Cover Mounting StyleCenter and perimeter bolt
Valve Stem Seal StyleUmbrella
Intake Runner Volume (Cc)180
Cnc-Machined Exhaust RunnerNo
Vendor Part Number01311121
Package Qty1
Package TypeEA
