Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
215cc Intake Runner49cc Combustion Chamber

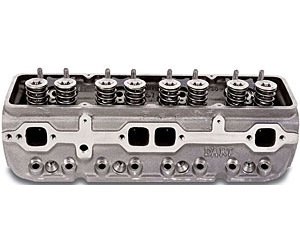

- Iron Eagle Platinum Series Cylinder Head
- Assembled Head
- 215cc Intake Runner
- 2.05'' Int/1.60'' Exh Valves
- 1.437" Dual Springs
- Angle Plug
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCylinder Head
BrandDART
Package Width54.0
Weight54.0 PG
Part CategoryPerformance Parts
Cylinder Head MaterialCast iron
Intake Port LocationStandard
Exhaust Valves IncludedYes
Locks IncludedYes
Retainers IncludedYes
Lock Style10 degree
Guideplates IncludedYes
Rocker Arms IncludedNo
Oiling StyleThrough pushrod
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seats MachinedYes
Maximum Valve Lift0.69 in (17.526 mm)
Valve Seat MaterialDuctile iron
Heat CrossoverNo
Number Of Springs Per ValveDual
Valve Springs IncludedYes
Spark Plug StyleAngled
Valve Seat Machine Style5-angle
Damper Spring IncludedNo
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedYes
QuantitySold individually
Valve Stem Seals IncludedYes
Intake Valve Diameter2.05 in (52.07 mm)
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)75
Exhaust Port LocationStandard
Valve Guide MaterialManganese bronze intake/Phosphorous bronze exhaust
Outside Diameter Of Outer Spring1.55 in (39.4 mm)
Combustion Chamber Volume (Cc)49
Machined For O-RingNo
Steam Holes DrilledNo
Rocker Arm Studs IncludedYes
Cylinder Head StyleAssembled
Part FitmentSemi Universal
Valve Cover Mounting StyleCenter and perimeter bolt
Valve Stem Seal StylePositive stop
Retainer MaterialSteel
Intake Runner Volume (Cc)215
Cnc-Machined Exhaust RunnerNo
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.6 in (40.64 mm)
Vendor Part Number10511122PF
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
