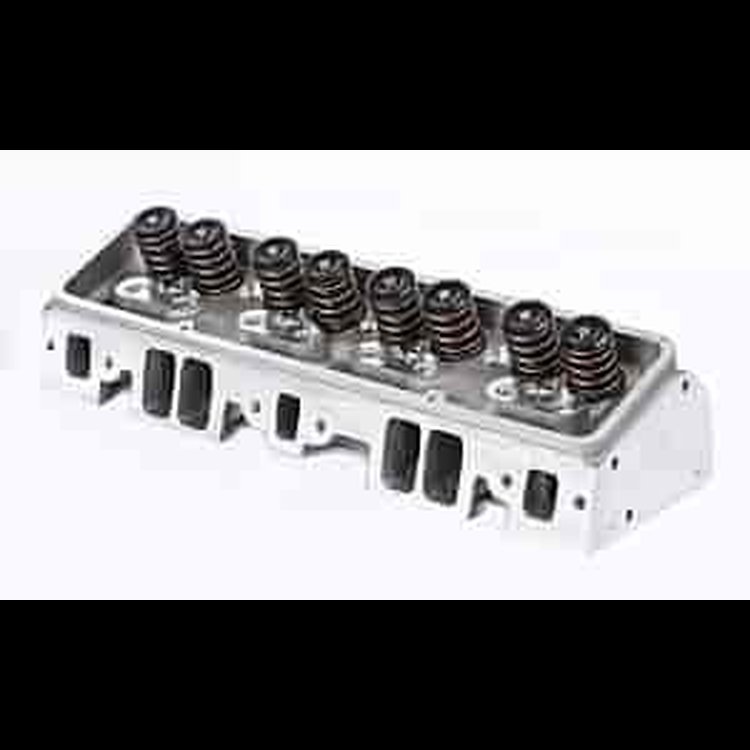

Small Block Chevy SHP Assembled Cylinder Head 200cc Intake Ports

Vehicle Info Needed

DARTPART NUMBER: 301-127422

Small Block Chevy SHP Assembled Cylinder Head 200cc Intake Ports

Name: Small Block Chevy SHP Assembled Cylinder Head 200cc Intake Ports
Brand: DART
SKU: 301-127422
Price: 755.25 USD
Availability: InStock

^$755²⁵

4 left in stock

Ships Today

Lowest Price Guarantee

200cc Intake Runners

Assembled

200cc Intake Ports
72cc Combustion Chambers
2.02" Int/1.60" Exh Valves
1.437" Dual Valve Springs
3/8" Rocker Studs
5/16" Guide Plates
Straight Plugs
1/pkg
0.620" Max Lift
Flow:
Intake: 264 cfm @ 0.500"
Exhaust: 180 cfm @ 0.500"
Recommended Gaskets:
Head:
350 Block (Fel-Pro 375-1003)
400 Block (Fel-Pro 375-1014)
Intake:
200cc (Fel-Pro 375-1205)
Exhaust:
All (Fel-Pro 375-1404 or 375-1405)
Recommended Spark Plug:
0.750" Reach Gasketed 5/8" Hex

Part TypeCylinder Head

BrandDART

Package Height6.2

Package Width9.1

Package Length21.9

Weight27.92 PG

Part CategoryPerformance Parts

Cylinder Head MaterialAluminum

Intake Port LocationStandard

Exhaust Valves IncludedYes

Locks IncludedYes

Retainers IncludedYes

Lock Style10 degree

Guideplates IncludedYes

Rocker Arms IncludedNo

Oiling StyleThrough pushrod

Rocker Arm Nuts IncludedNo

Cylinder Head FinishNatural

Valve Seats MachinedYes

Intake Valve Angle23

Maximum Valve Lift0.62 in (15.748 mm)

Valve Seat MaterialPowdered metal

Heat CrossoverNo

Number Of Springs Per ValveDual

Valve Springs IncludedYes

Spark Plug StyleStraight

Valve Seat Machine Style5-angle intake/2-angle exhaust

Damper Spring IncludedNo

Valve Guides IncludedYes

Cnc-Machined Intake RunnerNo

Intake Valves IncludedYes

Combustion Chamber StyleHeart

QuantitySold individually

Valve Stem Seals IncludedYes

Intake Valve Diameter2.02 in (51.308 mm)

Accessory Bolt Holes DrilledYes

Exhaust Runner Volume (Cc)75

Exhaust Port LocationStandard

Valve Guide MaterialManganese bronze

Outside Diameter Of Outer Spring1.437 in (36.5 mm)

Combustion Chamber Volume (Cc)72

Machined For O-RingNo

Exhaust Valve Angle23

Steam Holes DrilledNo

Rocker Arm Studs IncludedYes

Cylinder Head StyleAssembled

Valve Cover Mounting StyleCenter and perimeter bolt

Valve Stem Seal StyleUmbrella

Retainer MaterialSteel

Intake Runner Volume (Cc)200

Cnc-Machined Exhaust RunnerNo

Cnc-Machined Combustion ChamberNo

Exhaust Valve Diameter1.6 in (40.64 mm)

Vendor Part Number127422

Package Qty1

Package TypeEA
