Product Discontinued

DARTPART NUMBER: 301-13111181

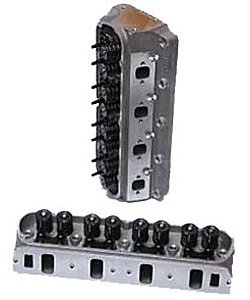

Ford Pro 1 Assembled

Name: Ford Pro 1 Assembled
Brand: DART
SKU: 301-13111181
Price: 1144.76 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Intake Ports: 170cc

Assembled
Valves: 1.94" Int/1.60" Exh
Valve Springs: 1.250"
(110 lbs @ 1.70", .520" max lift)

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCylinder Head

BrandDART

Package Height6.5

Package Width9.0

Package Length22.0

Weight29.1 PG

Part CategoryPerformance Parts

Cylinder Head MaterialAluminum

Intake Port LocationStandard

Rocker Arm Nut Thread Size (In.)7/16"-20

Exhaust Valves IncludedYes

Locks IncludedYes

Retainers IncludedYes

Lock Style10 degree

Guideplates IncludedYes

Rocker Arms IncludedNo

Oiling StyleThrough pushrod

Rocker Arm Nuts IncludedNo

Cylinder Head FinishNatural

Valve Seats MachinedYes

Maximum Valve Lift0.52 in (13.208 mm)

Valve Seat MaterialDuctile iron

Heat CrossoverNo

Number Of Springs Per ValveSingle

Valve Springs IncludedYes

Valve Seat Machine Style4-angle intake/3-angle exhaust

Damper Spring IncludedNo

Valve Guides IncludedYes

Cnc-Machined Intake RunnerNo

Intake Valves IncludedYes

Combustion Chamber StyleHeart

QuantitySold individually

Valve Stem Seals IncludedYes

Intake Valve Diameter1.94 in (49.276 mm)

Accessory Bolt Holes DrilledYes

Exhaust Runner Volume (Cc)75

Exhaust Port LocationStandard

Valve Guide MaterialManganese bronze

Outside Diameter Of Outer Spring1.25 in (31.8 mm)

Combustion Chamber Volume (Cc)62

Machined For O-RingNo

Steam Holes DrilledNo

Rocker Arm Studs IncludedYes

Cylinder Head StyleAssembled

Part FitmentSemi Universal

Valve Cover Mounting StylePerimeter bolt

Valve Stem Seal StylePositive stop

Retainer MaterialSteel

Intake Runner Volume (Cc)170

Cnc-Machined Exhaust RunnerNo

Cnc-Machined Combustion ChamberNo

Exhaust Valve Diameter1.6 in (40.64 mm)

Vendor Part Number13111181

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
