Lowest Price GuaranteeIntake Ports: 195cc
- Ford Pro 1
- Assembled
- Valves: 2.02" Int/1.60" Exh
- Dual Valve Springs: 1.437"
(130 lbs @ 1.80", .620" max lift)
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

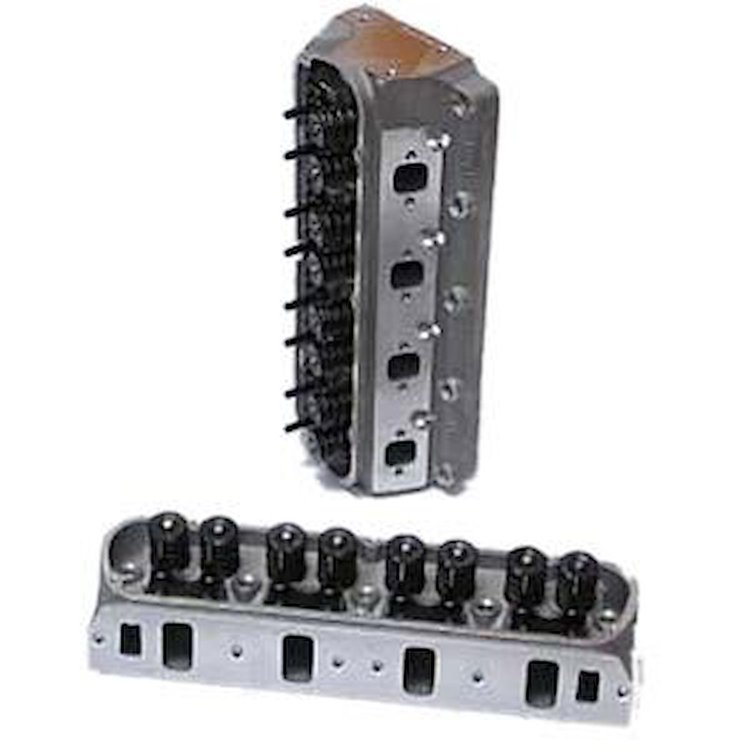

The Dart Small Block Ford Pro 1 Cylinder Heads deliver outstanding airflow using advanced tooling & state-of-the-art casting techniques while the CNC-ported version provides even more "flow for your dough". Engineered for easy installation as bolt-on replacements for most conventional applications. Dart's race-proven features and affordable pricing make these aluminum cylinder heads one of the biggest values in racing today!
Show More
Features:
- Virgin 355-T61 Aerospace Alloy
- Accommodates all Stock Accessories
- Heart Shaped Combustion Chambers
- Exhaust Runners Raised .135" -
- Multi-angle Intake Seats
- Radiused & Hardened Exhaust Seats
- Manganese Bronze Valve Guides
- Sold Individually.
Part TypeCylinder Head
Product LineDart Small Block Ford Pro 1 Aluminum Cylinder Heads
BrandDART
Package Height6.3
Package Width8.9
Package Length21.8
Weight29.05 PG
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
Exhaust Valves IncludedYes
Locks IncludedYes
Retainers IncludedYes
Lock Style10 degree
Guideplates IncludedYes
Rocker Arms IncludedNo
Oiling StyleThrough pushrod
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seats MachinedYes
Intake Valve Angle24
Maximum Valve Lift0.62 in (15.748 mm)
Valve Seat MaterialDuctile iron
Heat CrossoverNo
Number Of Springs Per ValveDual
Valve Springs IncludedYes
Valve Seat Machine Style4-angle intake/3-angle exhaust
Damper Spring IncludedNo
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedYes
Combustion Chamber StyleHeart
QuantitySold individually
Valve Stem Seals IncludedYes
Intake Valve Diameter2.02 in (51.308 mm)
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)75
Exhaust Port LocationStandard
Valve Guide MaterialManganese bronze
Outside Diameter Of Outer Spring1.437 in (36.5 mm)
Combustion Chamber Volume (Cc)62
Machined For O-RingNo
Exhaust Valve Angle15
Steam Holes DrilledNo
Rocker Arm Studs IncludedYes
Cylinder Head StyleAssembled
Part FitmentSemi Universal
Valve Cover Mounting StylePerimeter bolt
Valve Stem Seal StylePositive stop
Retainer MaterialSteel
Intake Runner Volume (Cc)195
Cnc-Machined Exhaust RunnerNo
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.6 in (40.64 mm)
Vendor Part Number13211112
Package Qty1
Package TypeEA
