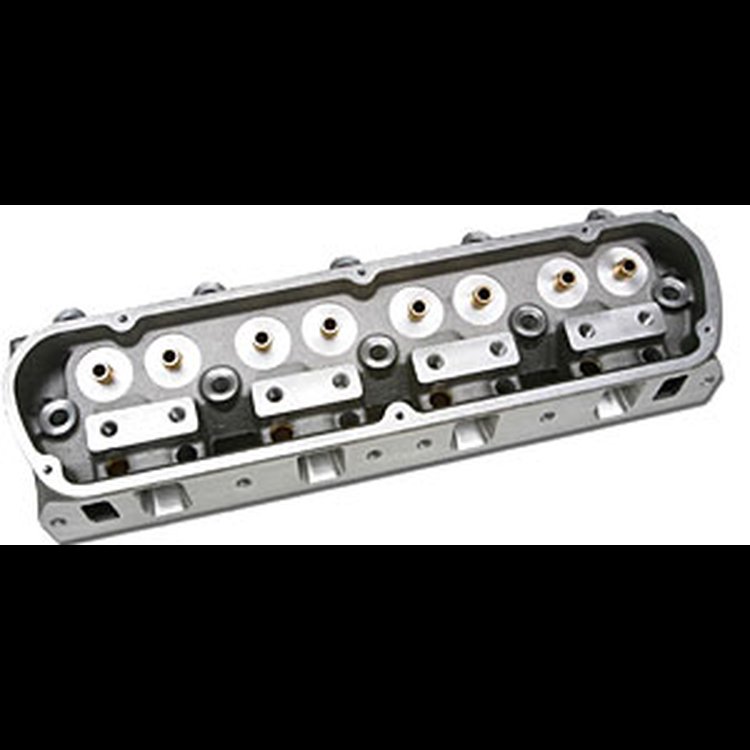

Ford Iron Eagle Bare

Name: Ford Iron Eagle Bare
Brand: DART
SKU: 301-13300010
Price: 490.10 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Intake Ports: 180cc
Combustion Chambers: 58cc

Ford Iron Eagle
Bare

Part TypeCylinder Head
BrandDART
Package Height6.1
Package Width9.1
Package Length21.7
Weight49.45 PG
Part CategoryPerformance Parts
Cylinder Head MaterialCast iron
Intake Port LocationStandard
Exhaust Valves IncludedNo
Locks IncludedNo
Retainers IncludedNo
Guideplates IncludedNo
Rocker Arms IncludedNo
Oiling StyleThrough pushrod
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seats MachinedYes
Intake Valve Angle20
Valve Seat MaterialDuctile iron
Heat CrossoverNo
Valve Springs IncludedNo
Spark Plug StyleAngled
Valve Seat Machine Style5-angle intake/3-angle exhaust
Damper Spring IncludedNo
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedNo
QuantitySold individually
Valve Stem Seals IncludedNo
Intake Valve Diameter2.02 in (51.308 mm)
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)73
Exhaust Port LocationStandard
Valve Guide MaterialManganese bronze
Combustion Chamber Volume (Cc)58
Machined For O-RingNo
Exhaust Valve Angle20
Steam Holes DrilledNo
Rocker Arm Studs IncludedNo
Cylinder Head StyleBare
Valve Cover Mounting StylePerimeter bolt
Intake Runner Volume (Cc)180
Cnc-Machined Exhaust RunnerNo
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.6 in (40.64 mm)
Vendor Part Number13300010
Package Qty1
Package TypeEA
