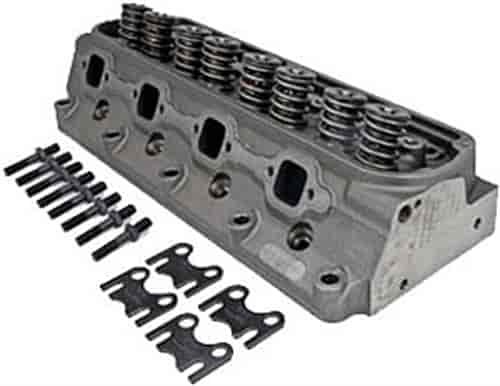

Ford Iron Eagle Assembled

Name: Ford Iron Eagle Assembled
Brand: DART
SKU: 301-13301111
Price: 735.95 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Intake Ports: 180cc
Combustion Chambers: 58cc

Ford Iron Eagle
Assembled
Valves: 2.02" Int/1.60" Exh
Valve Springs: 1.250"
(110 lbs @ 1.70", .510" max lift)

Part TypeCylinder Head
BrandDART
Package Height6.3
Package Width9.0
Package Length22.0
Weight55.0 PG
Part CategoryPerformance Parts
Cylinder Head MaterialCast iron
Intake Port LocationStandard
Exhaust Valves IncludedYes
Locks IncludedYes
Retainers IncludedYes
Lock Style7 degree
Guideplates IncludedYes
Rocker Arms IncludedNo
Oiling StyleThrough pushrod
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seats MachinedYes
Intake Valve Angle20
Maximum Valve Lift0.52 in (13.208 mm)
Valve Seat MaterialDuctile iron
Heat CrossoverNo
Number Of Springs Per ValveSingle
Valve Springs IncludedYes
Valve Seat Machine Style5-angle intake/3-angle exhaust
Damper Spring IncludedNo
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedYes
QuantitySold individually
Valve Stem Seals IncludedYes
Intake Valve Diameter2.02 in (51.308 mm)
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)73
Exhaust Port LocationStandard
Valve Guide MaterialManganese bronze
Outside Diameter Of Outer Spring1.25 in (31.8 mm)
Combustion Chamber Volume (Cc)58
Machined For O-RingNo
Exhaust Valve Angle20
Steam Holes DrilledNo
Rocker Arm Studs IncludedYes
Cylinder Head StyleAssembled
Valve Cover Mounting StylePerimeter bolt
Retainer MaterialChromoly steel
Intake Runner Volume (Cc)180
Cnc-Machined Exhaust RunnerNo
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.6 in (40.64 mm)
Vendor Part Number13301111
Package Qty1
Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
