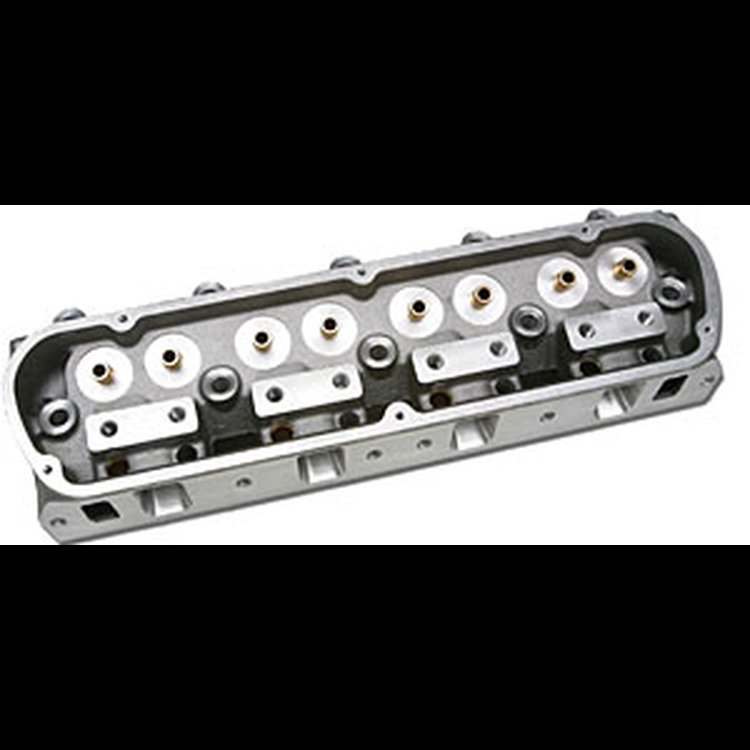

Ford Iron Eagle Bare

Name: Ford Iron Eagle Bare
Brand: DART
SKU: 301-13310080
Price: 475.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Intake Ports: 180cc
Combustion Chambers: 62cc

Ford Iron Eagle
Bare

The Dart Iron Eagle Small Block Ford cylinder heads are a big performance upgrade at an unbeatable price! They're cast from premium, high-density iron with extra-thick decks for increased durability, plus they have machined valve cover rails and end pads for leak-free performance that fits like stock. Inside, you'll find precision-cast runners and combustion chambers, plus multi-angle intake and radiused, hardened exhaust seats for excellent airflow!
Features:
Premium Cast Iron
180cc or 200cc intake ports
Heart shaped Combustion Chambers
Multi-angle Intake Seats
Radiused & Hardened Exhaust Seats
Exhaust Flange uses Standard Bolt Pattern.
Manganese Bronze Valve Guides
Sold Individually

Part TypeCylinder Head
Product LineDart Small Block Ford Iron Eagle Cylinder Heads
BrandDART
Package Width54.0
Weight54.0 PG
Part CategoryPerformance Parts
Cylinder Head MaterialCast iron
Intake Port LocationStandard
Exhaust Valves IncludedNo
Locks IncludedNo
Retainers IncludedNo
Guideplates IncludedNo
Rocker Arms IncludedNo
Oiling StyleThrough pushrod
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seats MachinedYes
Intake Valve Angle20
Valve Seat MaterialDuctile iron
Heat CrossoverNo
Valve Springs IncludedNo
Valve Seat Machine Style5-angle intake/3-angle exhaust
Damper Spring IncludedNo
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedNo
QuantitySold individually
Valve Stem Seals IncludedNo
Intake Valve Diameter1.94 in (49.276 mm)
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)73
Exhaust Port LocationStandard
Valve Guide MaterialManganese bronze
Combustion Chamber Volume (Cc)62
Machined For O-RingNo
Exhaust Valve Angle20
Steam Holes DrilledNo
Rocker Arm Studs IncludedNo
Cylinder Head StyleBare
Valve Cover Mounting StylePerimeter bolt
Intake Runner Volume (Cc)180
Cnc-Machined Exhaust RunnerNo
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.6 in (40.64 mm)
Vendor Part Number13310080
Package Qty1
Package TypeEA
