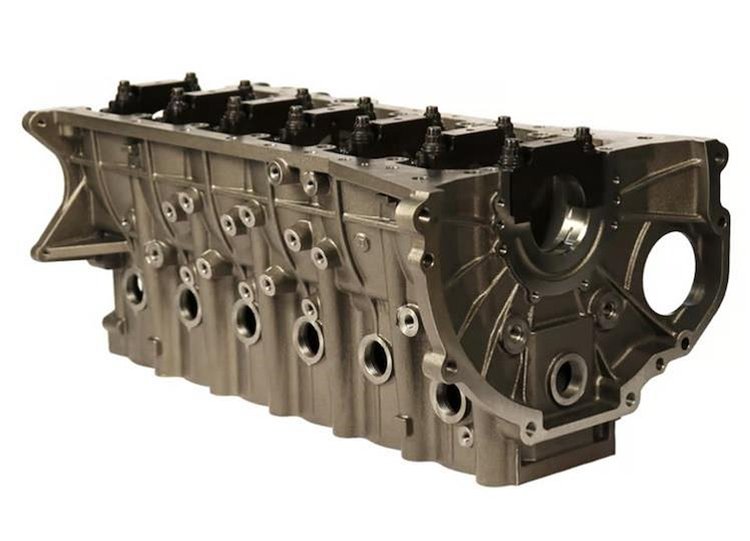

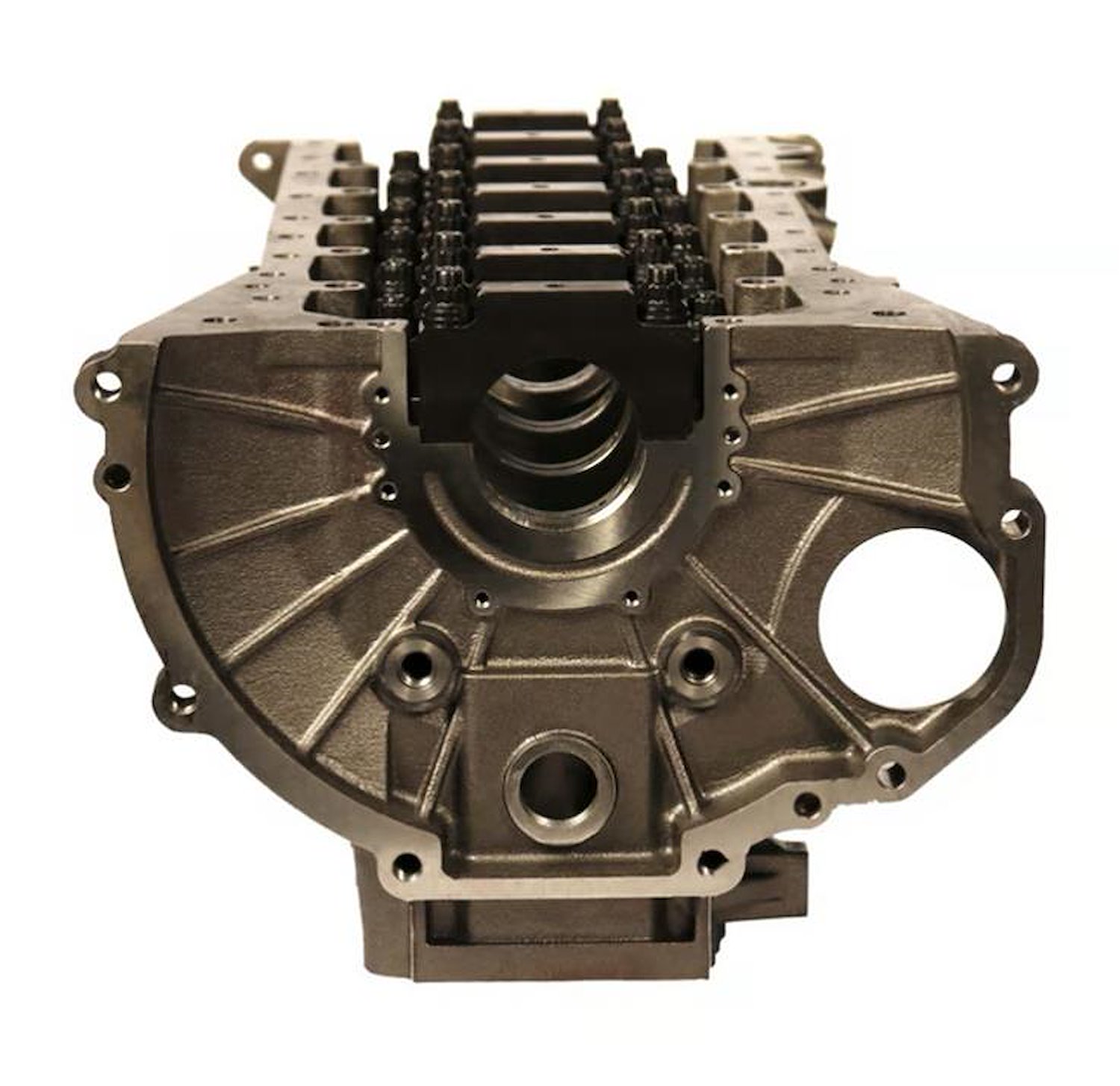

31011010 Iron Eagle Toyota 2JZ Engine Block
Dart 31011010 Iron Eagle 2JZ Engine Block Features:
- Siamese cylinder bores with extra thick walls
- Extra thick decks ensure reliable head gasket seal
- Redesigned crankcase structure for increased strength under high HP levels
- Blind head bolt holes standard 11 mm
- Scalloped water jackets increase flow around cylinders for better cooling
- Machined for screw-in style freeze plugs
- Revised oil passage location, for better flow and clearance with 94 mm stroke
- Machined for piston oilers
- Can be machined for clearance for an 88 mm bore
- Can be machined for clearance for a 94 mm stroke with aluminum rods
- Billet steel 10 mm and 12 mm main studs
- Screw-in freeze plugs
- All OE bolt holes for starter, water pump, etc.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Redefining the Toyota 2JZ Platform
Designed from a clean slate approach, the Dart Iron Eagle block has successfully addressed the shortcomings of the Toyota 2JZ platform, making it the ultimate choice for hot rodders, drag racers, time attack competitors, drifters, and high-performance street enthusiasts. Based on the widely acclaimed OEM Toyota 2JZ engine platform, Dart has elevated a proven engine block to new heights. The main caps have been revamped from the 2-bolt cap design to a robust 4-bolt cap design on positions 1 through 6. This enhancement significantly strengthens the crankcase, making the block suitable for applications exceeding 2000 horsepower. Additionally, Dart has meticulously revised and increased the cylinder wall, block deck, and outer case wall thicknesses. These improvements have been implemented to eliminate any potential failures under high-boost applications, ensuring unparalleled reliability and performance.
