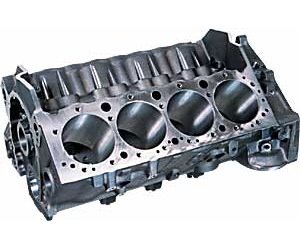

Little M Sportsman Engine Block Small Block Chevy 9.025 in. Deck Height
Product Discontinued
DARTPART NUMBER: 301-31192111

Little M Sportsman Engine Block Small Block Chevy 9.025 in. Deck Height

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Little ''M'' Sportsman Block with Nodular Iron Main Caps
Little M Sportsman Engine Block
  • Small Block Chevy
  • 9.025 in. Deck Height
  • 4.000 in. Cylinder Bore
  • 400 Main Bearings
  • Nodular Iron Main Caps
  • Sold Individually

    Features:

    • Extra Thick Cylinder Walls
    • Scalloped Outer Water Jacket Walls
    • Priority Main Oiling System
    • Open Lifter Valley
    • Enlarged Lifter Bosses
    • 4-Bolt Billet Steel Main Caps with Splayed Outer Bolts
    • Front & Rear External Oil Inlets
    • Block Includes: Special Coated Cam Bearings, Freeze Plugs & Dowels (Not Included in Sportsman Little M)

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Part TypeEngine Block
    BrandDART
    Package Width210.0
    Weight210.0 PG
    Part CategoryPerformance Parts
    Main Journal Type400 mains
    Engine Block StyleAftermarket
    Engine Block MaterialCast iron
    Cylinder Bore As Shipped3.99 in (101.346 mm)
    Engine Block Weight (Lbs.)205
    QuantitySold individually
    Raised Cam LocationNo
    Freeze Plugs IncludedNo
    Main Bolt Style4-bolt
    Deck Height9.025 in (229.235 mm)
    Main Bearings IncludedNo
    Main Cap MaterialDuctile iron
    Rear Main Seal Style2-piece
    Main Caps IncludedYes
    Finished Cylinder BoresNo
    Cylinder Bore Diameter4 in (101.6 mm)
    Cam Bearings IncludedNo
    Part FitmentSemi Universal
    Main Cap Fasteners IncludedYes
    Vendor Part Number31152111
    Package Qty1
    Package TypeEA
