Made in USA
SHP LS Next PRO Engine Block 220 BHN Cast Iron 4.000 / 9.240
InfoVehicle Info Needed
DARTPART NUMBER: 301-31867112

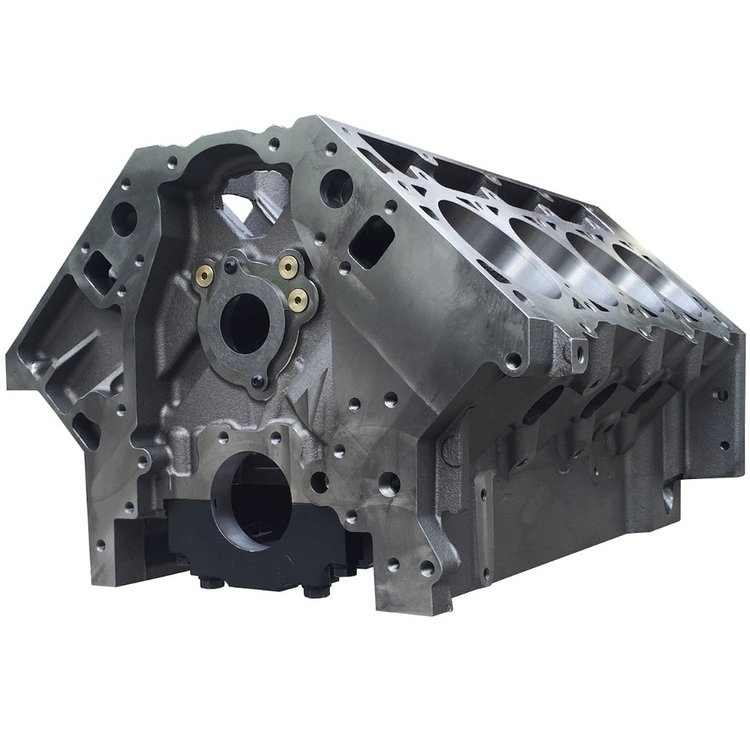

SHP LS Next PRO Engine Block 220 BHN Cast Iron 4.000 / 9.240

$4,69999
Truck Freight
ShippingShips on 01/18/2027
Lowest PriceLowest Price Guarantee

220 BHN Cast Iron Blocks
SHP LS Next PRO Engine Block
  • GM LS-series
  • 4.000" Bore
  • 9.240" Deck
  • Standard Cam Location
  • 4-Bolt Steel Main Caps
  • 220 BHN Cast Iron

    Dart Machinery continues the evolution of the LS Next platform by releasing the SHP LS Next PRO block! Designed for high performance applications, the SHP LS NEXT PRO block is the ideal starting point for drag racers, circle track competitors, off-roaders, and high performance marine enthusiasts. This new superior strength 220 BHN cast iron block features a full skirt design with a priority main oiling system, steel four-bolt main caps with upgraded ARP main studs and provisions for stock and aftermarket oil filter mounting. The Dart SHP LS Next PRO is the perfect high performance upgrade for your factory LS block.

    Features:

    • Superior strength 220 BHN Cast Iron
    • Steel 4-bolt main caps with upgraded ARP main studs
    • Lifter oil crossover with restrictor provision
    • 6-bolt per cylinder capability
    • 4.000" up to 4.185" bore
    • Factory oil filter provision
    • 8-counterweight machining
    • Full skirt design
    • Priority main oiling
    • Siamese cylinder bores
    • Thick decks ensure reliable head gasket seal

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • Part TypeEngine Block
    BrandDART
    Package Height23.6
    Package Width24.0
    Package Length38.1
    Weight150.0 PG
    Part CategoryPerformance Parts
    Maximum Bore Diameter4.185 in (106.299 mm)
    Engine Block Weight (Lbs.)227
    Part FitmentSemi Universal
    Deck Height9.24 in (234.696 mm)
    ToolStroker Combinations
    Package Qty1
    Package TypeEA
