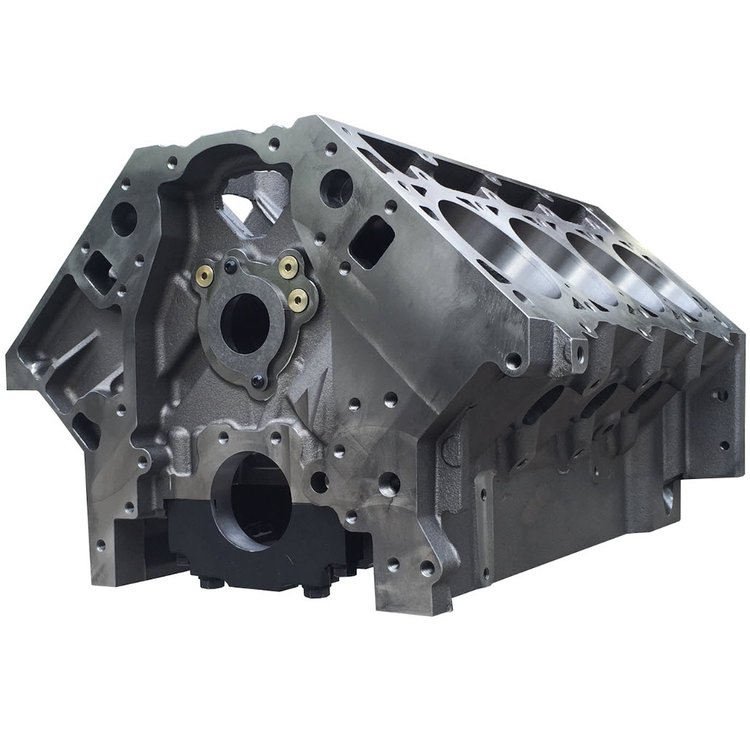

SHP LS Next PRO Engine Block 220 BHN Cast Iron 4.125 / 9.240

Name: SHP LS Next PRO Engine Block 220 BHN Cast Iron 4.125 / 9.240
Brand: DART
SKU: 301-31867212
Price: 4699.99 USD
Availability: InStock

^$4,699⁹⁹

Truck Freight

Ships on Mar 12, 2027

Lowest Price Guarantee

Currently Unavailable

This product is currently not available. Please call customer service for assistance at 1-800-345-4545.

220 BHN Cast Iron Blocks

SHP LS Next PRO Engine Block

GM LS-series

4.125" Bore

9.240" Deck

Standard Cam Location

4-Bolt Steel Main Caps

220 BHN Cast Iron

Dart Machinery continues the evolution of the LS Next platform by releasing the SHP LS Next PRO block! Designed for high performance applications, the SHP LS NEXT PRO block is the ideal starting point for drag racers, circle track competitors, off-roaders, and high performance marine enthusiasts. This new superior strength 220 BHN cast iron block features a full skirt design with a priority main oiling system, steel four-bolt main caps with upgraded ARP main studs and provisions for stock and aftermarket oil filter mounting. The Dart SHP LS Next PRO is the perfect high performance upgrade for your factory LS block.

Features:

Superior strength 220 BHN Cast Iron
Steel 4-bolt main caps with upgraded ARP main studs
Lifter oil crossover with restrictor provision
6-bolt per cylinder capability
4.000" up to 4.185" bore
Factory oil filter provision
8-counterweight machining
Full skirt design
Priority main oiling
Siamese cylinder bores
Thick decks ensure reliable head gasket seal

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Superior strength 220 BHN Cast Iron

The new superior strength 220 BHN cast iron Dart SHP LS Next PRO is the perfect high performance upgrade for your factory LS block. By eliminating the "Y-block" design and utilizing conventional style main caps and oil pans, (stock pans can be used with Moroso oil pan spacers) Dart has addressed the problems resulting from the LS engine's separated crankcase bays. Windage is greatly reduced, resulting in increased power and improved lubrication.

This design change led to several additional improvements. The main webs are significantly stronger because the bay to bay breathing windows are eliminated in Dart's design. Deleting the windows also allows the cylinder barrels to be extended by .3750" into the crank case, providing greater piston support at the bottom of the stroke. Two standard bore sizes are available, 4.000" and 4.125".

All stock and aftermarket LS components can be utilized. Conventional style 4-bolt steel main caps are used. A 5/8" thick full deck design is utilized for superior strength, with six head bolts per cylinder to provide secure clamping. Dart's priority main oiling system ensures high rpm reliability and includes provision for oil restrictors in the lifter valley.

Features:
