This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

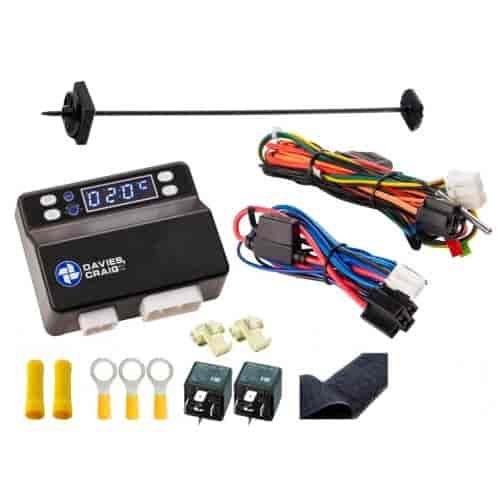

The Premium Digital Thermatic Switch automatically activates single or twin fans or a fan and Electric Water Pump at your set / targeted temperature when extra cooling is required. Attractive compact dashboard, driving compartment mounting LED display module, this state-of-the-art switch can also operate your air conditioning fan. It can be used for 12 or 24* volt applications (24V Relay Required) and has an adjustable temperature range of 104ºF to 230ºF (40°C to 110°C) which can show Centigrade or Fahrenheit. The temperature sensor probe can be conveniently locked into the radiator fins or placed into the top radiator hose (with Part # 317-DC-0409) for accurate coolant temperature readings.
The Premium Switch offers all the attractive features the value-packed 317-DC-0444 offers plus more including;
- Bright, attractive compact LED digital display monitor mounted in the driver’s compartment!
- Dual fan relay activation with clear LED indicator for each fan.
- Variable push-button temperature setting 104ºF to 230ºF (40°C to 110°C)
- Push-button air conditioning override indicator
- Separate wiring looms provided/plug & play unit with built-in relays
- Temperature Sensor fault display
- Three-metre thermal sensor probe lead
The Premium Thermatic Fan Switch - is equipped with the proven stainless steel temperature sensor probe which can be conveniently locked into the radiator fins close to the hot coolant inlet or placed into the top radiator hose for accurate coolant temperature readings.
*Note: Kit sold in 12 volt configuration, for 24 volt application, you will need to change the two relays with 24 volt units which are not supplied in the kit.
Specs | Part #0444 | Part #0455 |
Maximum voltage | 10V to 16V | 10V to 16V |
Maximum Current | 50A – Each Fan | 50A – Each Fan |
Relay setup | Dual Relay | Dual Relay |
Speed | Single Speed, 10-Second Delay to Start Up the Second Fan | Single Speed, 10-Second Delay to Start Up the Second Fan |
Applications | Recommended for All DCPL Fans incl. (2) 14"HP or (2) 16" Fans | Recommended for All DCPL Fans incl. (2) 14"HP or (2) 16" Fans |
Temperature Display | LED Digital Temp Display – Actual Temp + Set Temp | LED Digital Temp Display – Actual Temp + Set Temp |
°C + °F Setting | LED Display °C or °F | LED Display °C or °F |
°C to °F change | Press & Hold Set Button 5 Seconds | Separate °C to °F Change Button |
Temperature settings | 40°C to 110°C 104°F to 230°F | 40°C to 110°C 104°F to 230°F |
Temperature setting method | Push Button | Push Button |
Temperature reduction range | -5°C from Set / Target | -5°C from Set / Target |
Temperature detection | Air or Coolant (For Coolant Temp, Must Use Part #0409 Sensor Adaptor Kit– Not Supplied) | Air or Coolant (For Coolant Temp, Must Use Part #0409 Sensor Adaptor Kit – Not Supplied) |
Accuracy | 99.9% | 99.9% |
Circuit type | Pre-Programmed Micro Controller | Pre-Programmed Micro Controller |
Output wires | Battery + Battery - IGN, A/C Clutch Fan #1, Fan #2 Thermal Probe | Battery + Battery - IGN, A/C Clutch Fan #1, Fan #2 Thermal Probe |
Unit mount location | Engine Bay | Driver’s Compartment / Dashboard |
Probe lead length | 35.4" | 118.1" |
Fan operation indicator | N/A | Twin Fan Operation Will Illuminate via Fan #1, Fan #2 LEDS |
A/C Override indicator | N/A | Indicated via Air Con LED |
Temp set mode indicator | N/A | Indicated via Temp Set Mode LED |
Design | Relays & Wiring Built Into the Unit | Separate Wiring Looms Provided / Plug & Play Unit Relays Built Into the Wiring Loom |
Faults Display | N/A | Temp Sensor – |
Dimensions | 3.74" x 2.56" x 2.20" | 3.15" x 2.75" x 1.06 |
