This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- LCD Electric Water Pump & Fan Digital Controller
- 12V & 24V Compatible
- 5.1" L x 3.7" W x 1" D
Technical Specifications LCD Controller
Voltage Range 12V DC to 29V DC Display LCD Size 70mm (2.76”) x 60mm (2.36”) Maximum Current 12 Amps Warning Alarm High & Low Temp., Above Set Temp., Sensor Short Circuit, Pump Error, High & Low Voltage and Sensor Open Circuit Targeted Set Temp Range Singular Degrees from: 140°F (60°C) to 212°F (100°C) Memory Set & Targeted Temperature Fan Cut-in Temp 5.4°F (3°C) Above the Targeted (set) Temperature Controller Type PCB with Micro-Processor
Sensor Type Thermister in Housing
Overrun / Shutdown 14°F (10°C) Below Set/Target Temperature or 3 Minutes
Indicators Temperature, Power, EWP, Test, Fan, High & Low Temp, Voltage, Above Set Temperature (with Alarm) Weight 3.5 oz (100 grams)
Dimensions Length 3.7" (95mm); Width 5.1" (130mm); Depth 1" (25mm)

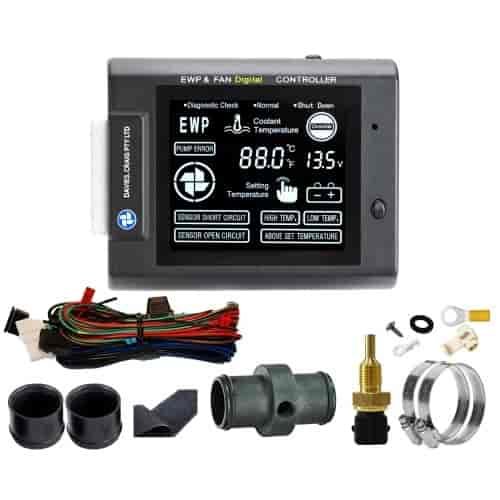

KIT CONTENTS DESCRIPTION UNITS EWP Digital Controller Assembly 1 Wiring Harness (Includes 10-Amp Fuse) 1 Temperature Sensor 1/4" NPT 1 Inline Adapter 1 Hose Clamps 2 Ring Terminal 1 Rubber Sleeves 2 Hook & Loop 2 Installation Instructions & Sensor Instructions 2
The LCD EWP/Fan Digital Controller has two specific functions. This unique Digital Controller will manage the operation of the EWP by varying the speed of the pump in response to the coolant temperature and manage control of your electric engine fan.
The Controller has a push-button to lock in any temperature from 140°F (60°C) to 212°F (100°C). It’s recommended you set/target the Controller to closely match your engine's existing thermostat temperature. The Digital Controller will operate the engine's electric fan automatically once the engine has reached +5.4°F (+3°C) above the targeted / set temperature. Another significant benefit is that the Controller allows the EWP & Fan to run on after ignition shutdown for either 3 minutes or -14°F (-10°C) of set set / target temperature to eliminate heat soak.
Features:
- Black & White Numerical Screen
- Fahrenheit or Celsius display option
- Select any set temp range from 140°F (60°C) to 212°F (100°C)
- Set / targeted temperature memory
- Override feature to assist bleeding EWP & fail safe
- Input voltage display
- Compatible with billet style Electric Water Pumps
- Warning Alarms:
- Plus 14°F (10°C) set/target temperature
- Under temp 104°F (40°C) after 5 mins
- Temp sensor error
- Over or under voltage
- EWP error
