Vehicle Info NeededDEATSCHWERKSPART NUMBER: 843-61002FRB66
DWR1000c Adjustable EFI Fuel Pressure Regulator Kit with Gauge and -6AN Fittings
$20900
More than 10 available
Ships on Nov 02, 2026
Lowest Price GuaranteeDWR1000c Adjustable EFI Fuel Pressure RegulatorFlow Rating: 1000 LPH Ports: -6AN Material: T6061 Aluminum Gauge and Fittings Included Sold as a Kit
The DeatschWerks DWR1000c is a compact adjustable EFI fuel pressure regulator designed for high-flow performance fuel systems. Its T6061 aluminum body supports up to 1000 LPH of free flow, while a ball-bearing adjustment mechanism provides precise pressure changes and the multi-directional bracket improves mounting flexibility.
DeatschWerks 6-1002-FRB-66 Features:
- 1000 LPH free-flow rating
- T6061 aluminum construction
- Black anodized finish
- -6AN inlet and outlet connections
- 1/8 in. NPT gauge port
- 3/16 in. vacuum reference port
- 2 psi-per-turn ball-bearing adjustment
- Compatible with gasoline, ethanol, and methanol fuel systems
- Universal EFI fuel-system application

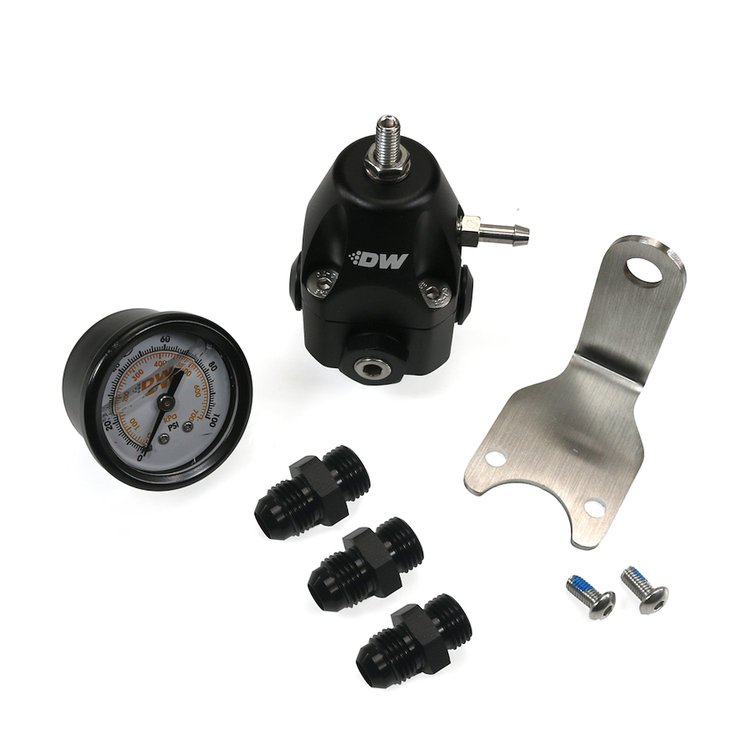

Includes:
- DWR1000c Adjustable Fuel Pressure Regulator
- Fuel Pressure Gauge
- Two -6AN Feed Fittings
- One -6AN Return Fitting
Part TypeFuel Pressure Regulator
BrandDEATSCHWERKS
Package Height5.0
Package Width5.5
Package Length8.4
Weight1.5 PG
Part CategoryPerformance Parts
Flow Rate1000 LPH
Port Quantity2
Outlet Size-6AN
Inlet Size-6AN
Outlet Port Diameter-6AN
Free Flow Rating1000lph
Gauge Port1/8 in. NPT
Adjustment Rate2 psi/turn
ColorBlack
Inlet Port Diameter-6AN
MaterialT6061 Aluminum
Part FitmentSemi Universal
Vacuum Reference Port3/16 in.
Vendor Part Number6-1002-FRB-66
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
