The DeatschWerks X2 fuel pump module combines an application-specific in-tank module with two DW420 pumps for substantially increased fuel-delivery capability while retaining key OE module functions. DeatschWerks technical data lists approximately 705 LPH at 58 psi for the dual-pump assembly and shows the module retaining OEM fuel-level, surge, and pickup functionality.

DeatschWerks 9-421-7002 Features:

• X2 Series application-specific in-tank fuel pump module
• Includes two DW420 high-flow fuel pumps
• Approximately 705 LPH combined flow at 58 psi per DeatschWerks technical data
• -8AN ORB feed fitting
• -6AN ORB return fitting
• Anodized aluminum module construction
• Retains OEM fuel-level sensing, capacity, surge, and saddle-tank pickup functions
• Integrated provision for a return fuel line

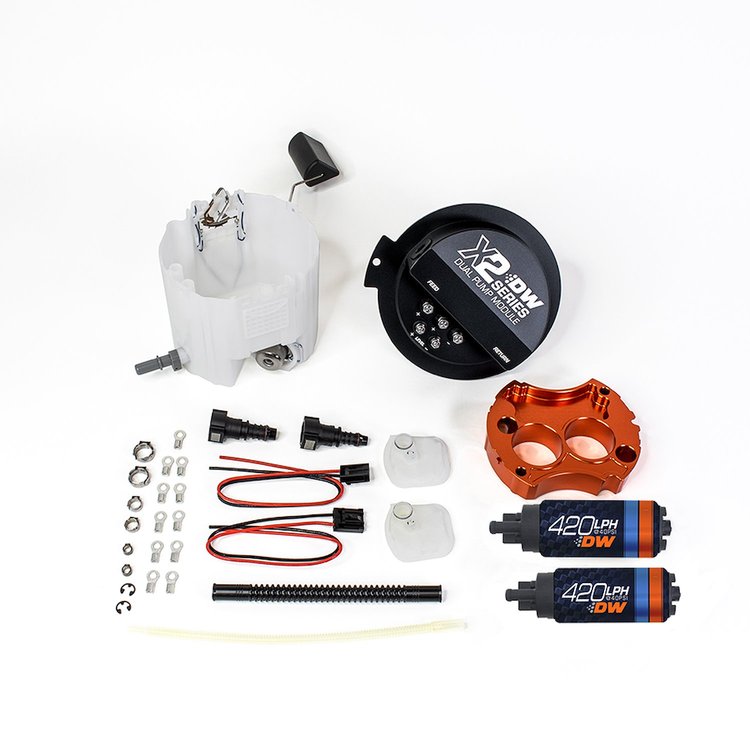

Includes:

• X2 Fuel Pump Module
• 2 DW420 Fuel Pumps
• Fuel-Level Sensor Hardware
• Application Adapters Where Required

Notes:

• A 10-gauge fuel-pump hardwire kit is strongly recommended by DeatschWerks to maintain voltage under high load.
• Additional supported applications appear in DeatschWerks technical data; verify exact vehicle and fuel-tank configuration before installation.
