DELPHIPART NUMBER: 117-FE0069

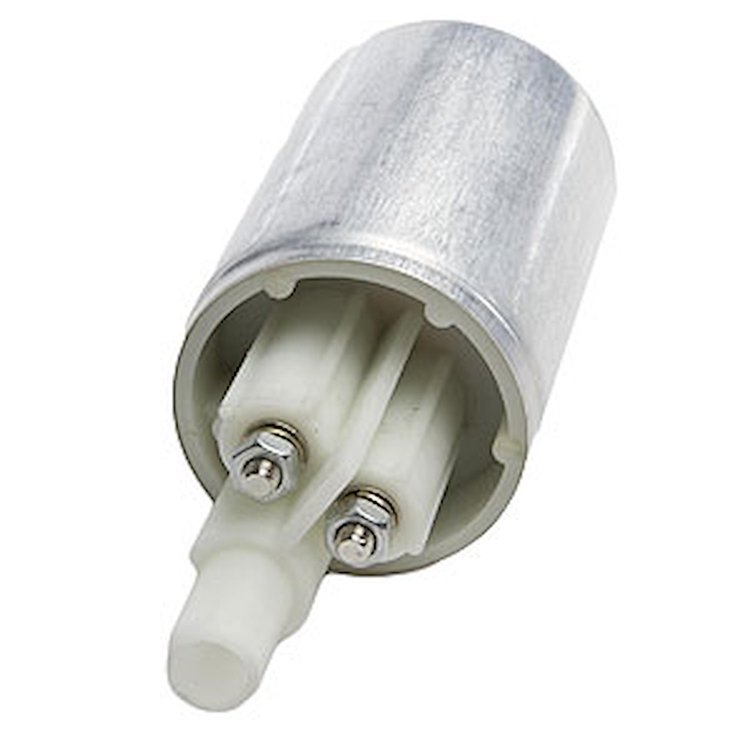

Electric Fuel Pump for 1979-1994 Volvo
$4733
Fuel Pumps
Electric Fuel Pump1979-1994 Volvo, Saab, Mazda & Alfa Romeo Fuel Type: Gas Average Current Draw: 2 amps Average Flow Rating: 28 GPH Inlet Outside Diameter: 19 mm Outlet Quantity: 1
This electric fuel pump restores fuel pressure to the factory-specified range on 1979-1994 Volvo, Saab, Mazda & Alfa Romeo.
Electric Fuel Pump Specs:
- Average Current Draw: 2 amps.
- Average Flow Rating: 28 GPH.
- Connector Gender: Male.
- Connector Shape: Terminals.
- Fuel Sending Unit Included: No.
- Fuel Type: Gas.
- Gasket or Seal Included: No.
- Grade Type: Premium.
- Inlet Outside Diameter: 19 mm.
- Inlet Type: Strainer.
- Internal or External: Internal.
- Length: 101 mm.
- Maximum Amperage Draw: 2 amps.
- Maximum Pressure: 58 psi.
- Minimum Pressure: 30 psi.
- Mounting Bracket Included: No.
- Mounting Hardware Included: Yes.
- Negative Ground: No.
- Outlet Outside Diameter: 0.375 in.
- Outlet Quantity: 1.
- Outlet Type: Hose.
- Position(s): In-Tank.
- Pump Design: Turbine.
- Regulator Included: No.
- Seal and Lock Ring Included: No.
- Strainer Included: No.
- Terminal Gender: Male.
- Terminal Quantity: 2.
- Terminal Type: Threaded.
- Voltage: 12 volts.
- Wire Quantity: 0.
- Wiring Harness Included: No.
Part TypeElectric Fluid Pump
BrandDELPHI
Package Height3.25
Package Width4.125
Package Length6.142 in (156.007 mm)
Weight0.46 PG
Part CategoryReplacement Parts
Item GradeStandard Replacement
Outlet Size0.375 in (9.5 mm)
Amp2
Terminal Type2 Pin Threaded Connector
Connector Shape/TypeMale
Inlet TypeStrainer
Strainer IncludedNo
Pump TypeTurbine
Flow Rate28 gal/hr
Relief Pressure58 psi
Mount Typeinternal
Type/SeriesIn-Tank
Meets Or Exceeds Original Equipment Manufacture SpecificationsYes
Gasket/Seal IncludedNo
Outlet TypeHose
Part FitmentDirect Fit
Volts12 vDC
System Pressure30 psi
NotesVarious, Check Application
Diameter3.248 in (82.499 mm)
Vendor Part NumberFUEL PUMP
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
