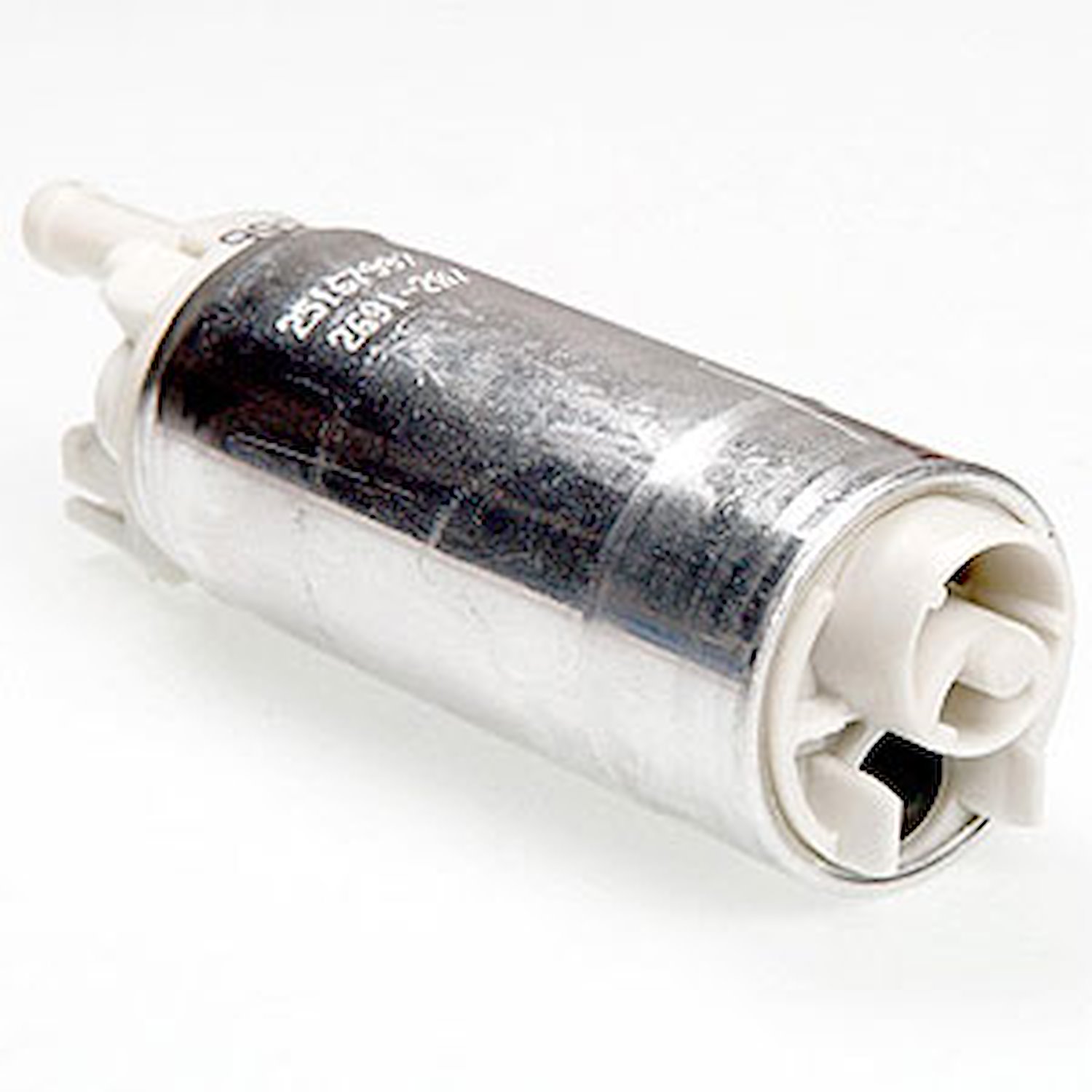

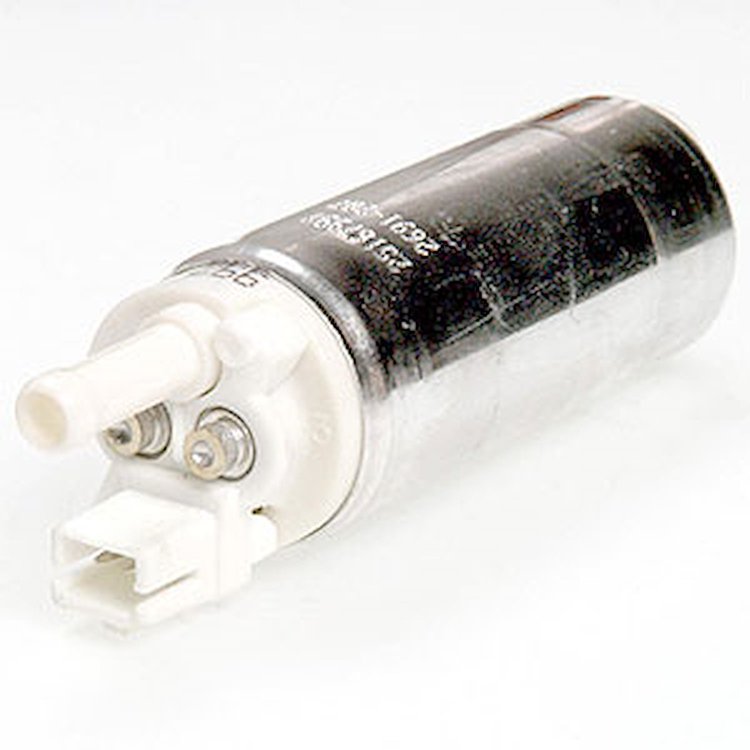

Vehicle Info NeededElectric Fuel Pump for 1991-2002 GM Trucks and SUVs
Ships on 09/08/2026
Lowest Price GuaranteeThis electric fuel pump restores fuel pressure to the factory-specified range on 1991-2002 GM Trucks and SUVs.
Electric Fuel Pump Specs:
- Average Current Draw: 8 amps.
- Average Flow Rating: 32 GPH.
- Connector Gender: Female.
- Connector Shape: Square.
- Fuel Sending Unit Included: No.
- Fuel Type: Gas.
- Gasket or Seal Included: Yes.
- Gasket or Seal Material: Nitrile Rubber.
- Grade Type: Premium.
- Inlet Outside Diameter: 19 mm.
- Inlet Type: Strainer.
- Internal or External: Internal.
- Length: 129 mm.
- Maximum Amperage Draw: 8 amps.
- Maximum Pressure: 85 psi.
- Minimum Pressure: 62 psi.
- Mounting Bracket Included: No.
- Mounting Hardware Included: Yes.
- Negative Ground: No.
- Outlet Outside Diameter: 0.313 in.
- Outlet Quantity: 1.
- Outlet Type: Hose Bead.
- Position(s): In-Tank.
- Pump Design: Turbine.
- Regulator Included: No.
- Seal and Lock Ring Included: No.
- Strainer Included: No.
- Terminal Gender: Male.
- Terminal Quantity: 2.
- Terminal Type: Pin.
- Voltage: 14 volts.
- Wire Quantity: 0.
- Wiring Harness Included: No.
Superior Replacement Fuel Pumps
Delphi Fuel Pumps deliver a leading OE supplier to the automotive industry; our fuel pumps restore fast-pressure performance and system integrity to provide better pumping through less energy. Delphi fuel pumps feature internal springs for increased durability and enhanced stability, while a lower amperage draw places less load on a vehicle's electrical system. Our fuel pumps have gold-filled fuel level sensors for improved corrosion resistance and large volume reservoir to handle low fuel conditions and vehicle cornering.
Show More
Other benefits of our fuel pumps include consistent pump flow, an enhanced filtration system for longer pump life, and an OE-service body harness and connector for superior performance, durability, and ease of installation.
