Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Fuel Pump Module Assemblies

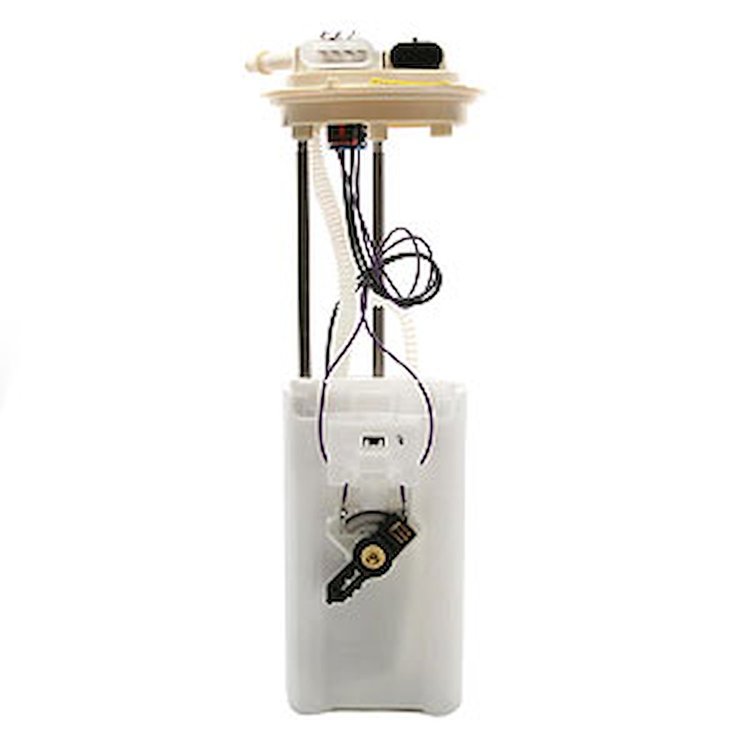

Fuel Pump Module Assembly
Delphi FG0030 Features:
Delphi Technologies is a Tier 1 supplier to the majority of global vehicle manufacturers and has been a manufacturer of dependable fuel pumps and fuel delivery parts for over 80 years. With over 30 OE-proprietary innovations and 150 patents in fuel technologies, Delphi Technologies is regarded as a market leader in North American fuel management with sales coverage at over 95%. Learn more about our expert-led training programs and tech hotline at 1-877-463-3574. Visit our Resource Center for helpful tips and tricks on fuel pumps, technologies, and more: https://www.delphiautoparts.com/usa/en-US/resource-center.Part TypeFuel Pump Module Assembly
BrandDELPHI
Package Height5.8
Package Width8.0
Package Length15.8
Weight2.96 PG
Part CategoryReplacement Parts
Item GradeStandard Replacement
Vapor Pressure SensorYes
Fuel Level Vent Valve (Flvv) IncludedNo
Installed Height10.508 in (266.903 mm)
Inlet TypeStrainer
Strainer IncludedYes
Strainer LocationInternal & External
Flow Rate18 gal/hr
Package ContentsFuel Pump Module Assy w/FLSA, Seal, Splice Harness, Connectors, Instr Sheet
Fuel Pressure RegulatorNo
Mount TypeIn Tank
Type/SeriesFuel Delivery Module
Meets Or Exceeds Original Equipment Manufacture SpecificationsYes
Gasket/Seal IncludedYes
Volts13 vDC
Resistance At Full (Ohms)250
Outlet Size0.375 in (9.5 mm)
Warranty12 mos/12,000 miles
Shut Off Pressure65-131 psi
Outlet Quantity (# Of Ports/Lines)3
Amp10

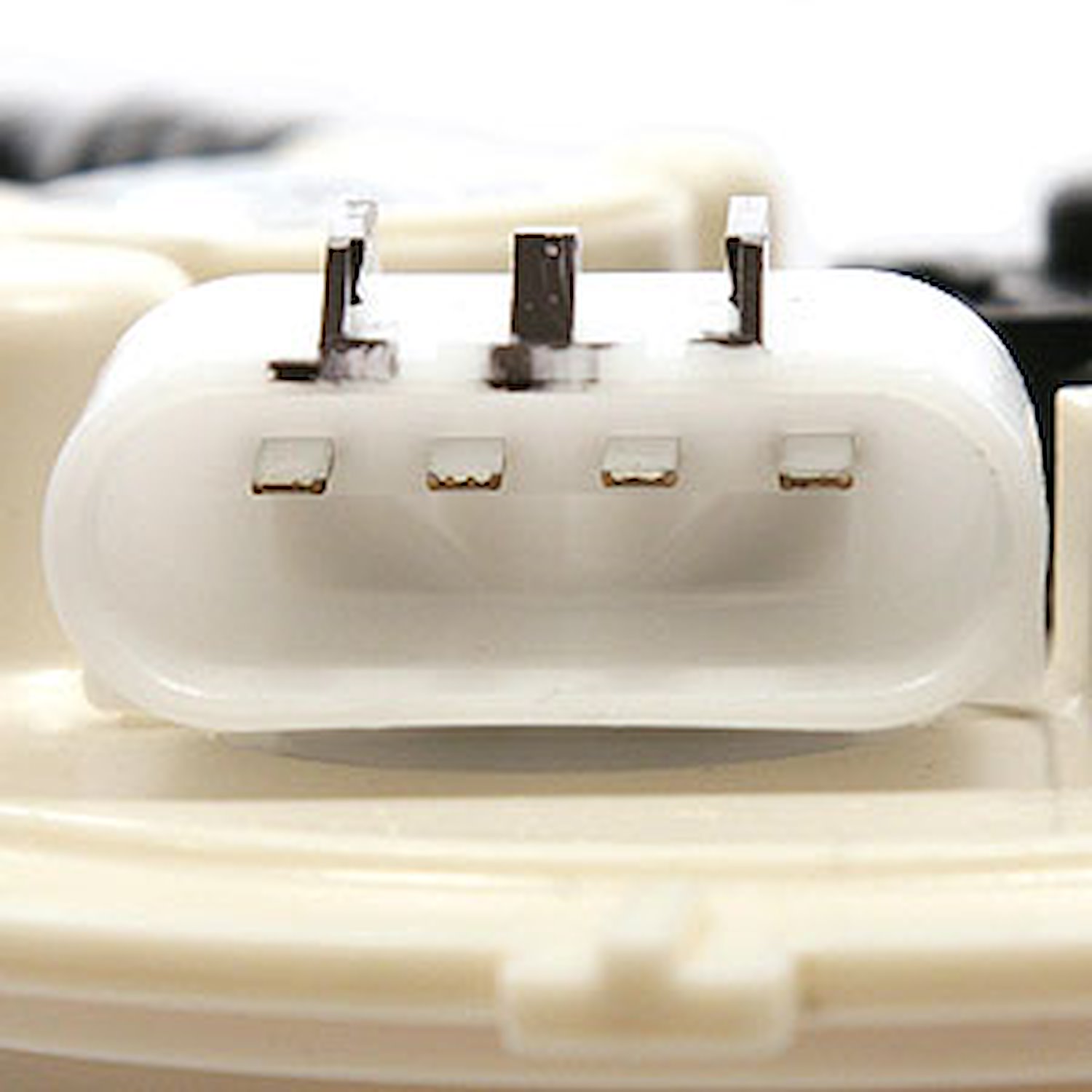

Terminal Type1 x 4 Connector
Connector Shape/TypeOval/Male
Resistance At Empty (Ohms)40
Harness/Jumper1 X 4 Splice Harness
Pump TypeTurbine
Relief Pressure109 psi
Outlet TypeMale Quick Connect
Part FitmentDirect Fit
Vapor Vent LineYes
System Pressure62 psi
Vendor Part NumberFG0030
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
