Fuel Pump Module Assembly
Product Discontinued
DELPHIPART NUMBER: 117-FG0170

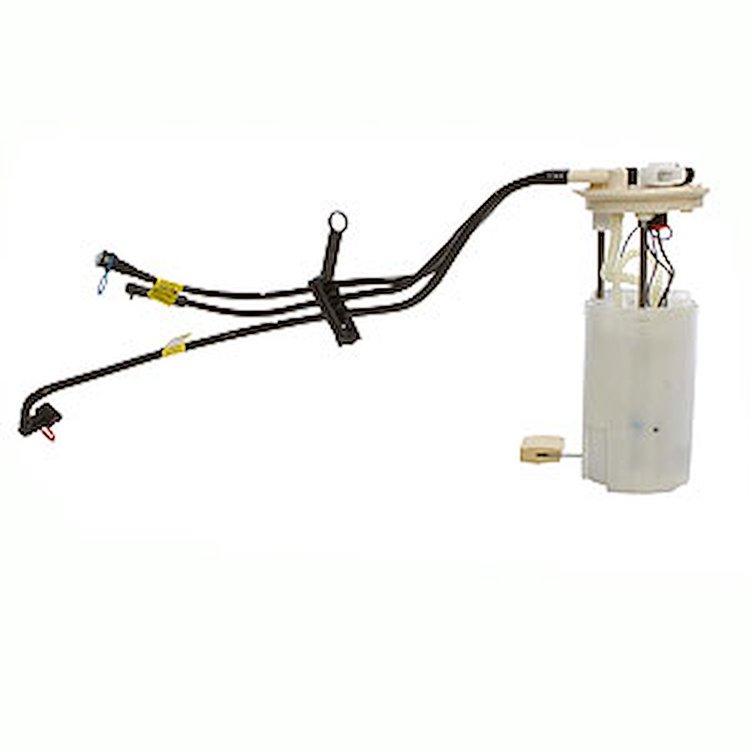

Fuel Pump Module Assembly

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Fuel Pump Module Assemblies
Fuel Pump Module Assembly

Delphi FG0170 Features:

Delphi Technologies is a Tier 1 supplier to the majority of global vehicle manufacturers and has been a manufacturer of dependable fuel pumps and fuel delivery parts for over 80 years. With over 30 OE-proprietary innovations and 150 patents in fuel technologies, Delphi Technologies is regarded as a market leader in North American fuel management with sales coverage at over 95%. Learn more about our expert-led training programs and tech hotline at 1-877-463-3574. Visit our Resource Center for helpful tips and tricks on fuel pumps, technologies, and more: https://www.delphiautoparts.com/usa/en-US/resource-center.

      Superior Replacement Fuel Pumps

      Delphi Fuel Pumps deliver a leading OE supplier to the automotive industry; our fuel pumps restore fast-pressure performance and system integrity to provide better pumping through less energy. Delphi fuel pumps feature internal springs for increased durability and enhanced stability, while a lower amperage draw places less load on a vehicle's electrical system. Our fuel pumps have gold-filled fuel level sensors for improved corrosion resistance and large volume reservoir to handle low fuel conditions and vehicle cornering.

      Show More

      Other benefits of our fuel pumps include consistent pump flow, an enhanced filtration system for longer pump life, and an OE-service body harness and connector for superior performance, durability, and ease of installation.

      Delphi Interchange Lookup
    Part TypeFuel Pump Module Assembly
    Product LineDelphi Electric Fuel Pumps & Fuel Modules
    BrandDELPHI
    Package Height8.25
    Package Width11.625
    Package Length23.625
    Weight5.06 PG
    Part CategoryReplacement Parts
    Item GradeStandard Replacement
    Vapor Pressure SensorYes
    Fuel Level Vent Valve (Flvv) IncludedNo
    Installed Height8.917 in (226.492 mm)
    Inlet TypeStrainer
    Strainer IncludedYes
    Strainer LocationInternal & External
    Flow Rate12 gal/hr
    Package ContentsFuel Pump Module Assy w/FLSA, Seal, Splice Harness, Connectors, Instr Sheet
    Fuel Pressure RegulatorNo
    Mount TypeIn Tank
    Type/SeriesFuel Delivery Module
    Meets Or Exceeds Original Equipment Manufacture SpecificationsYes
    Gasket/Seal IncludedYes
    Volts13 vDC
    Resistance At Full (Ohms)90
    Outlet Size0.375 in (9.5 mm)
    Warranty12 mos/12,000 miles
    Shut Off Pressure65-131 psi
    Outlet Quantity (# Of Ports/Lines)3
    Amp10
    Terminal Type1 x 4 Connector
    Connector Shape/TypeOval/Male
    Resistance At Empty (Ohms)0.1
    Harness/Jumper1 X 4 Splice Harness
    Pump TypeTurbine
    Relief Pressure109 psi
    Outlet TypeFemale Quick Connect
    Part FitmentDirect Fit
    Vapor Vent LineYes
    System Pressure44 psi
    Vendor Part NumberFG0170
    Package Qty1
    Package TypeEA
