DELPHIPART NUMBER: 117-FG0376

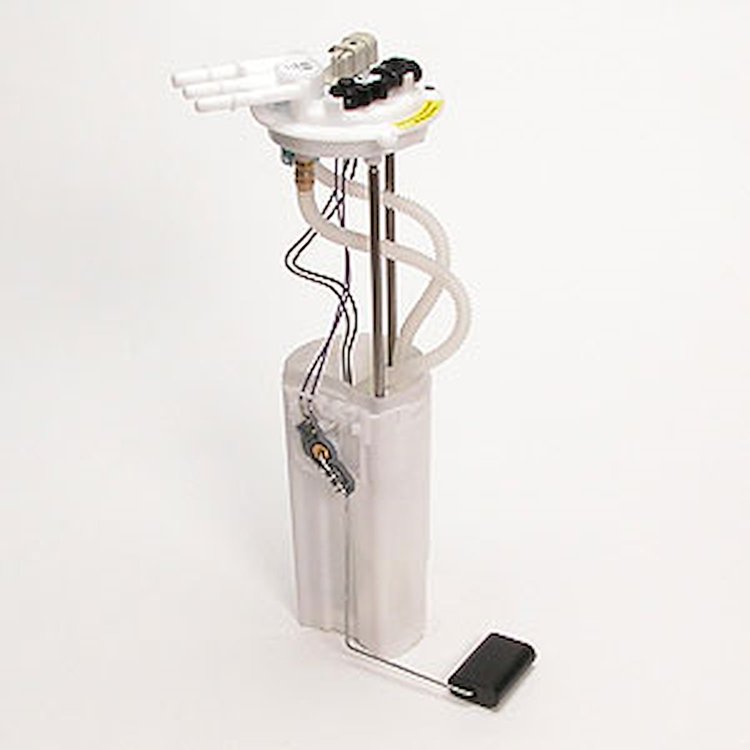

Fuel Pump Module Assembly
$28749
1 left in stockFuel Pump Module Assemblies
Fuel Pump Module Assembly
Delphi FG0376 Features:
Delphi Technologies is a Tier 1 supplier to the majority of global vehicle manufacturers and has been a manufacturer of dependable fuel pumps and fuel delivery parts for over 80 years. With over 30 OE-proprietary innovations and 150 patents in fuel technologies, Delphi Technologies is regarded as a market leader in North American fuel management with sales coverage at over 95%. Learn more about our expert-led training programs and tech hotline at 1-877-463-3574. Visit our Resource Center for helpful tips and tricks on fuel pumps, technologies, and more: https://www.delphiautoparts.com/usa/en-US/resource-center.Part TypeFuel Pump Module Assembly
BrandDELPHI
Package Height9.2
Package Width11.7
Package Length17.5
Weight3.7 PG
Part CategoryReplacement Parts
Item GradeStandard Replacement
Vapor Pressure SensorYes
Fuel Level Vent Valve (Flvv) IncludedNo
Installed Height12.618 in (320.497 mm)
Inlet TypeStrainer
Strainer IncludedYes
Strainer LocationInternal
Flow Rate16 gal/hr
Package ContentsFuel Pump Module Assy w/FLSA, Tank Seal, Jumper Harness, Instr Sheet
Fuel Pressure RegulatorNo
Mount TypeIn Tank
Type/SeriesFuel Delivery Module
Meets Or Exceeds Original Equipment Manufacture SpecificationsYes
Gasket/Seal IncludedYes
Volts12 vDC
Resistance At Full (Ohms)250
Outlet Size0.313 in (8 mm)
Warranty12 mos/12,000 miles
Shut Off Pressure65-131 psi
Outlet Quantity (# Of Ports/Lines)3
Amp7

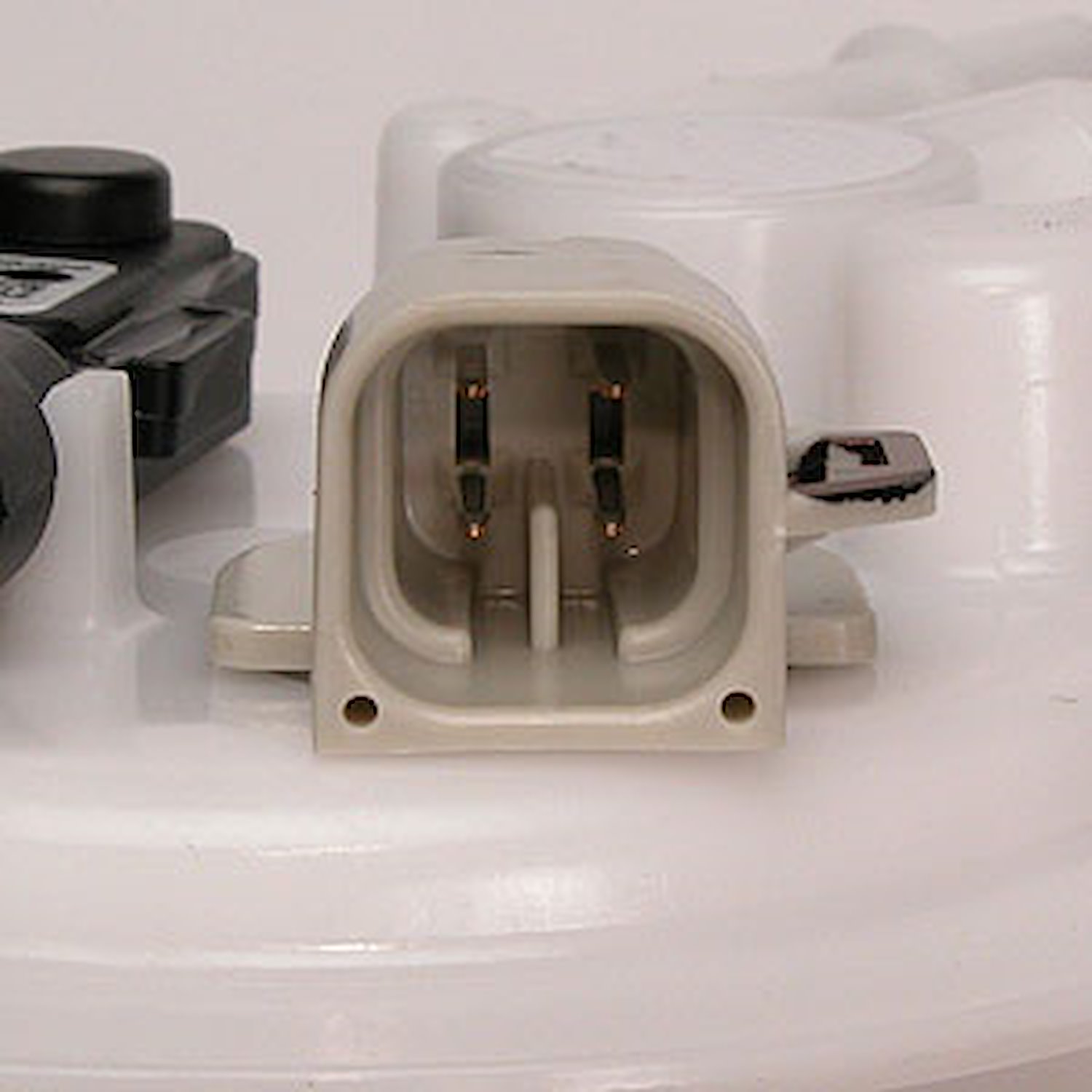

Terminal Type2 x 2 Connector
Connector Shape/TypeSquare/Male
Resistance At Empty (Ohms)40
Harness/Jumper2X2 to 1X4 Jumper
Pump TypeTurbine
Relief Pressure109 psi
Outlet TypeMale Quick Connect
Part FitmentDirect Fit
Vapor Vent LineYes
System Pressure59 psi
Vendor Part NumberFG0376
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
