![Fuel Pump Module Assembly for 2004-2009 Dodge Ram 1500 [Plastic]](https://www.jegs.com/images/mini_750/100/117/117-fg0474.jpg)

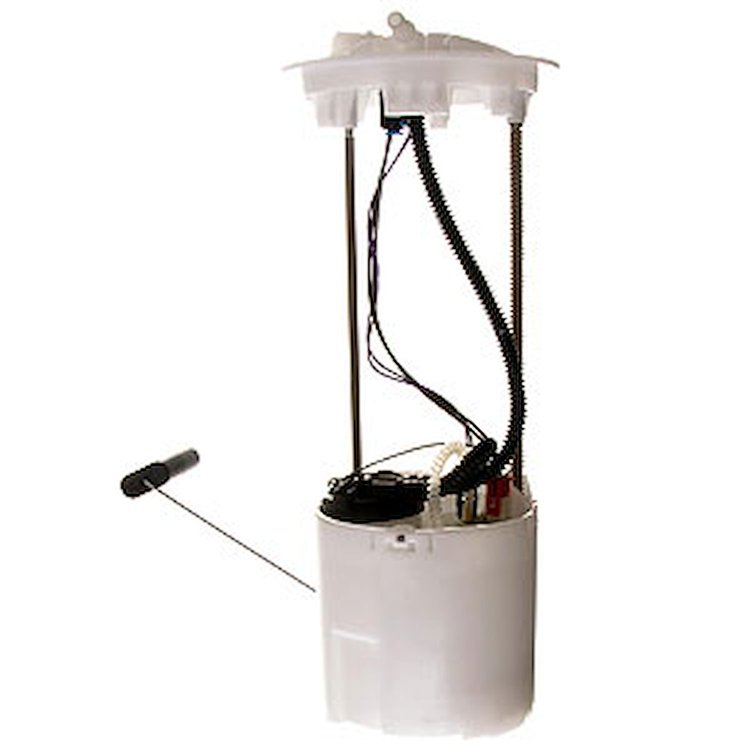

Vehicle Info NeededFuel Pump Module Assembly for 2004-2009 Dodge Ram 1500 [Plastic]
Ships on 09/04/2026
Lowest Price GuaranteeThis in-tank module replaces the factory fuel pump, sender, and strainer as a unit on 2004-2009 Dodge Ram 1500, Dodge Ram 2500 & Dodge Ram 3500.
Fuel Pump Module Assembly Specs:
- Average Current Draw: 11 amps.
- Average Flow Rating: 21 GPH.

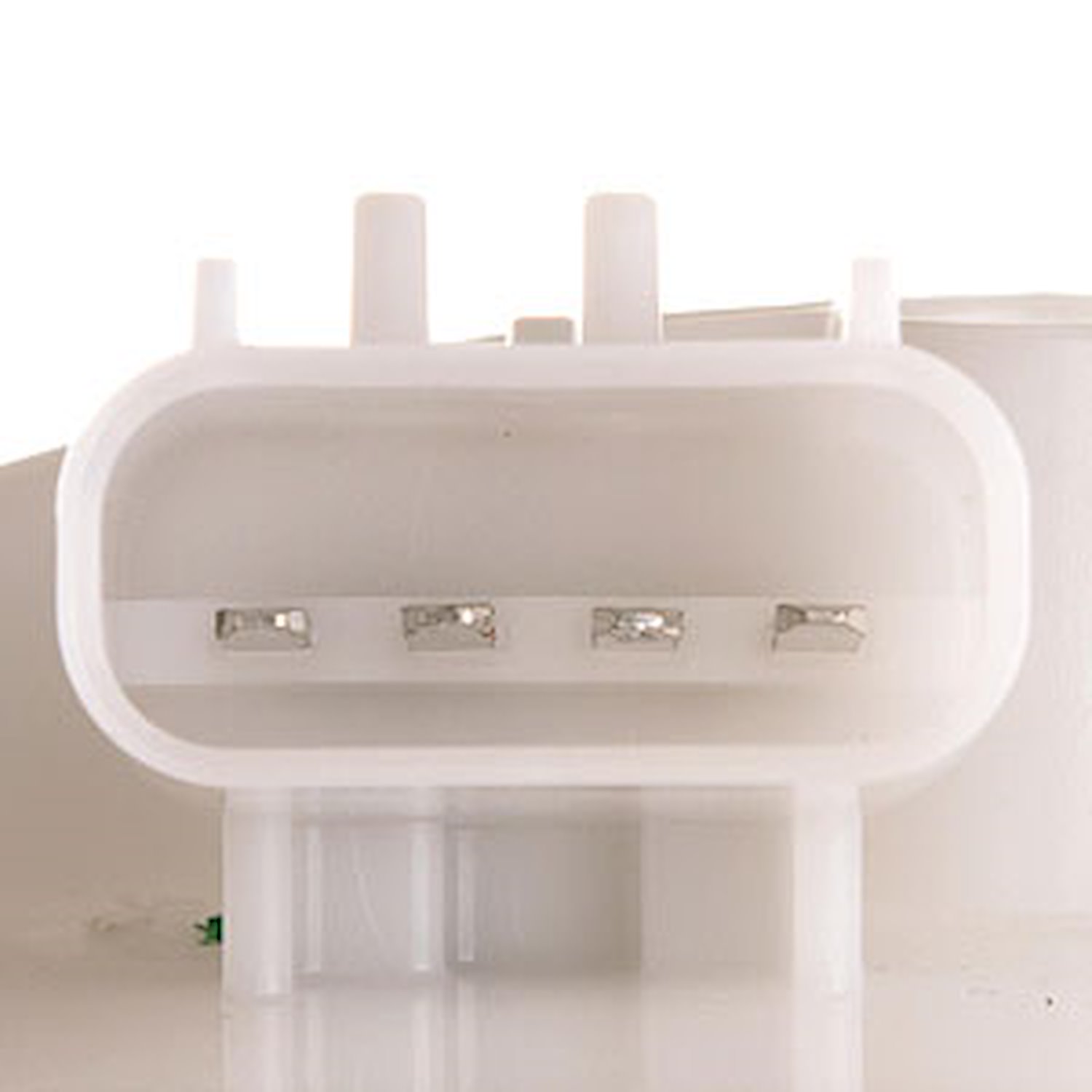

- Connector Gender: Female.
- Connector Quantity: 1.
- Connector Shape: Oval.
- Fuel Filter Included: Yes.
- Fuel Sending Unit Included: Yes.
- Fuel Tank Pressure Sensor Included: No.
- Fuel Type: Gas.
- Gasket or Seal Included: Yes.
- Gasket or Seal Material: Nitrile Rubber.
- Grade Type: Premium.
- Housing Material: Plastic.
- In Tank or External: In Tank.
- Inlet Type: Strainer.
- Installation Warnings: No.
- Internal or External Strainer: Internal.
- Lock Ring Included: No.
- Maximum Pressure: 65 psi.
- Minimum Pressure: 58 psi.
- Mounting Hardware Included: No.
- Negative Ground: No.
- Outlet Outside Diameter: 0.375 in.
- Outlet Quantity: 1.
- Outlet Type: Quick Connect.
- Pump Design: Turbine.
- Pump Type: Electric.
- Regulator Included: Yes.
- Resistance Ohms Empty: 220 ohms.
- Resistance Ohms Full: 20 ohms.
- Strainer Included: Yes.
- Terminal Gender: Male.
- Terminal Quantity: 4.
- Terminal Type: Blade.
- Voltage: 12 volts.
- Wire Harness Included: No.
Superior Replacement Fuel Pumps
Delphi Fuel Pumps deliver a leading OE supplier to the automotive industry; our fuel pumps restore fast-pressure performance and system integrity to provide better pumping through less energy. Delphi fuel pumps feature internal springs for increased durability and enhanced stability, while a lower amperage draw places less load on a vehicle's electrical system. Our fuel pumps have gold-filled fuel level sensors for improved corrosion resistance and large volume reservoir to handle low fuel conditions and vehicle cornering.
Show More
Other benefits of our fuel pumps include consistent pump flow, an enhanced filtration system for longer pump life, and an OE-service body harness and connector for superior performance, durability, and ease of installation.
