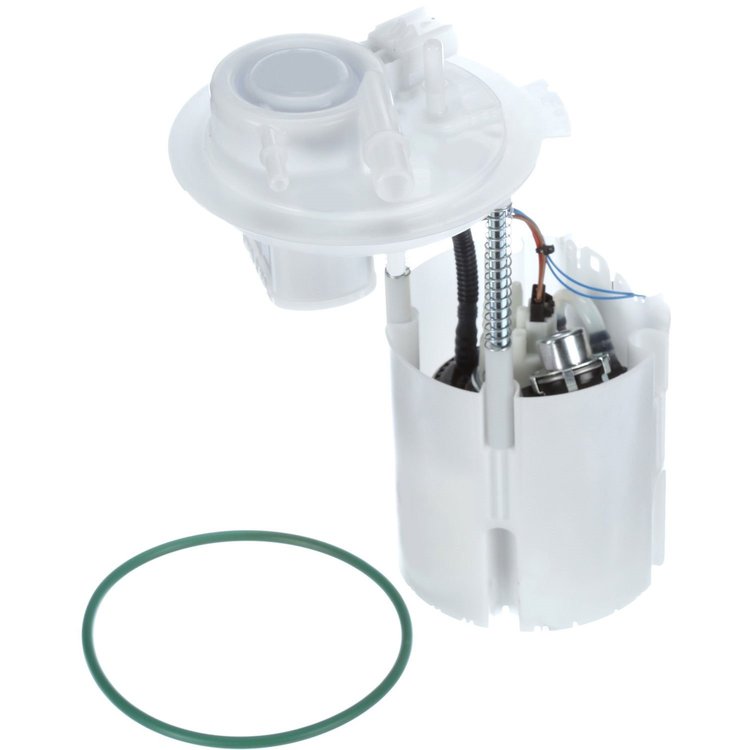

Fuel Pump Module Assembly
InfoVehicle Info Needed
DELPHIPART NUMBER: 117-FG1560

Fuel Pump Module Assembly

$78976
ShippingShips on Sep 04, 2026
Lowest PriceLowest Price Guarantee

Fuel Pump Module Assemblies
Fuel Pump Module Assembly

Delphi FG1560 Features:

Delphi Technologies is a Tier 1 supplier to the majority of global vehicle manufacturers and has been a manufacturer of dependable fuel pumps and fuel delivery parts for over 80 years. With over 30 OE-proprietary innovations and 150 patents in fuel technologies, Delphi Technologies is regarded as a market leader in North American fuel management with sales coverage at over 95%. Learn more about our expert-led training programs and tech hotline at 1-877-463-3574. Visit our Resource Center for helpful tips and tricks on fuel pumps, technologies, and more: https://www.delphiautoparts.com/usa/en-US/resource-center.
    Part TypeFuel Pump Module Assembly
    BrandDELPHI
    Package Height8.25
    Package Width8.25
    Package Length15.68
    Weight3.89 PG
    Part CategoryReplacement Parts
    Item GradeStandard Replacement
    Cover Assembly IncludedYes
    Above Cover Harness Assembly IncludedNo
    Above Cover Tube Assembly IncludedNo
    Vapor Pressure SensorNo
    Cover Connector TypeMale
    Fuel Level Vent Valve (Flvv) IncludedYes
    Cover Connector Description1 X 4 Rectangle
    Inlet TypeStrainer
    Strainer IncludedYes
    Strainer LocationInternal
    Flow Rate55 gal/hr
    Package ContentsFuel Pump Module Assy w/FLSA, Tank Seal, Instruction Sheet
    Fuel Pressure RegulatorYes
    Cover MaterialPlastic
    Meets Or Exceeds Original Equipment Manufacture SpecificationsYes
    Gasket/Seal IncludedYes
    Volts12 vDC
    Fuel Filter IncludedYes
    Resistance At Full (Ohms)50

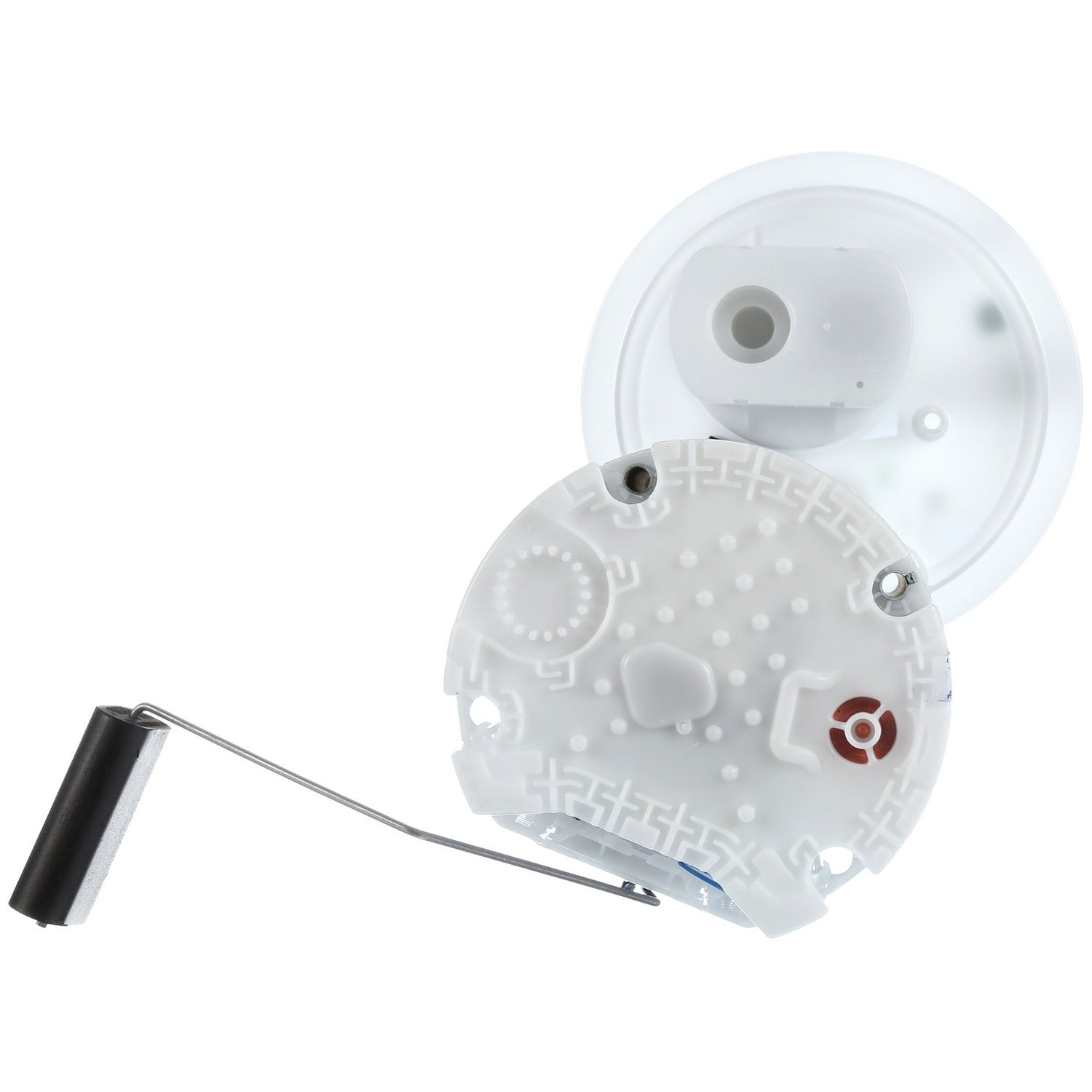

    Fuel Level Sender Assembly IncludedYes
    Outlet Size0.313 in (8 mm)
    Rollover Valve IncludedYes
    Thermistor Low Fuel Indicator IncludedNo
    Outlet Quantity (# Of Ports/Lines)3
    Amp10
    Terminal Type1 x 4 Blade Connector
    Obdii Sensor IncludedNo
    Connector Shape/TypeRectangle/Male
    Resistance At Empty (Ohms)990
    Pump TypeTurbine
    Relief Pressure138 psi
    Number Of Ports On Cover3
    Outlet TypeQuick Connect
    Part FitmentDirect Fit
    System Pressure58 psi
    Locking Ring IncludedNo
    Vendor Part NumberFG1560
    Package Qty1
    Package TypeEA
