Fuel Pump Module Assemblies

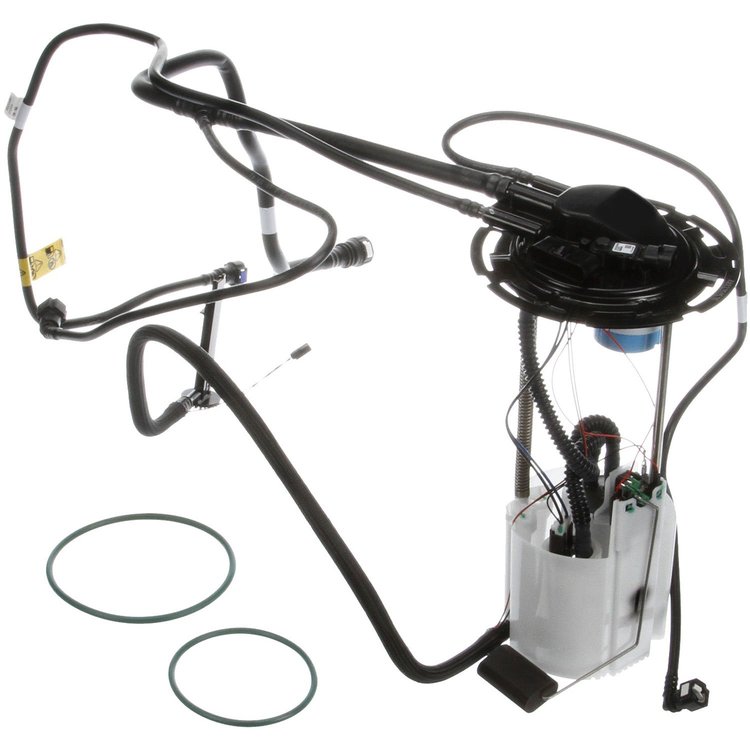

Fuel Pump Module Assembly
Delphi FG1591 Features:
Delphi Technologies is a Tier 1 supplier to the majority of global vehicle manufacturers and has been a manufacturer of dependable fuel pumps and fuel delivery parts for over 80 years. With over 30 OE-proprietary innovations and 150 patents in fuel technologies, Delphi Technologies is regarded as a market leader in North American fuel management with sales coverage at over 95%. Learn more about our expert-led training programs and tech hotline at 1-877-463-3574. Visit our Resource Center for helpful tips and tricks on fuel pumps, technologies, and more: https://www.delphiautoparts.com/usa/en-US/resource-center.Part TypeFuel Pump Module Assembly
BrandDELPHI
Package Height10.0
Package Width16.0
Package Length32.0
Weight6.29 PG
Part CategoryReplacement Parts
Item GradeStandard Replacement
Cover Assembly IncludedYes
Above Cover Harness Assembly IncludedNo
Above Cover Tube Assembly IncludedYes
Vapor Pressure SensorYes
Cover Connector TypeMale
Fuel Level Vent Valve (Flvv) IncludedYes
Cover Connector Description1 X 6 Rectangle
Inlet TypeStrainer
Strainer IncludedYes
Strainer LocationInternal
Flow Rate18 gal/hr
Package ContentsFuel Pump Module Assy w/FLSA, (2) Tank Seals, Lock Ring, Instruction Sheet
Fuel Pressure RegulatorYes
Cover MaterialPlastic
Meets Or Exceeds Original Equipment Manufacture SpecificationsYes
Gasket/Seal IncludedYes
Volts12 vDC
Fuel Filter IncludedYES
Resistance At Full (Ohms)20
Fuel Level Sender Assembly IncludedYes
Outlet Size0.375 in (9.5 mm)
Rollover Valve IncludedYes
Thermistor Low Fuel Indicator IncludedNo
Outlet Quantity (# Of Ports/Lines)3
Amp9

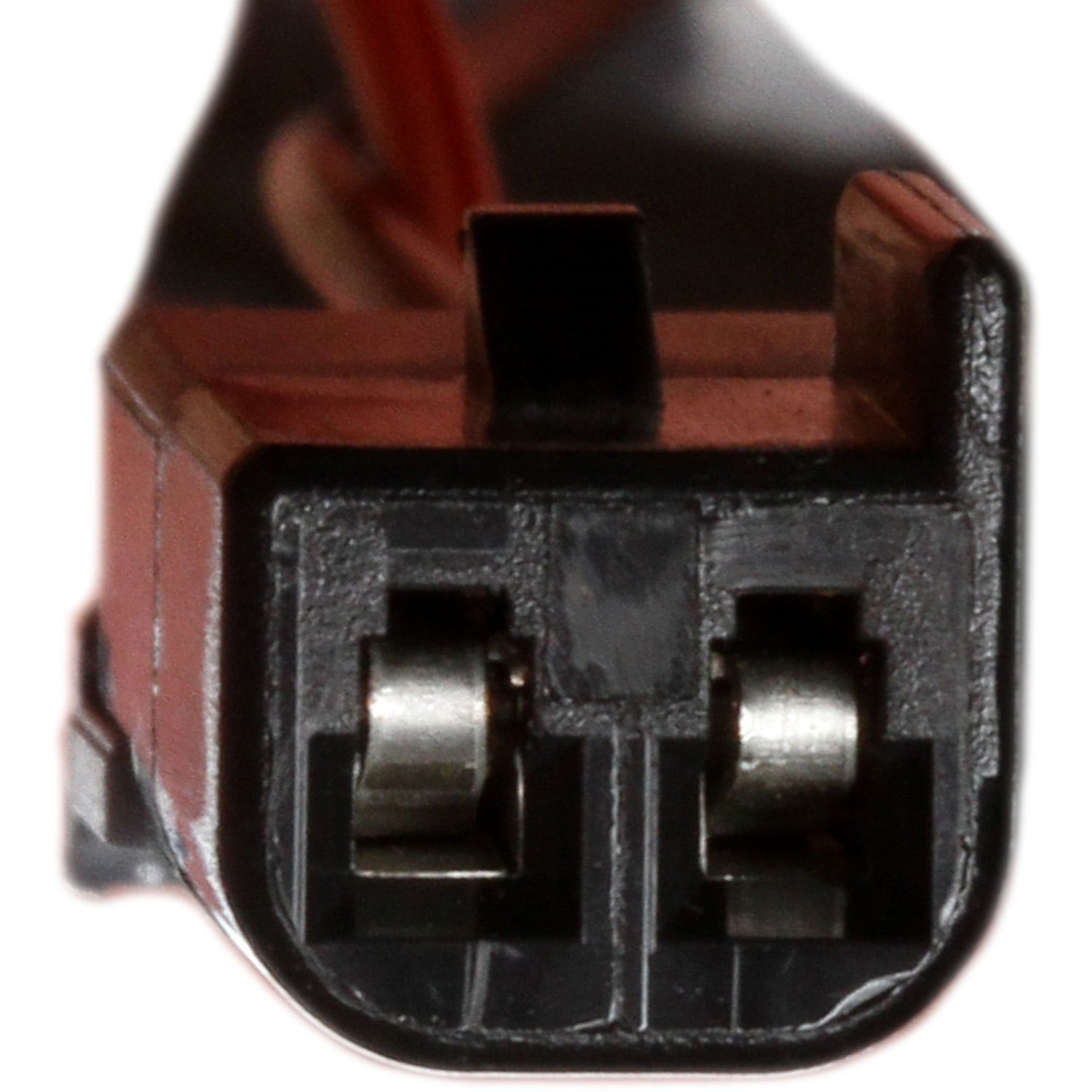

Terminal Type1 x 6 Blade Connector
Obdii Sensor IncludedYes
Connector Shape/TypeOval/Male
Resistance At Empty (Ohms)125
Pump TypeTurbine
Relief Pressure94 psi
Number Of Ports On Cover3
Outlet TypeFemale Quick Connect
Part FitmentDirect Fit
System Pressure58 psi
Locking Ring IncludedYes
Vendor Part NumberFG1591
Package Qty1
Package TypeEA
