DELPHIPART NUMBER: 117-FG1642

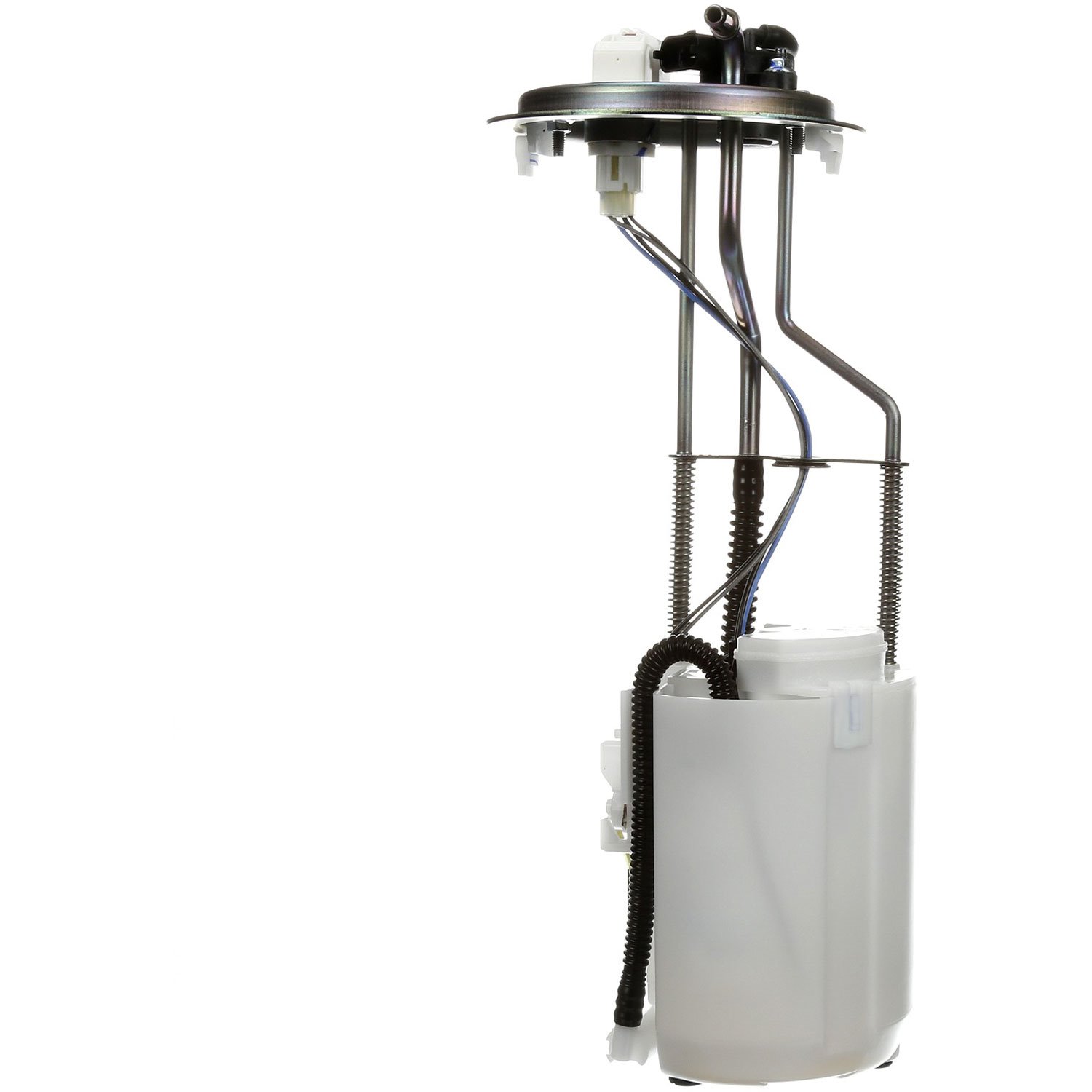

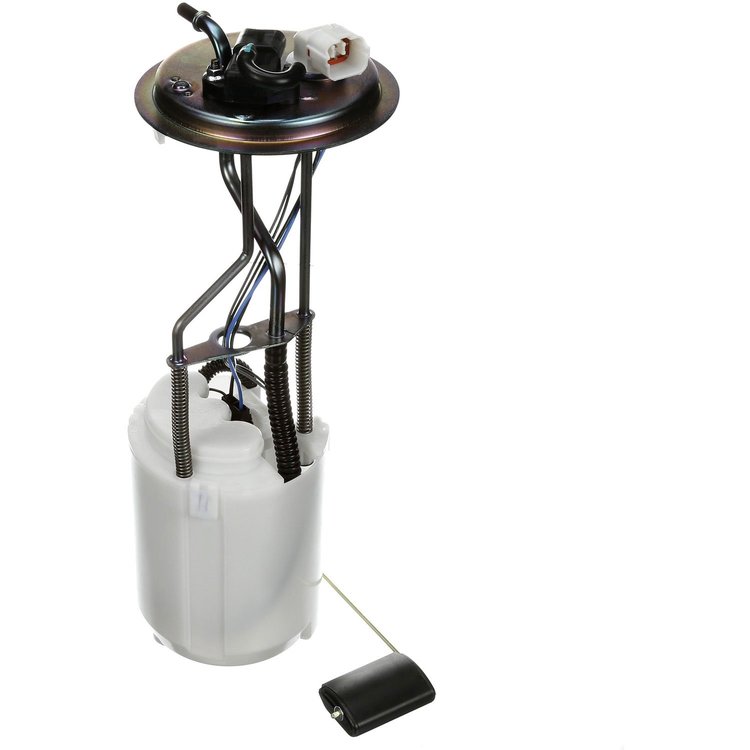

Fuel Pump Module Assembly
$42613
Fuel Pump Module Assemblies
Fuel Pump Module Assembly
Delphi FG1642 Features:
Delphi Technologies is a Tier 1 supplier to the majority of global vehicle manufacturers and has been a manufacturer of dependable fuel pumps and fuel delivery parts for over 80 years. With over 30 OE-proprietary innovations and 150 patents in fuel technologies, Delphi Technologies is regarded as a market leader in North American fuel management with sales coverage at over 95%. Learn more about our expert-led training programs and tech hotline at 1-877-463-3574. Visit our Resource Center for helpful tips and tricks on fuel pumps, technologies, and more: https://www.delphiautoparts.com/usa/en-US/resource-center.Part TypeFuel Pump Module Assembly
BrandDELPHI
Package Height8.25
Package Width8.25
Package Length15.68
Weight3.51 PG
Part CategoryReplacement Parts
Item GradeStandard Replacement
Cover Assembly IncludedYes
Above Cover Harness Assembly IncludedNo
Above Cover Tube Assembly IncludedNo
Vapor Pressure SensorYes
Cover Connector TypeMale
Fuel Level Vent Valve (Flvv) IncludedNo
Cover Connector Description3 X 2 Rectangle
Inlet TypeStrainer
Strainer IncludedYes
Strainer LocationInternal
Flow Rate50 gal/hr
Package ContentsFuel Pump Module Assy w/FLSA, Instruction Sheet
Fuel Pressure RegulatorYes
Cover MaterialMetal
Meets Or Exceeds Original Equipment Manufacture SpecificationsYes
Gasket/Seal IncludedNo
Volts12 vDC
Fuel Filter IncludedYES
Resistance At Full (Ohms)8
Fuel Level Sender Assembly IncludedYes
Outlet Size0.313 in (8 mm)
Rollover Valve IncludedNo
Thermistor Low Fuel Indicator IncludedNo
Outlet Quantity (# Of Ports/Lines)1
Amp10
Terminal Type5 Blade Connector
Obdii Sensor IncludedYes
Connector Shape/TypeRectangle/Male
Resistance At Empty (Ohms)200
Pump TypeTurbine
Relief Pressure95 psi
Number Of Ports On Cover1
Outlet TypeQuick Connect
Part FitmentDirect Fit
System Pressure55 psi
Locking Ring IncludedNo
Vendor Part NumberFG1642
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
