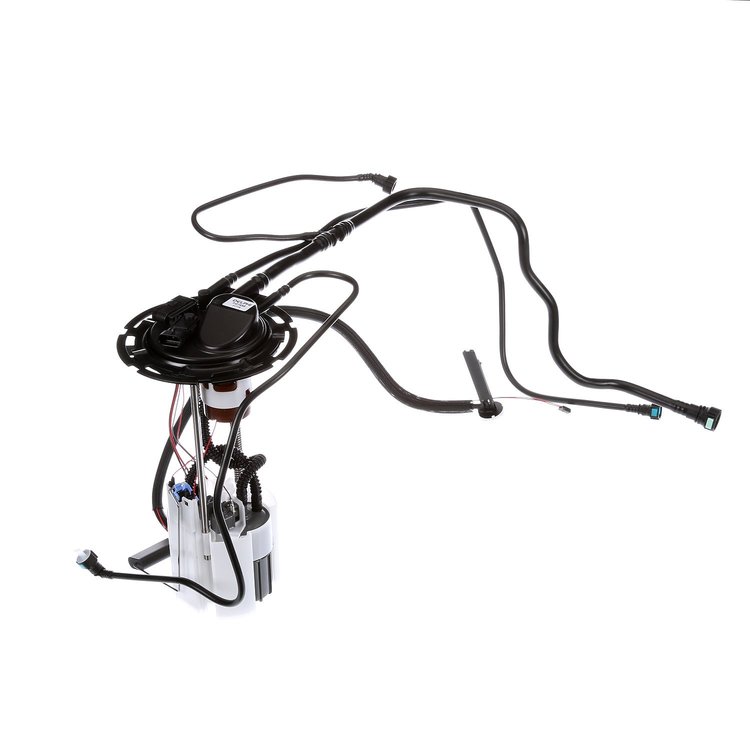

Fuel Pump Module Assembly
Product Discontinued
DELPHIPART NUMBER: 117-FG1658

Fuel Pump Module Assembly

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Fuel Pump Module Assemblies
Fuel Pump Module Assembly

Delphi FG1658 Features:

Delphi Technologies is a Tier 1 supplier to the majority of global vehicle manufacturers and has been a manufacturer of dependable fuel pumps and fuel delivery parts for over 80 years. With over 30 OE-proprietary innovations and 150 patents in fuel technologies, Delphi Technologies is regarded as a market leader in North American fuel management with sales coverage at over 95%. Learn more about our expert-led training programs and tech hotline at 1-877-463-3574. Visit our Resource Center for helpful tips and tricks on fuel pumps, technologies, and more: https://www.delphiautoparts.com/usa/en-US/resource-center.

      Superior Replacement Fuel Pumps

      Delphi Fuel Pumps deliver a leading OE supplier to the automotive industry; our fuel pumps restore fast-pressure performance and system integrity to provide better pumping through less energy. Delphi fuel pumps feature internal springs for increased durability and enhanced stability, while a lower amperage draw places less load on a vehicle's electrical system. Our fuel pumps have gold-filled fuel level sensors for improved corrosion resistance and large volume reservoir to handle low fuel conditions and vehicle cornering.

      Show More

      Other benefits of our fuel pumps include consistent pump flow, an enhanced filtration system for longer pump life, and an OE-service body harness and connector for superior performance, durability, and ease of installation.

      Delphi Interchange Lookup
    Part TypeFuel Pump Module Assembly
    Product LineDelphi Electric Fuel Pumps & Fuel Modules
    BrandDELPHI
    Package Height10.0
    Package Width16.0
    Package Length32.0
    Weight6.27 PG
    Part CategoryReplacement Parts
    Item GradeStandard Replacement
    Cover Assembly IncludedYes
    Above Cover Harness Assembly IncludedNo
    Above Cover Tube Assembly IncludedYes
    Vapor Pressure SensorYes
    Cover Connector TypeMale
    Fuel Level Vent Valve (Flvv) IncludedYes
    Cover Connector Description1 X 6 Rectangle
    Inlet TypeStrainer
    Strainer IncludedYes
    Strainer LocationInternal
    Flow Rate16 gal/hr
    Package ContentsFuel Pump Module Assy w/FLSA, (2) Tank Seals, Lock Ring, Instruction Sheet
    Fuel Pressure RegulatorNo
    Cover MaterialPlastic
    Meets Or Exceeds Original Equipment Manufacture SpecificationsYes
    Gasket/Seal IncludedYes
    Volts12 vDC
    Fuel Filter IncludedYES
    Resistance At Full (Ohms)20
    Fuel Level Sender Assembly IncludedYes
    Outlet Size0.375 in (9.5 mm)
    Rollover Valve IncludedYes
    Thermistor Low Fuel Indicator IncludedNo
    Outlet Quantity (# Of Ports/Lines)3
    Amp7
    Terminal Type1 x 6 Blade Connector
    Obdii Sensor IncludedYes
    Connector Shape/TypeOval/Male
    Resistance At Empty (Ohms)125
    Pump TypeTurbine
    Relief Pressure94 psi
    Number Of Ports On Cover3
    Outlet TypeFemale Quick Connect
    Part FitmentDirect Fit
    System Pressure51 psi
    Locking Ring IncludedNo
    Vendor Part NumberFG1658
    Package Qty1
    Package TypeEA
