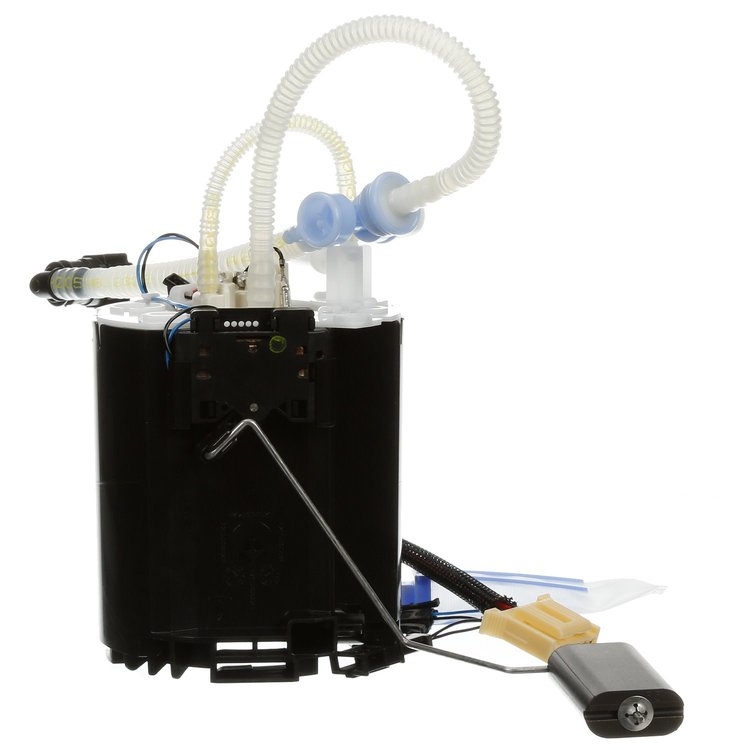

Fuel Pump Module Assembly
InfoVehicle Info Needed
DELPHIPART NUMBER: 117-FG1669

Fuel Pump Module Assembly

$1,01249
ShippingShips on Sep 03, 2026
Lowest PriceLowest Price Guarantee

Fuel Pump Module Assemblies
Fuel Pump Module Assembly

Delphi FG1669 Features:

Delphi Technologies is a Tier 1 supplier to the majority of global vehicle manufacturers and has been a manufacturer of dependable fuel pumps and fuel delivery parts for over 80 years. With over 30 OE-proprietary innovations and 150 patents in fuel technologies, Delphi Technologies is regarded as a market leader in North American fuel management with sales coverage at over 95%. Learn more about our expert-led training programs and tech hotline at 1-877-463-3574. Visit our Resource Center for helpful tips and tricks on fuel pumps, technologies, and more: https://www.delphiautoparts.com/usa/en-US/resource-center.

      Superior Replacement Fuel Pumps

      Delphi Fuel Pumps deliver a leading OE supplier to the automotive industry; our fuel pumps restore fast-pressure performance and system integrity to provide better pumping through less energy. Delphi fuel pumps feature internal springs for increased durability and enhanced stability, while a lower amperage draw places less load on a vehicle's electrical system. Our fuel pumps have gold-filled fuel level sensors for improved corrosion resistance and large volume reservoir to handle low fuel conditions and vehicle cornering.

      Show More

      Other benefits of our fuel pumps include consistent pump flow, an enhanced filtration system for longer pump life, and an OE-service body harness and connector for superior performance, durability, and ease of installation.

      Delphi Interchange Lookup
    Part TypeFuel Pump Module Assembly
    Product LineDelphi Electric Fuel Pumps & Fuel Modules
    BrandDELPHI
    Package Height8.25
    Package Width8.25
    Package Length12.25
    Weight2.49 PG
    Part CategoryReplacement Parts
    Item GradeStandard Replacement
    Cover Assembly IncludedNo
    Vapor Pressure SensorNo
    Inlet TypeStrainer
    Strainer IncludedYes
    Strainer LocationExternal
    Flow Rate95 gal/hr
    Package ContentsFuel Pump Module Assy w/FLSA, Instruction Sheet
    Fuel Pressure RegulatorYes
    Meets Or Exceeds Original Equipment Manufacture SpecificationsYes
    Gasket/Seal IncludedNo
    Volts12 vDC
    Fuel Filter IncludedNo
    Resistance At Full (Ohms)1000
    Fuel Level Sender Assembly IncludedYes
    Outlet Size0.375 in (9.5 mm)
    Thermistor Low Fuel Indicator IncludedNo
    Outlet Quantity (# Of Ports/Lines)1
    Amp10
    Terminal Type1 x 6 Blade Connector
    Connector Shape/TypeRectangle/Female
    Resistance At Empty (Ohms)50
    Pump TypeTurbine
    Relief Pressure95 psi
    Outlet TypeFemale Quick Connect
    Part FitmentDirect Fit
    System Pressure65 psi
    Locking Ring IncludedNo
    Vendor Part NumberFG1669
    Package Qty1
    Package TypeEA
