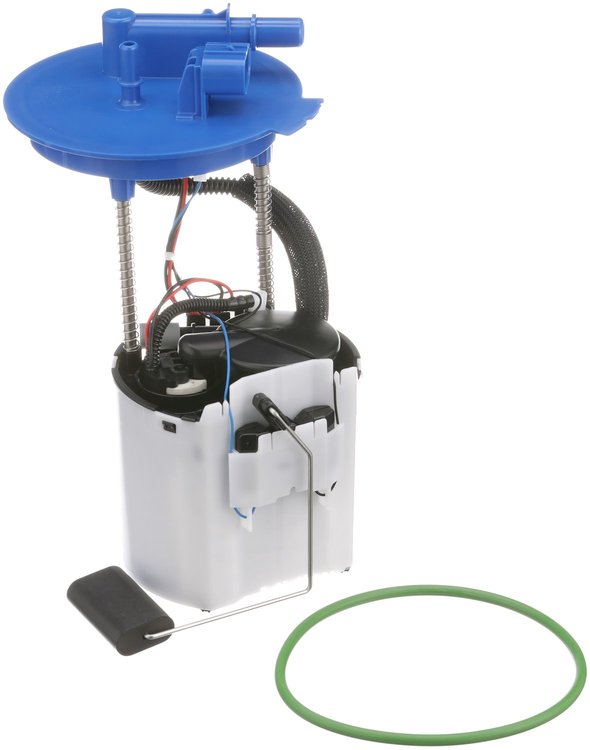

Fuel Pump Module Assembly
InfoVehicle Info Needed
DELPHIPART NUMBER: 117-FG2246

Fuel Pump Module Assembly

$19204
ShippingShips on 11/02/2026
Lowest PriceLowest Price Guarantee

Fuel Pump Module Assembly
  • 2018-2021 Buick Enclave, Chevy Traverse, 2017-2021 Cadillac XT5, 2020-2021 Cadillac XT6, 2019-2021 Chevy Blazer, 2018-2023 GMC Acadia
  • 28 GPH Flow Rating
  • 12 A Current Draw
  • Sold Individually

    The fuel pump module assembly is a direct-fit replacement for 2017-2023 Buick Enclave, Cadillac XT5, XT6, Chevy Blazer, Traverse, GMC Acadia. It has a female rectangle connector with 4 blade terminals. It runs on 12 volts DC.

    Delphi FG2246 Fuel Pump Module Assembly Features:

    • Fits 2018-2021 Buick Enclave, Chevy Traverse, 2017-2021 Cadillac XT5, 2020-2021 Cadillac XT6, 2019-2021 Chevy Blazer, 2018-2023 GMC Acadia
    • Empty float height and float retention matches OE specifications and supports correct gas gauge reading.
    • Lower amperage draws less load on vehicle's electrical system.
    • Always be sure to check and clean fuel tank to avoid unnecessary returns.
    • A gasket or seal is included.
    • A fuel filter is included.
    • The electrical connector is female and rectangle in shape.
  • Part TypeFuel Pump Module Assembly
    BrandDELPHI
    Package Height8.4
    Package Width8.5
    Package Length12.6
    Weight3.3 PG
    Part CategoryReplacement Parts
    Package ContentsFuel Pump Module Assembly w/Float Arm, Seals, Instruction Sheet
    Voltage12
    Terminal TypeBlade
    QuantitySold Individually
    Outlet TypeQuick Connect
    Part FitmentDirect Fit
    Fuel Filter IncludedYes
    Inlet TypeStrainer
    Strainer IncludedYes
    Pump TypeElectric
    Vendor Part NumberFG2246
    Package Qty1
    Package TypeEA
    Some parts are not legal for use in California or other states with similar laws / regulations
