Vehicle Info NeededDELPHIPART NUMBER: 117-FG2712

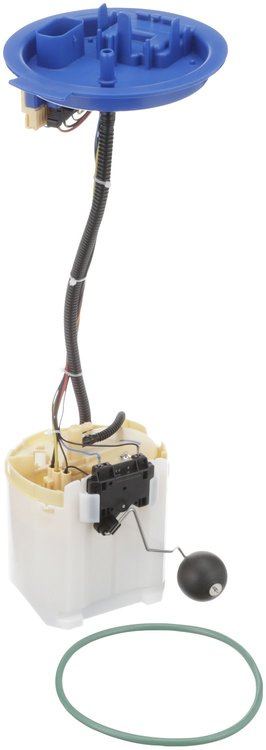

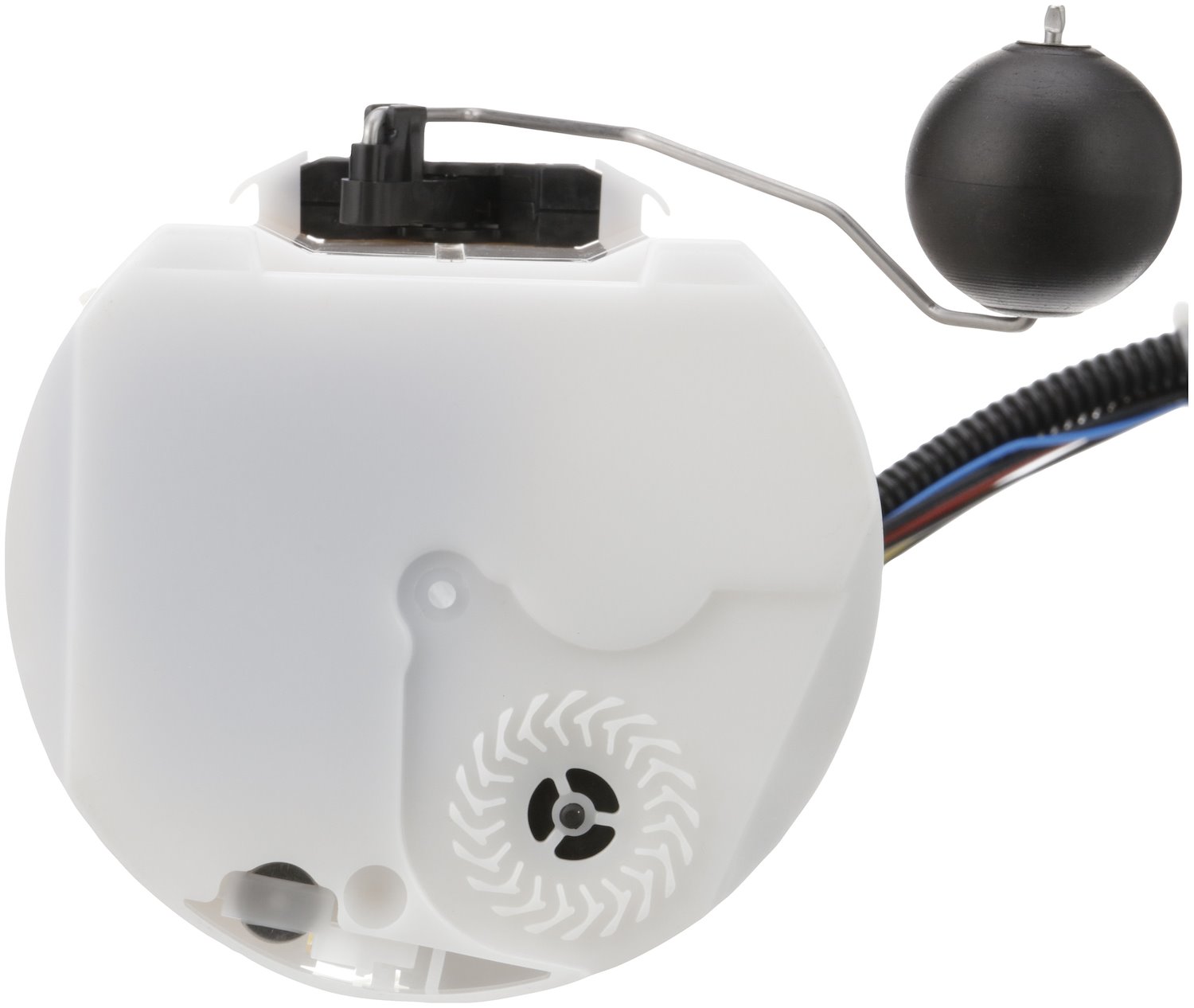

Fuel Pump Module Assembly
$45454
Ships on 11/02/2026
Lowest Price GuaranteeFuel Pump Module Assembly2018-2019 BMW 740e xDrive, 2018-2023 BMW 530e, 530e xDrive, 2020-2022 BMW 745e xDrive Female Oval Connector 16 GPH Flow Rating 8 A Current Draw Plastic Housing Sold Individually
The fuel pump module assembly is a direct-fit replacement for 2018-2019 BMW 740e xDrive, 2018-2023 BMW 530e, 530e xDrive and other models. It has a female oval connector with 8 blade terminals. It runs on 12 volts DC.
Delphi FG2712 Fuel Pump Module Assembly Features:
- Fits 2018-2019 BMW 740e xDrive, 2018-2023 BMW 530e, 530e xDrive, 2020-2022 BMW 745e xDrive
- Empty float height and float retention matches OE specifications and supports correct gas gauge reading.
- Lower amperage draws less load on vehicle's electrical system.
- Always be sure to check and clean fuel tank to avoid unnecessary returns.
- A gasket or seal is included.
- A fuel filter is included.
- The electrical connector is female and oval in shape.
Part TypeFuel Pump Module Assembly
BrandDELPHI
Package Height8.25
Package Width8.25
Package Length12.25
Weight2.1 PG
Part CategoryReplacement Parts
Package ContentsFuel Pump Module Assembly w/Float Arm, Seal, Splices, Wire Harness, Instruction Sheet
Voltage12
Terminal TypeBlade
QuantitySold Individually
Outlet TypeQuick Connect
Part FitmentDirect Fit
Fuel Filter IncludedYes
Inlet TypeStrainer
Strainer IncludedYes
Pump TypeElectric
Vendor Part NumberFG2712
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
