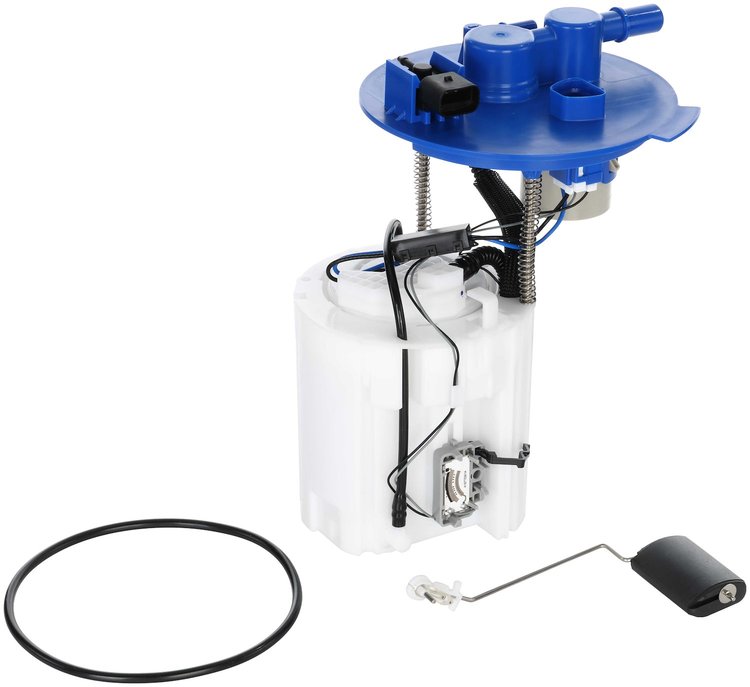

FUEL PUMP MODULE ASSEMBLY
InfoVehicle Info Needed
DELPHIPART NUMBER: 117-FG2775

FUEL PUMP MODULE ASSEMBLY

$36249
ShippingShips on 11/23/2026
Lowest PriceLowest Price Guarantee

Fuel Pump Module Assembly
  • 2020-2021 Kia Rio, 2019-2024 Kia Forte, 2017-2020 Hyundai Elantra, 2020-2022 Hyundai Accent
  • Female Trapezoid Connector
  • 30 GPH Flow Rating
  • 7 A Current Draw
  • Plastic Housing
  • Sold Individually

    The fuel pump module assembly fits 2020-2021 Kia Rio, 2019-2024 Kia Forte, 2017-2020 Hyundai Elantra and other models. It has a female trapezoid connector with 4 blade terminals. It runs on 12 volts DC.

    Delphi FG2775 Fuel Pump Module Assembly Features:

    • Fits 2020-2021 Kia Rio, 2019-2024 Kia Forte, 2017-2020 Hyundai Elantra, 2020-2022 Hyundai Accent
    • Empty float height and float retention matches OE specifications and supports correct gas gauge reading.
    • Lower amperage draws less load on vehicle's electrical system.
    • Always be sure to check and clean fuel tank to avoid unnecessary returns.
    • A gasket or seal is included.
    • A fuel filter is included.

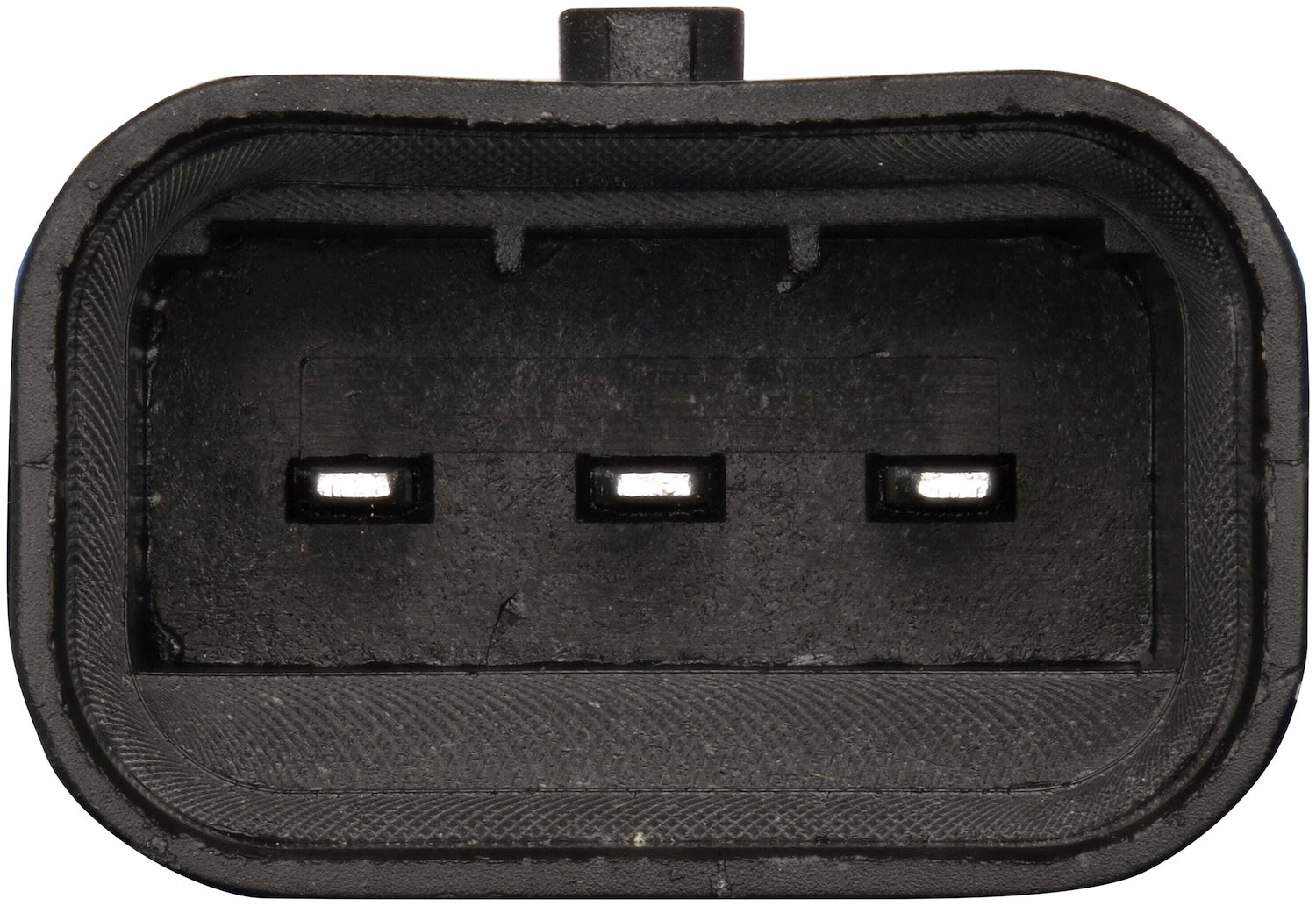

    • The electrical connector is female and trapezoid in shape.
  • Part TypeFuel Pump Module Assembly
    BrandDELPHI
    Package Height8.4
    Package Width8.5
    Package Length12.7
    Weight4.13 PG
    Part CategoryReplacement Parts
    Voltage12
    Terminal TypeBlade
    QuantitySold Individually
    Outlet TypeQuick Connect
    Part FitmentDirect Fit
    Fuel Filter IncludedYes
    Inlet TypeStrainer
    Strainer IncludedYes
    Pump TypeElectric
    Vendor Part NumberFG2775
    Package Qty1
    Package TypeEA
