Vehicle Info NeededDELPHIPART NUMBER: 117-FT4015

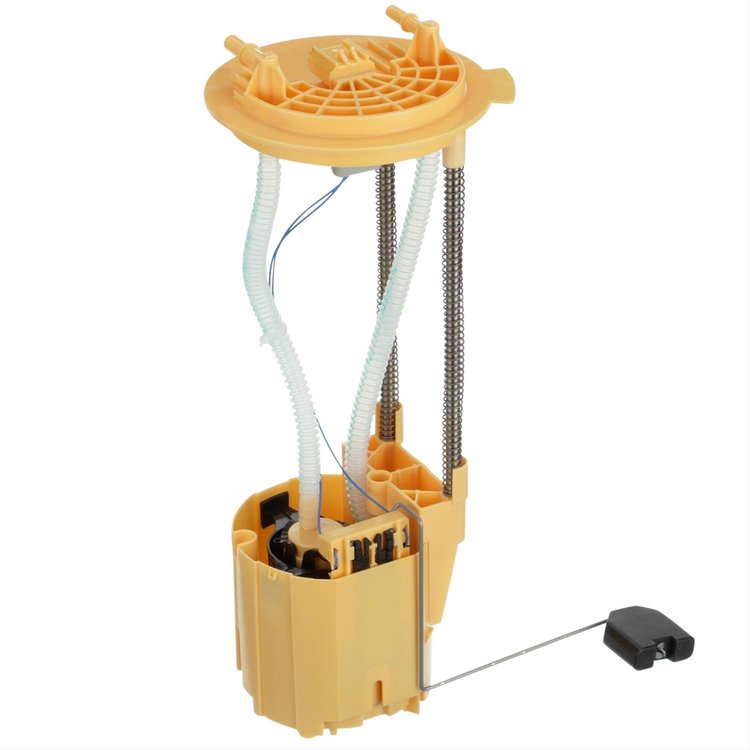

Fuel Pump Hanger/Sender Assembly for 2005-2006 Jeep Liberty 2.8L Diesel
$14204
Ships on 11/02/2026
Lowest Price GuaranteeFuel Pump Hanger/Sender Assemblies
Fuel Pump Hanger/Sender Assembly2005-2006 Jeep Liberty with 2.8L Diesel Engine
Delphi FT4015 Fuel Pump Hanger/Sender Assembly Features:
- Precise replacement of OE pump
- Built to original equipment (OE) specifications
- Exact fit installation
OEM-Quality Fuel Hanger and Senders
Delphi's OE-integrated fuel hanger/sender is a complete repair in a box: an OE pump, a fuel level sensor, and fuel/vapor pipes and valves. Our fuel hanger/sender allows for a single opening for a pump, fuel level indicator, and tank vent features to satisfy any engine flow and pressure requirements. Delphi's fuel hanger/sender includes a rollover valve for improved safety and metal tubes routed to avoid contact with the tank or vehicle underbody to eliminate noise and vibration. Each fuel/hanger sender provides positive and continual electrical connectivity with a unique ceramic card resistor assembly.
Part TypeFuel Transfer Pump
Product LineDelphi Fuel Hanger/Senders
BrandDELPHI
Package Height8.25
Package Width8.25
Package Length21.62
Weight2.42 PG
Part CategoryReplacement Parts
Item GradeStandard Replacement
Outlet Size0.375 in (9.5 mm)
Terminal Type1 x 4 Rectangle
QuantitySold individually
Resistance At Empty (Ohms)220
Strainer IncludedNo
Fuel TypeDiesel

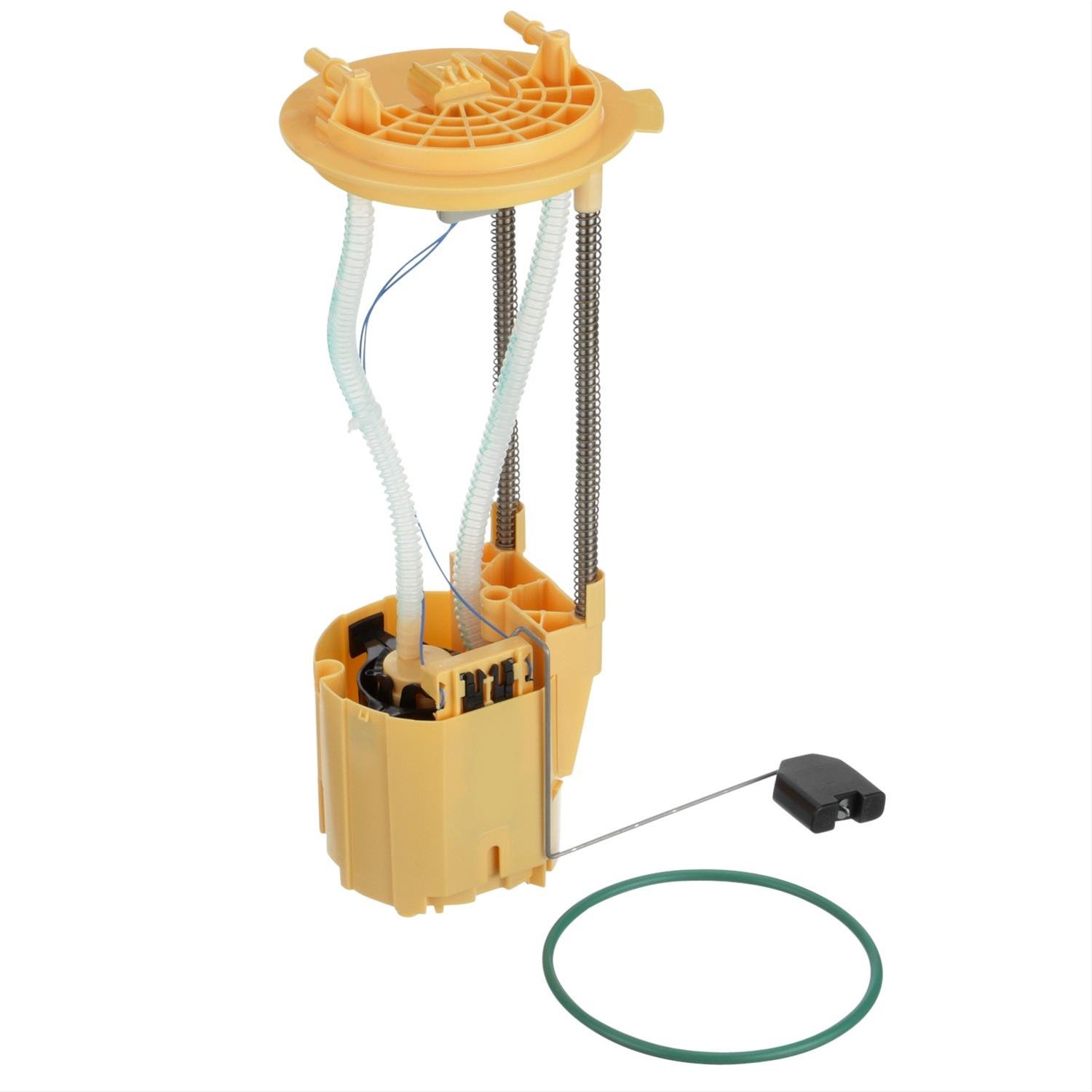

Package ContentsFuel Transfer Unit w/FLSA, Tank Seal, Instruction Sheet
Gasket/Seal IncludedYes
Outlet TypeQuick Connect
Part FitmentDirect Fit
Resistance At Full (Ohms)20
Vendor Part NumberFT4015
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
