Lowest Price GuaranteeFuel Transfer Pump2012-2018 Mercedes-Benz E400, CLS400, E350, C350, CLS550, E550, C300, GLK350 Female Oval Connector 0.31 in. Inlet Outside Diameter 0.31 in. Outlet Outside Diameter Plastic Housing Sold Individually

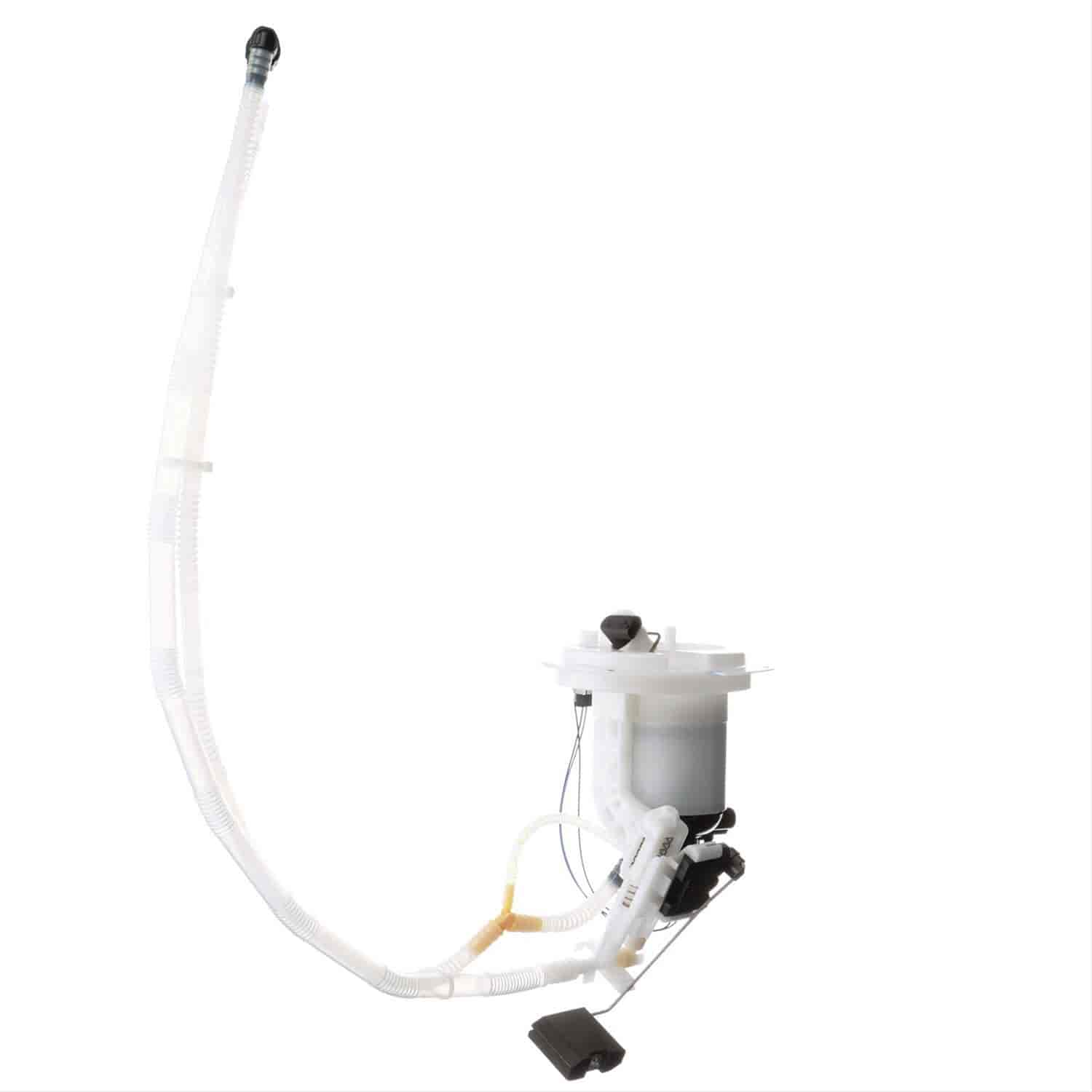

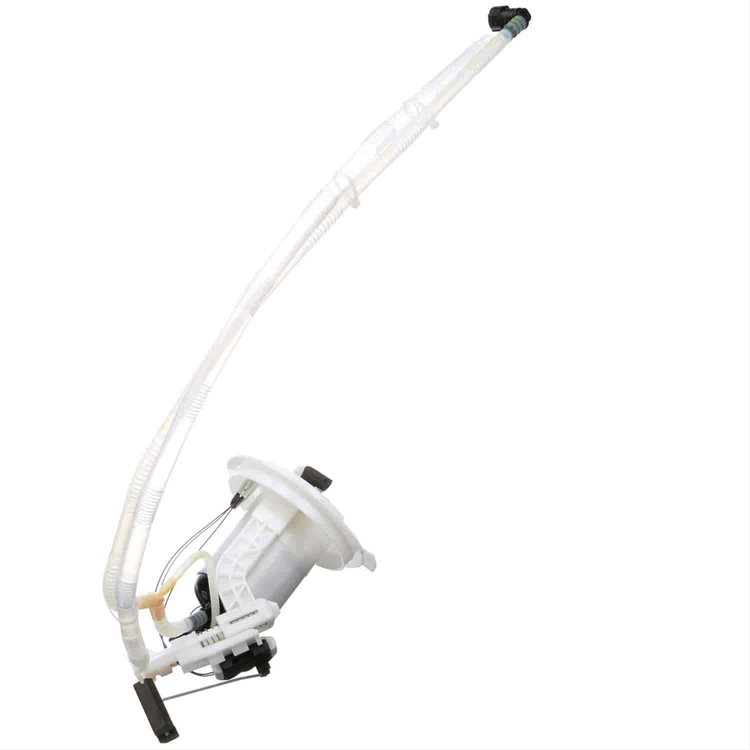

The left/driver side fuel transfer pump is a direct-fit replacement for 2012-2018 Mercedes-Benz E400, CLS400, E350, C350, CLS550, E550, C300, GLK350. It has a female oval connector with 2 blade terminals.
Delphi FT4022 Fuel Transfer Pump Features:
- Fits 2012-2018 Mercedes-Benz E400, CLS400, E350, C350, CLS550, E550, C300, GLK350
- Meets or exceeds OE resistance requirements.
- Transfers fuel within the tank.
- Does not include primary fuel pump.
- The electrical connector is female and oval in shape.
- Designed for the left/driver side position only; the opposite position uses its own part number.
Part TypeFuel Transfer Pump
BrandDELPHI
Package Height8.25
Package Width11.62
Package Length16.62
Weight2.52 PG
Part CategoryReplacement Parts
Item GradeStandard Replacement
Outlet Size0.313 in (8 mm)
Vapor Pressure SensorNo
Outlet Quantity (# Of Ports/Lines)1
Terminal Type2 Blade Connector
QuantitySold Individually
Connector Shape/TypeRectangle/Male
Resistance At Empty (Ohms)990
Strainer IncludedNo
Fuel TypeGasoline
Package ContentsFuel Transfer Unit w/FLSA, Instruction Sheet
Fuel Pressure RegulatorYes
Gasket/Seal IncludedNo
Outlet TypeQuick Connect
Part FitmentDirect Fit
Resistance At Full (Ohms)51
Vendor Part NumberFT4022
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
