Fuel Pump Hanger/Sender Assemblies

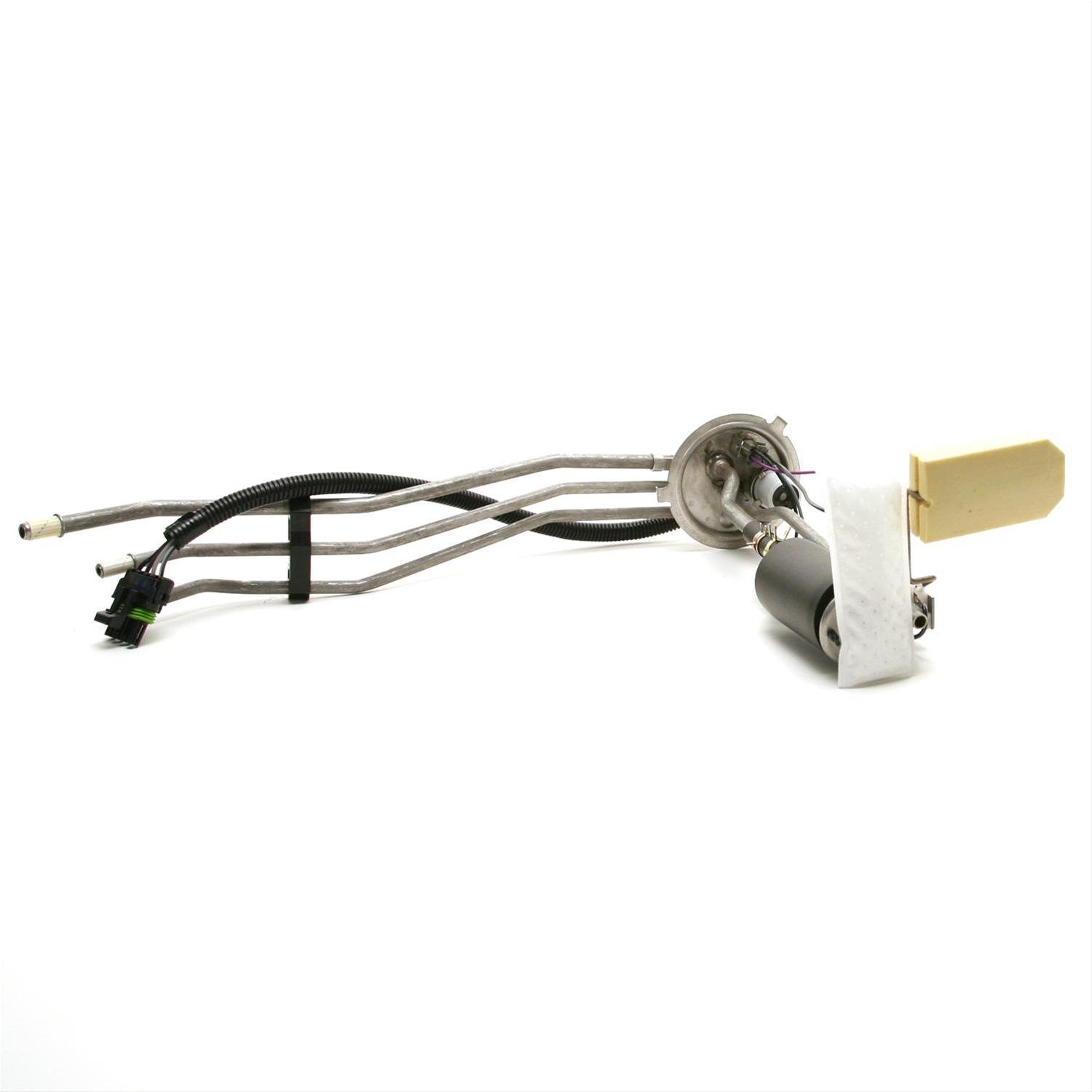

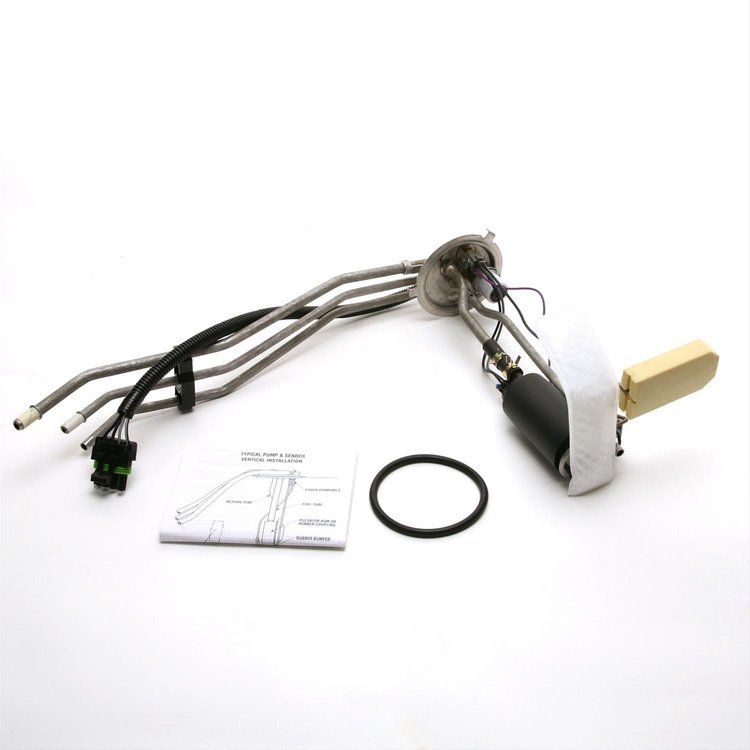

Fuel Pump Hanger/Sender Assembly
Delphi HP10012 Features:
Delphi Technologies is a Tier 1 supplier to the majority of global vehicle manufacturers and has been a manufacturer of dependable fuel pumps and fuel delivery parts for over 80 years. With over 30 OE-proprietary innovations and 150 patents in fuel technologies, Delphi Technologies is regarded as a market leader in North American fuel management with sales coverage at over 95%. Learn more about our expert-led training programs and tech hotline at 1-877-463-3574. Visit our Resource Center for helpful tips and tricks on fuel pumps, technologies, and more: https://www.delphiautoparts.com/usa/en-US/resource-center.OEM-Quality Fuel Hanger and Senders
Delphi's OE-integrated fuel hanger/sender is a complete repair in a box: an OE pump, a fuel level sensor, and fuel/vapor pipes and valves. Our fuel hanger/sender allows for a single opening for a pump, fuel level indicator, and tank vent features to satisfy any engine flow and pressure requirements. Delphi's fuel hanger/sender includes a rollover valve for improved safety and metal tubes routed to avoid contact with the tank or vehicle underbody to eliminate noise and vibration. Each fuel/hanger sender provides positive and continual electrical connectivity with a unique ceramic card resistor assembly.
Part TypeFuel Pump and Sender Assembly
Product LineDelphi Fuel Hanger/Senders
BrandDELPHI
Package Height5.25
Package Width15.625
Package Length16.375
Weight3.11 PG
Part CategoryReplacement Parts
Item GradeStandard Replacement
Outlet Size0.375 in (9.5 mm)
Outlet Quantity (# Of Ports/Lines)3
Amp5
Terminal Type1 x 4 Harness Connector
Connector Shape/TypeOval/Female
Inlet TypeStrainer
Strainer IncludedYes
Pump TypeTurbine
Strainer LocationExternal
Flow Rate30 gal/hr
Package ContentsFuel Pump and Sender Assy w/FLSA, Seal, Lock Ring, Instruction Sheet
Relief Pressure80-109 psi
Meets Or Exceeds Original Equipment Manufacture SpecificationsYes
Gasket/Seal IncludedYes
Outlet TypeQuick Connect
Part FitmentDirect Fit
Volts12 vDC
System Pressure44 psi
Resistance At Full (Ohms)90
Vendor Part NumberHP10012
Package Qty1
Package TypeEA
